Functional check in idle
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
During a functional check while idling, the air ratios are checked on the basis of their behavior under different marginal conditions.
When idling, the air ratios are measured in a range from 1.5 to 8.
The following marginal conditions affect the air ratios:
- Exhaust-gas recirculation:
When exhaust-gas recirculation is active, the proportion of fresh air during combustion is lower, leading to a lower air ratio.
The exhaust-gas recirculation can be switched off for the purpose of the test, e.g. be entering a long continuous idle phase.
- Activating consumers:
Activating consumers increases the fuel quantity during combustion, leading to a lower air ratio.

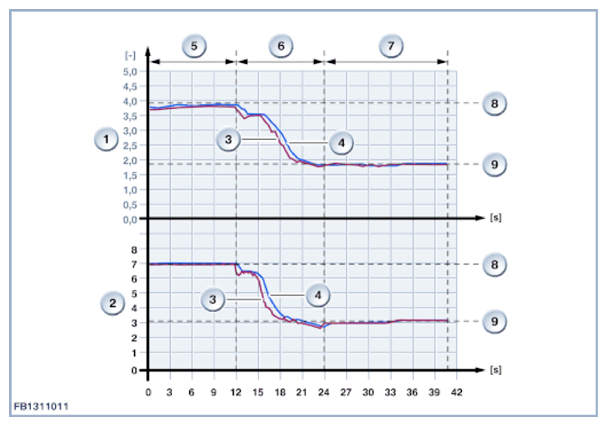

The following graphic shows how marginal conditions can affect the air ratios when idling.
| Index | Explanation |
|---|---|
| 1 | Air ratios when exhaust-gas recirculation is active. |
| 2 | Air ratios when exhaust-gas recirculation is switched off. |
| 3 | Signal from oxygen sensor upstream of oxidation catalytic converter. |
| 4 | Signal from oxygen sensor downstream of oxidation catalytic converter. |
| 5 | No consumers activated. |
| 6 | Successive activation of consumers. |
| 7 | Consumer activated. |
| 8 | Air ratios level during idle with no consumers activated. |
| 9 | Air ratios level during idle with consumers activated. |
