Structure and inner electrical connection

WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

The servo-motor employed to adjust the position of the throttle valve is a DC motor. The throttle-valve sensor is a Hall-effect device. The hall effect sensor determines the revolutions of the servomotor. This provides the basis for calculating the position of the throttle valve.

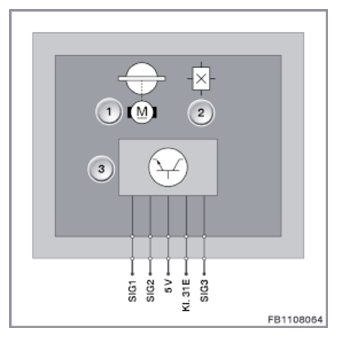

Fig 1: Throttle Actuator - Circuit Diagram
G09910286Courtesy of BMW OF NORTH AMERICA, INC.
Item Explanation
1 Throttle-valve actuator with throttle valve
2 Hall effect sensor
3 Electronic component with evaluation electronics
PIN REFERENCE

Pin Explanation
SIG1 Positive connection for controlling activation of throttle-valve actuator
SIG2 Negative connection for controlling activation of the throttle-valve actuator
5 V Voltage supply for throttle valve sensor
Terminal 31E Terminal 31E, electronics earth, throttle valve sensor
SIG3 Throttle-valve sensor signal
