Structure and inner electrical connection

WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.

The hall effect sensors are non-contact sensors. For safety reasons, the hall effect sensors supply an opposing signal (redundancy). The second sensor supplies the mirrored voltage values at all operating points.

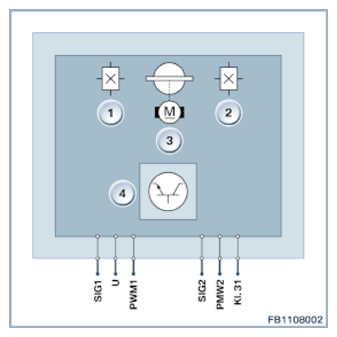

Fig 1: Electromotive Throttle Actuator - Circuit Diagram
G09910289Courtesy of BMW OF NORTH AMERICA, INC.
Item Explanation
1 Hall effect sensor 1
2 Hall effect sensor 2
3 Electromotive throttle actuator with throttle valve
4 Electronic component with evaluation electronics
PIN REFERENCE

Pin Explanation
SIG 1 Hall effect sensor signal 1
U Voltage supply for hall effect sensors
PWM 1 Activation, electromotive throttle actuator
SIG 2 Hall effect sensor signal 2
PWM 2 Activation, electromotive throttle actuator
Kl. 31 Terminal 31, ground connection (DME)
