52 26 005 Removing And Installing/Replacing Rear Seat (Through-Loading System)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Unclip rear seat on left and right and raise.

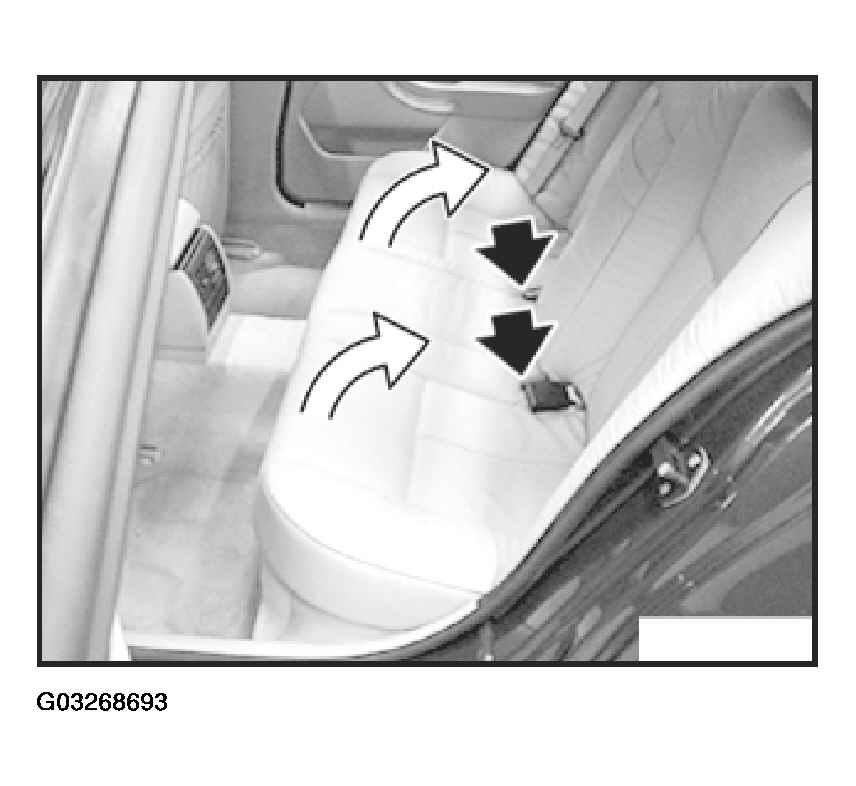

Fig 1: Raising Rear Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Pull seat forwards slightly and simultaneously tighten top strap a little.

Release screw of left belt buckle and central top strap. Refer to 72 11 103 Removing and installing / replacing rear center safety belt .

Remove rear seat towards front.

Installation:

Insert seatbelt locks in recesses in rear seat.
