61 35 175 Removing and installing/replacing rain sensor

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Up to 09/2001:2

Version with rain sensor.

Necessary preliminary tasks:

Remove inside rearview mirror.

Pull out retaining clips (2) in each case in direction of arrow and remove.

Unclip rain sensor (3) at bottom in direction of arrow.

Disconnect plug connection (1) and remove rain sensor (3).

Installation:

Do not damage optical element below rain sensor (3).

If necessary, initialize rain sensor.

Fig 1: Pulling Out Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.

From 09/2001:

Version with rain/light sensor.

Expand two-part mirror base cover (1) by pressing from below and detach.

Feed out two-part mirror base cover (1) and remove.

Fig 2: Removing Mirror Base Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (3).

Press locks (1) in direction of arrow and remove rain/light sensor (2) towards bottom.

Installation:

Do not damage optical element below rain/light sensor (2).

If necessary, initialize rain/light sensor.

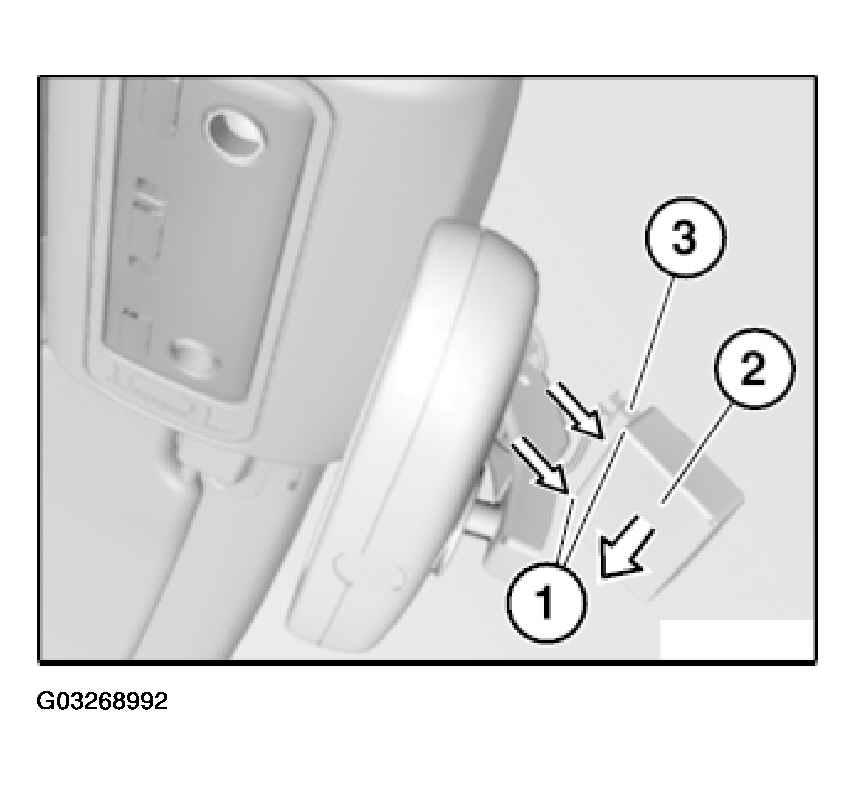

Fig 3: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
