Special tools required:

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

61 4 320

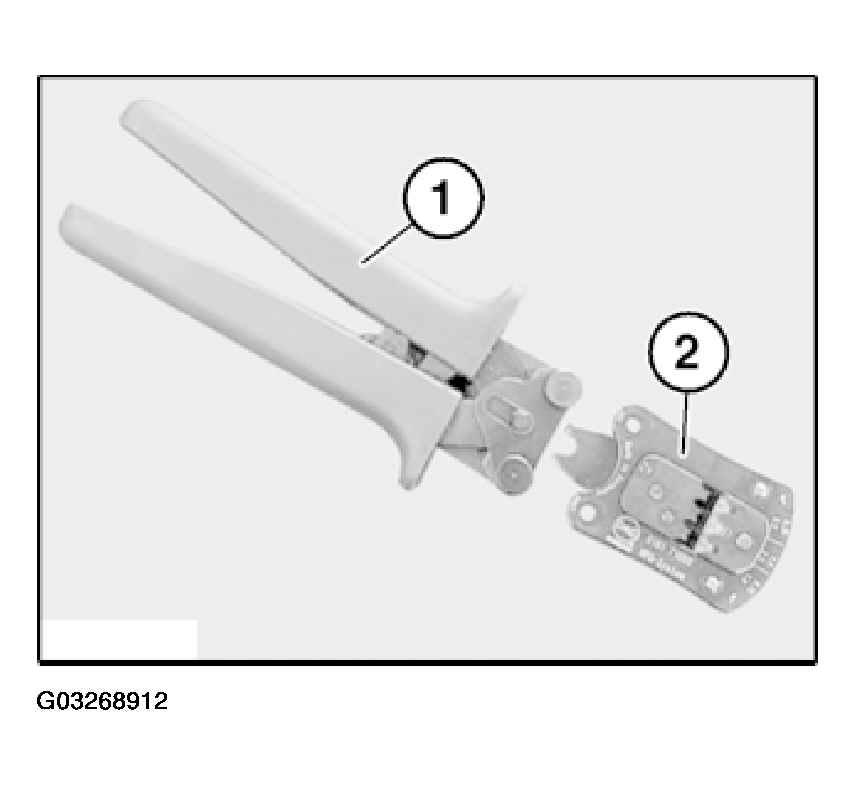

To crimp MPQ contacts, use pliers 61 4 321 (1) in conjunction with crimping head 61 4 325 (2) from crimping set 61 4 320.

NOTE: Pliers (1) open automatically as far as they will go when handles are pressed together.

Fig 1: Identifying Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

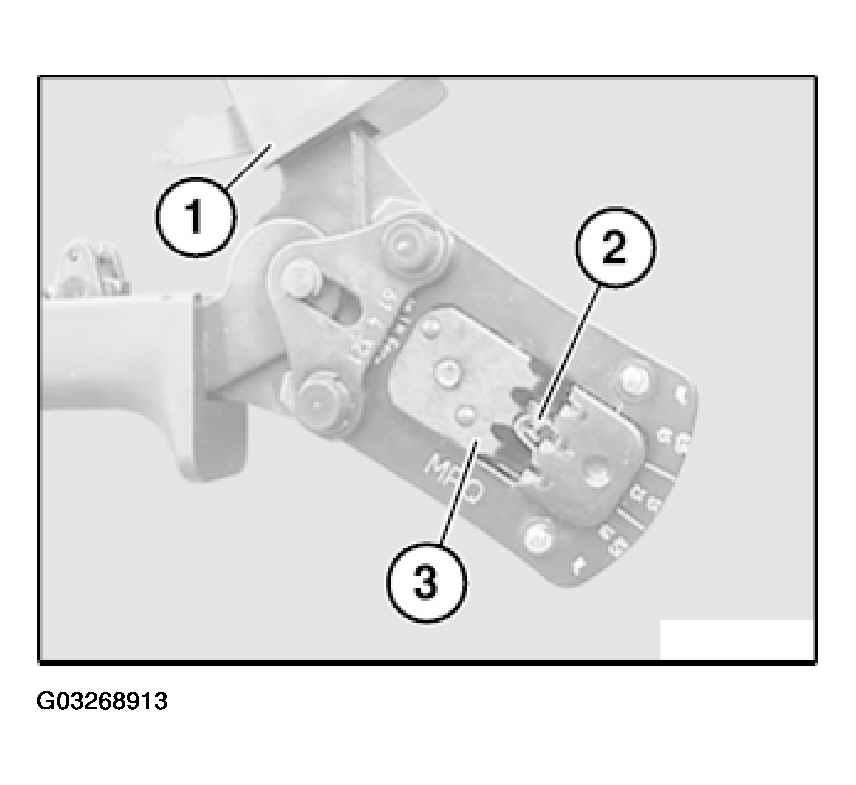

Open pliers (1).

NOTE: Place contact (2) with utmost care in designated nest (observe cable cross-section) in crimping head (3). Make sure it is exactly positioned.
Place MPQ contact (2) in crimping head (3).

Close pliers (1) one notch.

Fig 2: Identifying Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

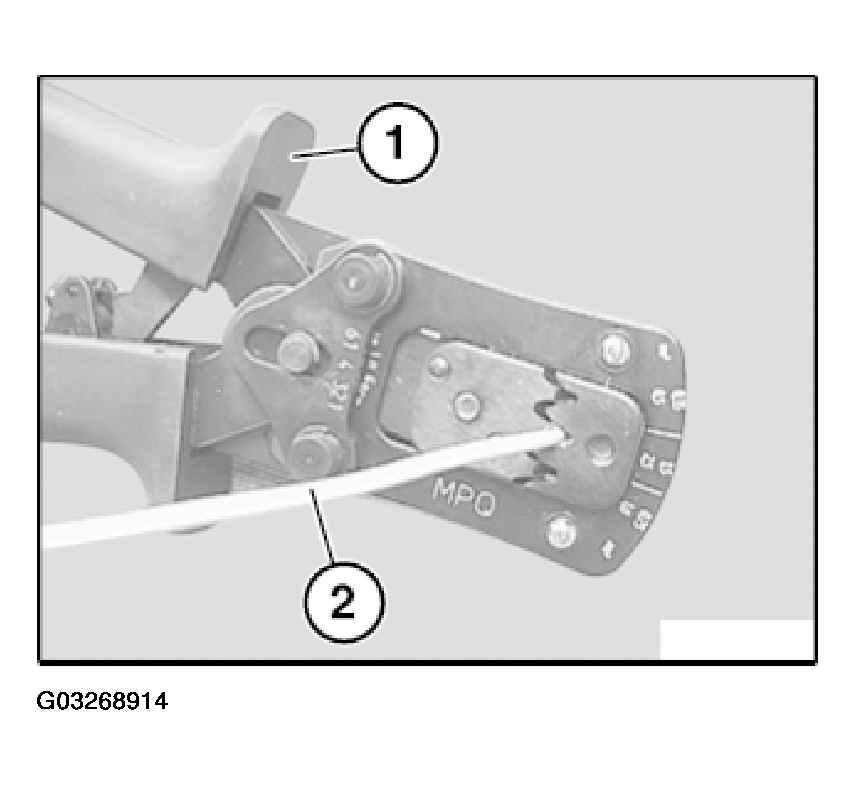

NOTE: Follow procedure for cutting and stripping insulation from cables.

Insert stripped cable (2).

Close pliers (1) fully.

Open pliers (1) and remove cable (2).

NOTE: Check contact for correct crimping.

Fig 3: Identifying Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.
