61 11... Replacing wiring harness at front left

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove front bumper trim.

Remove wheel arch cover at front left.

If necessary, remove horn (anti-theft device).

Remove driver's seat.

Disconnect battery negative lead.

Remove lower left trim from instrument panel.

Remove footwell side trim panel on A-pillar on left.

Remove adapter plate.

Remove storage tray.

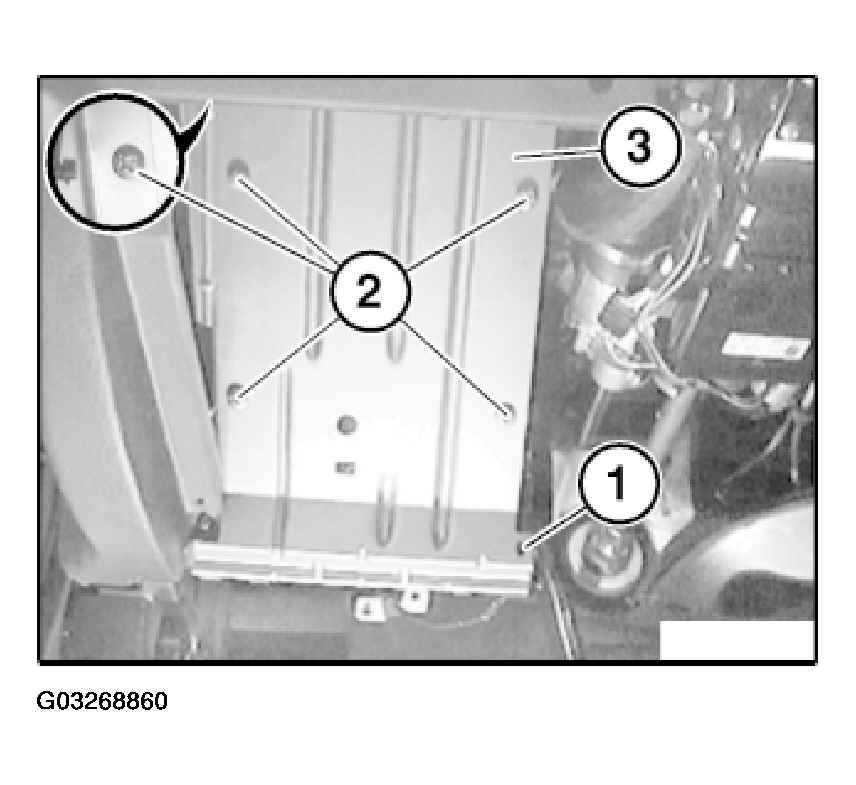

Release cable strap (1).

Release screws (2) and remove plate (3).

Fig 1: Releasing Cable Strap

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Under not circumstances bend carpet.

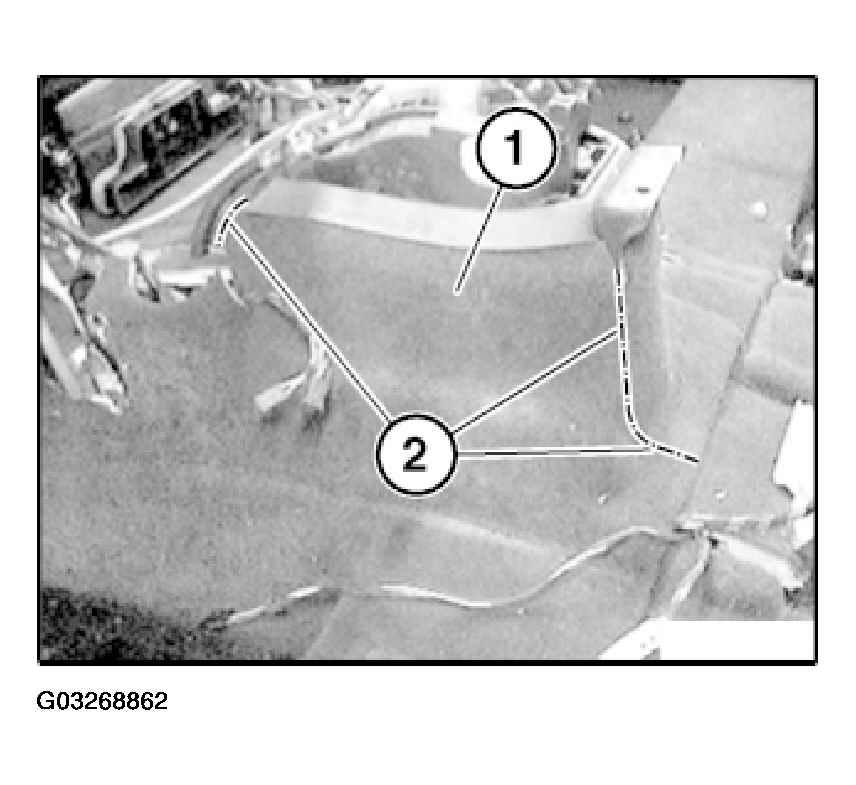

Cut carpet (1) as illustrated as closely as possible to A/C unit.

Installation:

Join cutting lines at marked points (2) with cable ties (short) from repair kit.

Fig 2: Identifying Join Cutting Lines At Marked Points With Cable Ties (Short) From Repair Kit

Courtesy of BMW OF NORTH AMERICA, INC.

Cut carpet (1) as illustrated and remove from car.

Installation:

Join cutting lines at marked points (2) with cable ties (short) from repair kit.

Fig 3: Identifying Join Cutting Lines At Marked Points

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Vehicles with tire pressure control (RDC):
Unwind operational RDC lead from wiring harness.
Replace faulty RDC lead separately (refer to ).

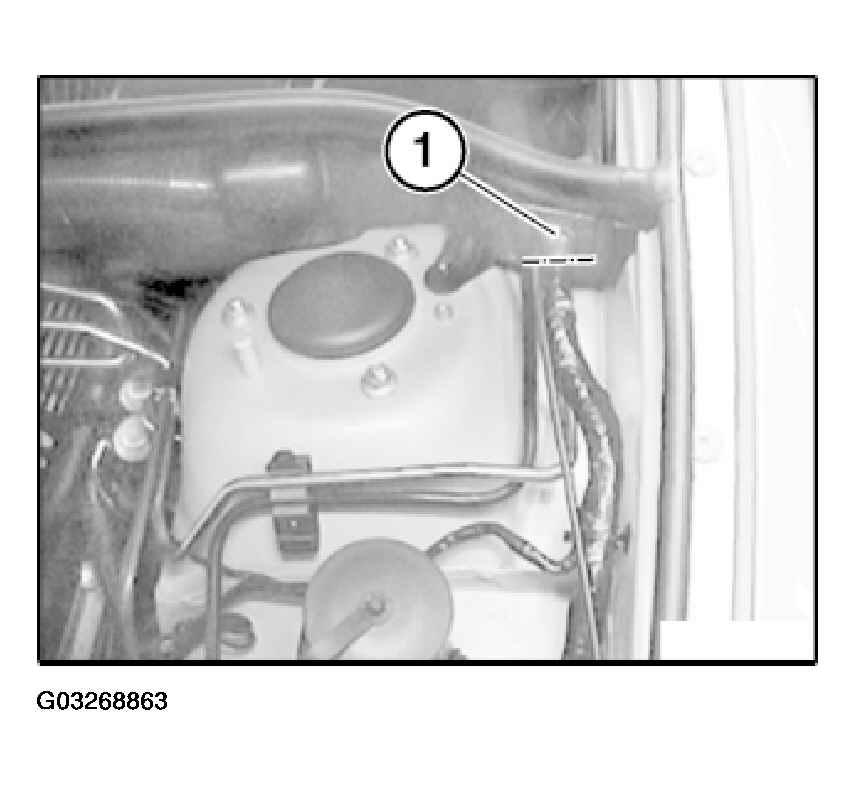

Cut through wiring harness (1) approx. 10 cm before splash shield and pull back from inside into footwell.

Detach cut wiring harness from engine compartment and remove.

Fig 4: Detaching Cut Wiring Harness From Engine Compartment

Courtesy of BMW OF NORTH AMERICA, INC.

General information:

Information on assigning the repair connectors are contained in the DIS under the heading Component and signal information / pin, fan and solder connectors / connectors from X1... / X18985 - X18992.

Installation:

The cable ties and foam supports contained in the repair kit are for securing the repair plugs.

Fit all cut leads of main wiring harness with stop parts. Pin in leads in accordance with schematic in DIS.

Strip insulation from cable.

Crimp stop parts.

Connect precrimped leads to corresponding plugs (refer to ). Cut off and insulate unpinned leads.

Installation/removal of multiple connector systems.

Replace cable ties that have been cut open.

Installation:

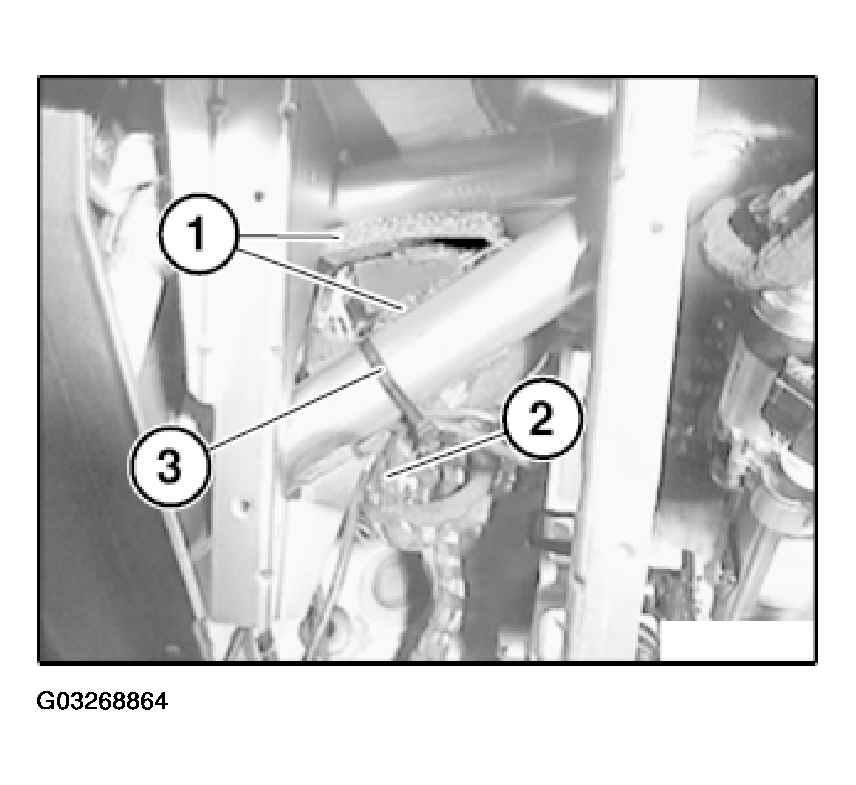

Stick foam supports (1) from repair kit as illustrated to both pipe carriers.

Secure repair plugs (2) with long cable tie (3) from repair kit to lower pipe carrier.

Fig 5: Securing Repair Plugs With Long Cable Tie From Repair Kit To Lower Pipe Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
