13 62 025 Removing And Installing/Replacing Left Differential Pressure Sensor (N73)

WARNING: This page is about a different car, the 2008 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Switch off ignition.

Unlock plug (1) and remove.

Release screws on differential pressure sensor.

Pull differential pressure sensor (2) out of intake air manifold.

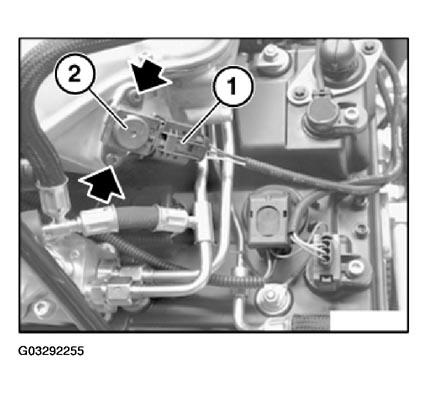

Fig 1: Plug, Retaining Screws And Differential Pressure Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check function of DME.
