67 11 555 Removing And Installing/Replacing Servodrive For Tank Filler Flap

Necessary Preliminary Tasks:

• Disconnect battery negative lead. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
• Remove and install flap in luggage compartment wheel arch trim on right. Refer to 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

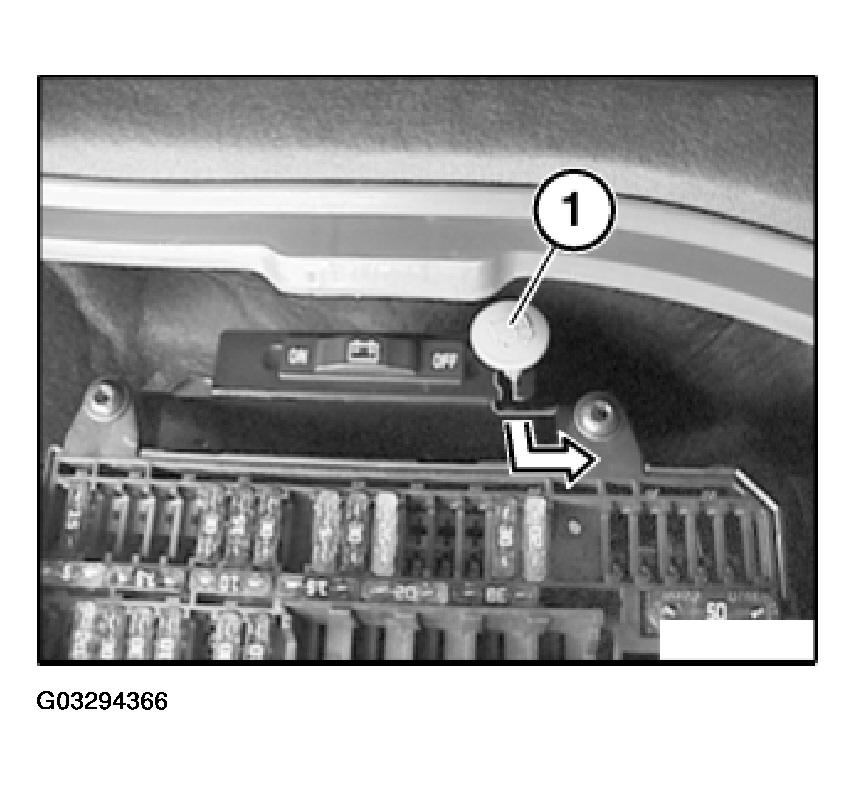

Unhook emergency actuation pull strap (1) in direction of arrow from guide.

Fig 1: Locating Emergency Actuation Pull Strap

Courtesy of BMW OF NORTH AMERICA, INC.

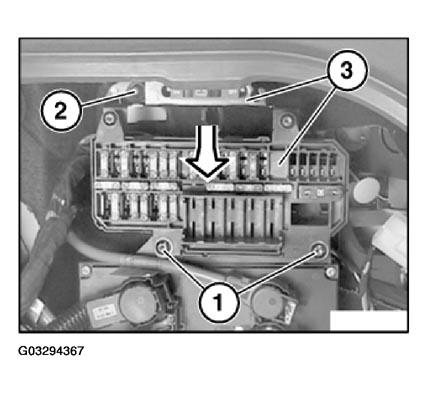

Release screws (1).

Unscrew nut (2).

Feed out fuse box incl. metal bracket (3) in direction of arrow and fold downwards.

Fig 2: Identifying Fuse Box And Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

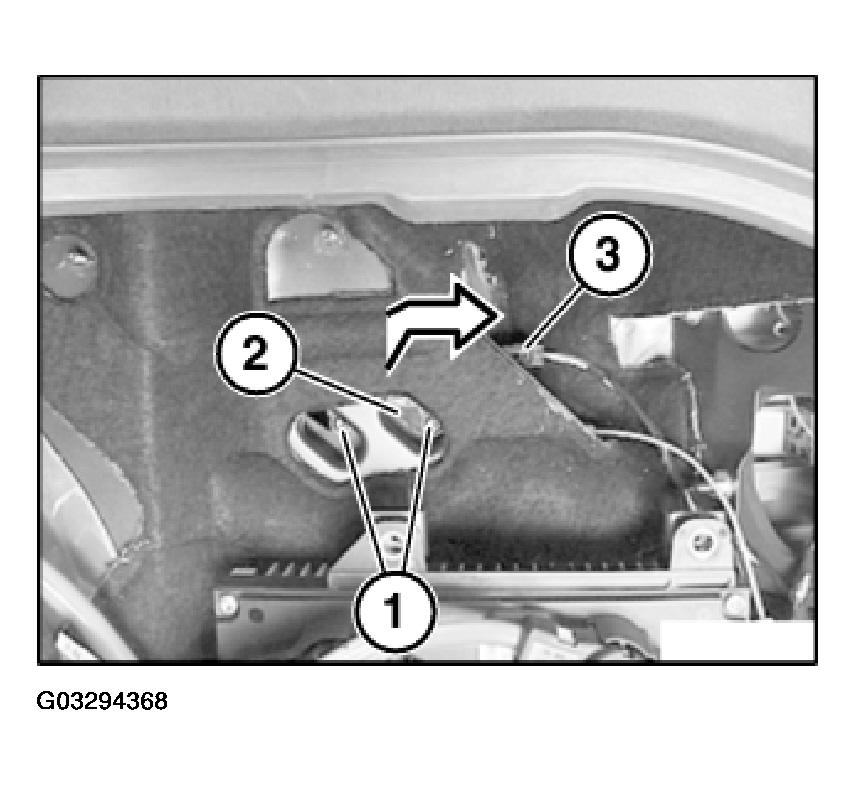

Loosen screws (1).

Installation:

Make sure servodrive for fuel filler flap (2) is correctly adjusted. It must be possible to lock or unlock the fuel filler flap completely.

Feed out servodrive for fuel filler flap (2) towards rear.

Disconnect plug connection (3) and remove servodrive for fuel filler flap (2).

Fig 3: View Of Servodrive For Fuel Filler Flap

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

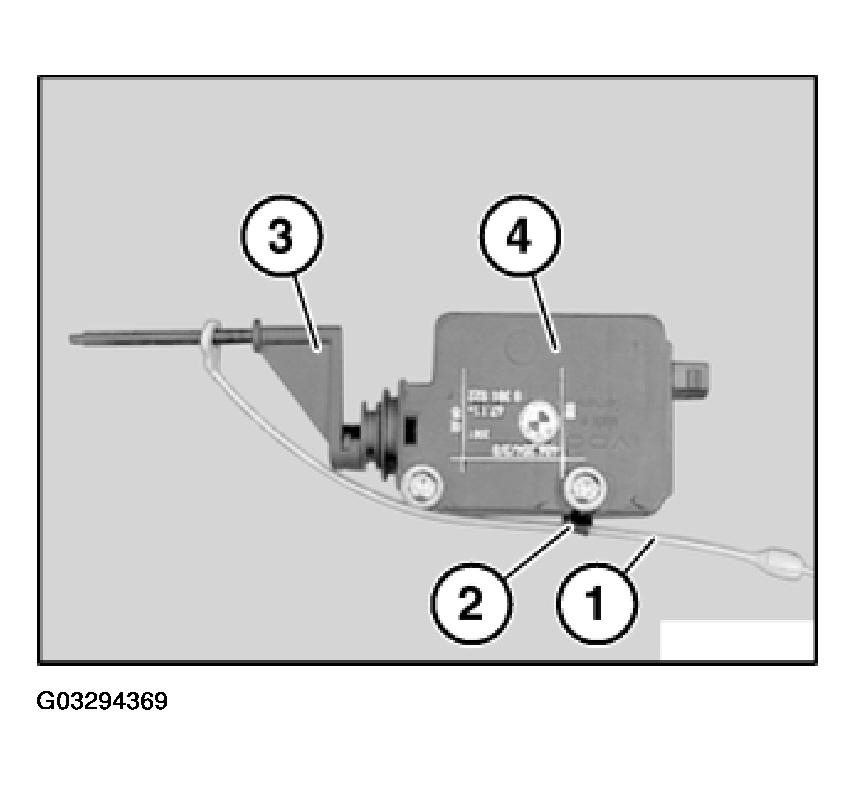

Unhook emergency actuation pull strap (1) from clip (2) and remove from locking pin (3) of servodrive for fuel filler flap (4).

Fig 4: Identifying Emergency Actuation Pulling Strap, Clip And Locking Pin

Courtesy of BMW OF NORTH AMERICA, INC.

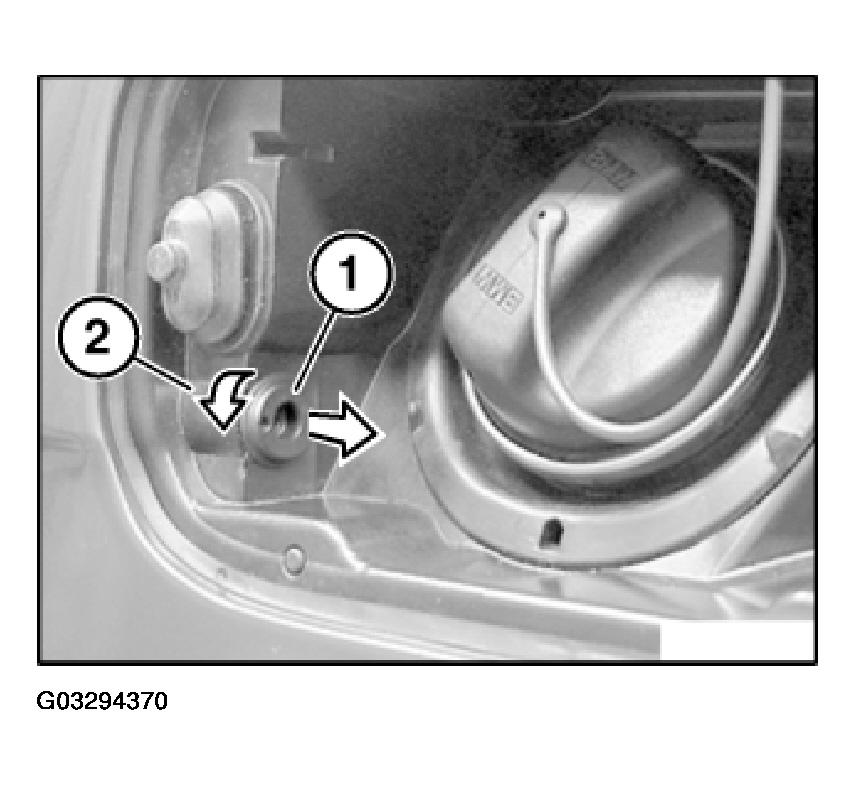

Turn sleeve (1) with a suitable tool (e.g. pointed pliers) approx. 45° in direction of arrow and pull out of receptacle (2).

Fig 5: Removing Sleeve From Receptacle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

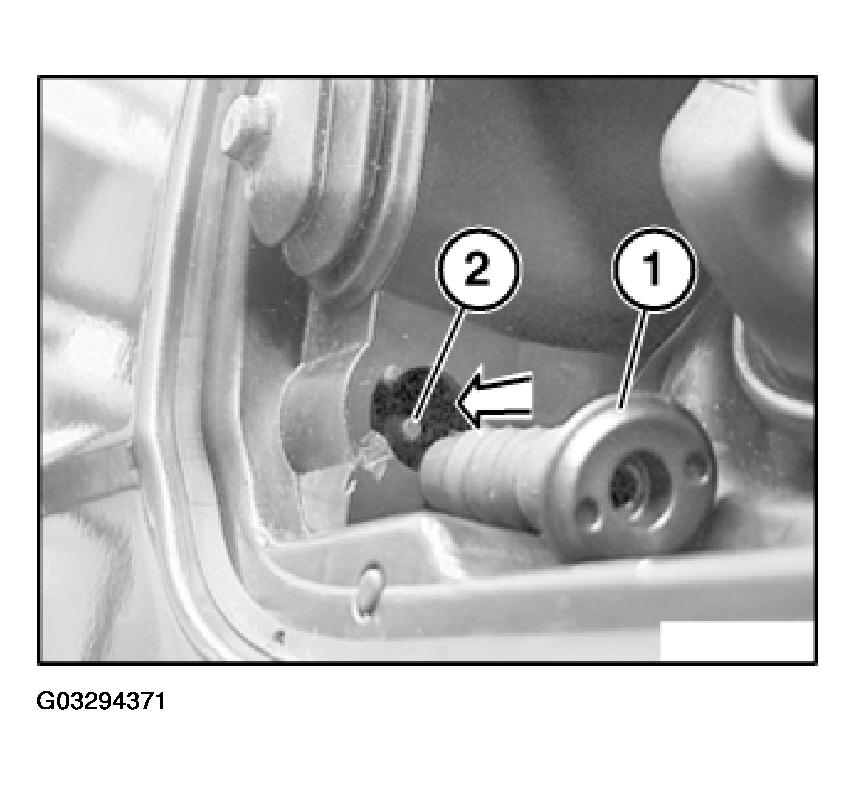

Make sure sleeve (1) is correctly seated on locking pin for tank filler flap (2).

Fig 6: Identifying Sleeve Seating Position

Courtesy of BMW OF NORTH AMERICA, INC.
