67 64 010 Removing And Installing/Replacing Drive Unit For Electric Steering Column Adjustment
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760i, 2006 BMW 760Li, and 2005 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Move steering column into "lower" and "extended" position.
- Disconnect battery negative lead. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
- Remove panel for active knee protection, left. Refer to 51 45 175 REMOVING AND INSTALLING/REPLACING PANEL FOR KNEE PROTECTOR ON LEFT and 51 45 177 REMOVING AND INSTALLING/REPLACING PANEL FOR ACTIVE KNEE PROTECTOR ON LEFT .
NOTE:
For purposes of clarity, graphic shows steering column removed.

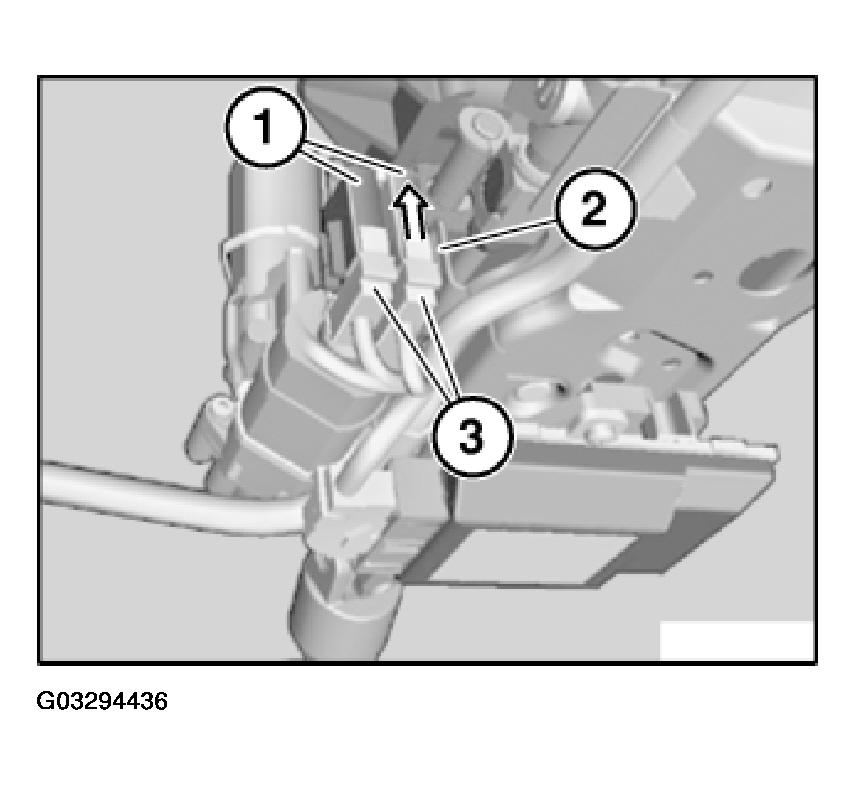

Unlock plug housings (1) and remove from holder (2) in direction of arrow.
Disconnect plug connections (3).
IMPORTANT:
Do not bend or twist drive shafts when removing!

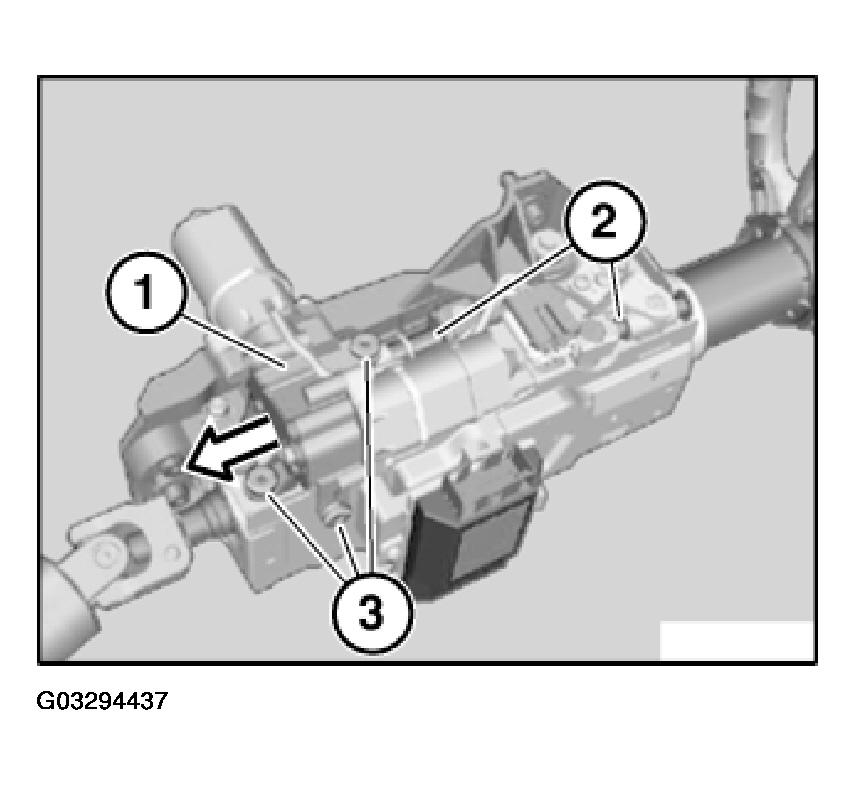

Release screws (3) and feed out drive (1) in direction of arrow.
Installation:
Replace screws (3).
Tightening torque, refer to 32 31 12AZ in STEERING AND WHEEL ALIGNMENT - TIGHTENING TORQUES .
Installation:

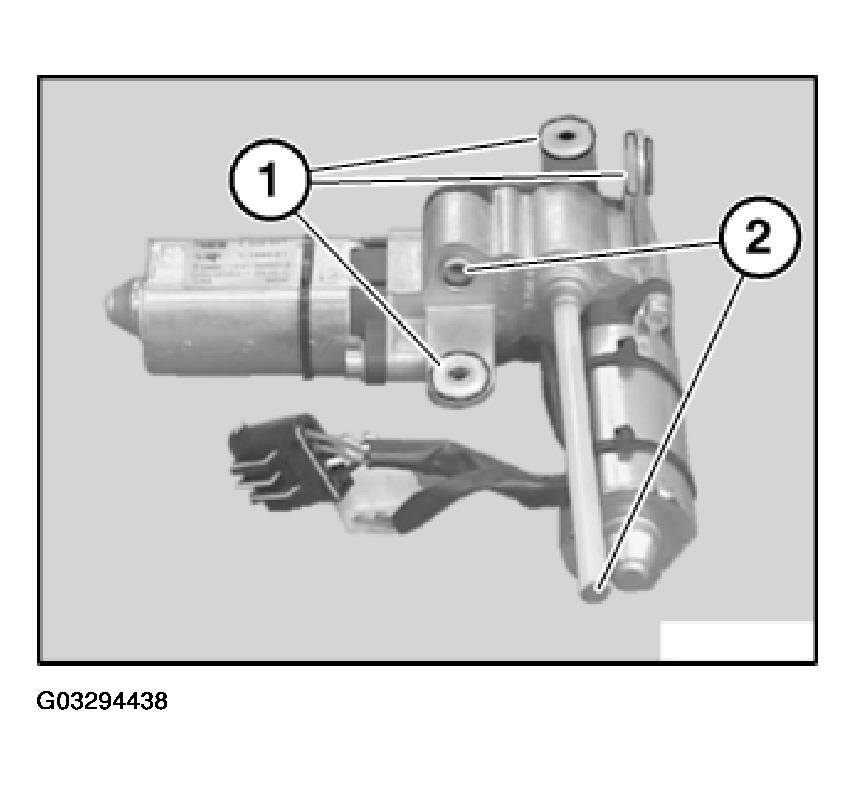

Drive shafts must be inserted exactly in guides (2).
Check plastic bearings (1), replace if necessary.
