72 12... Overview of AIRBAG modules, seat belts and AIRBAG control units

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

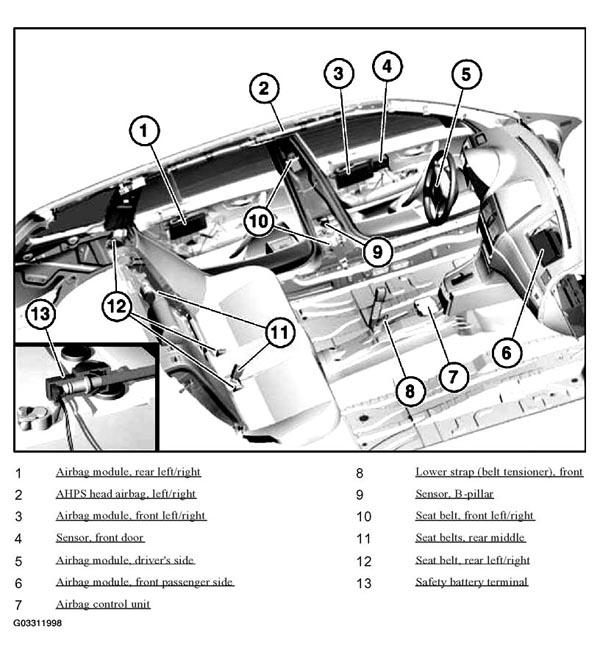

Fig 1: Overview Of AIRBAG Modules, Seat Belts And AIRBAG Control Units
G03311998Courtesy of BMW OF NORTH AMERICA, INC.
