61 13... Plug housing, LCC contact (load current contact)

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 1 200

Socket housing:

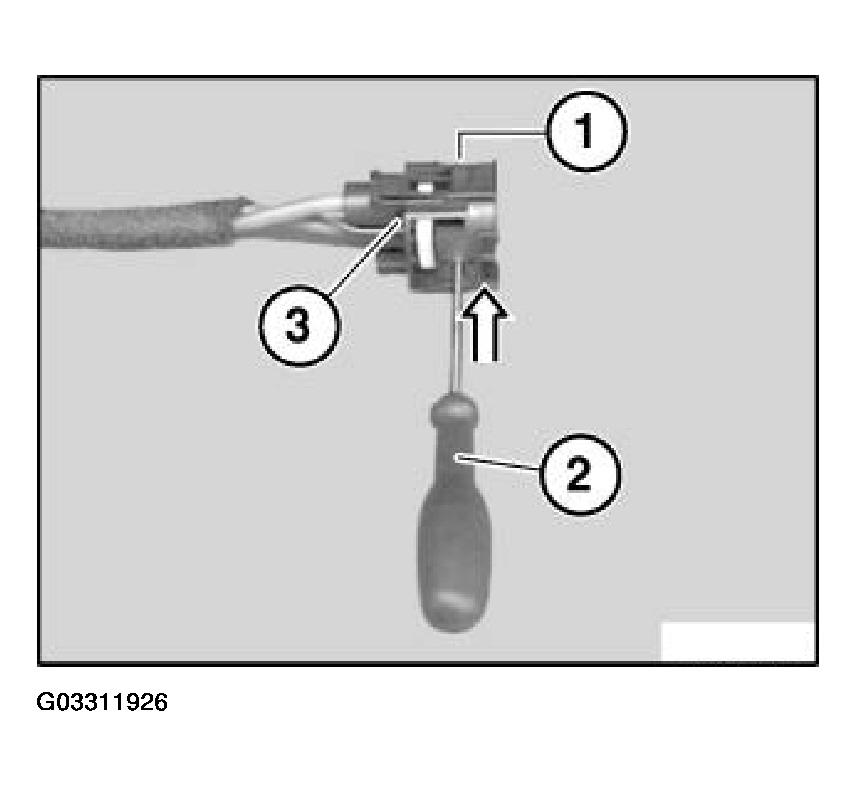

Press lock (1) with suitable tool (2) in direction of arrow out of socket housing (3).

Fig 1: Pressing Lock

G03311926

Courtesy of BMW OF NORTH AMERICA, INC.

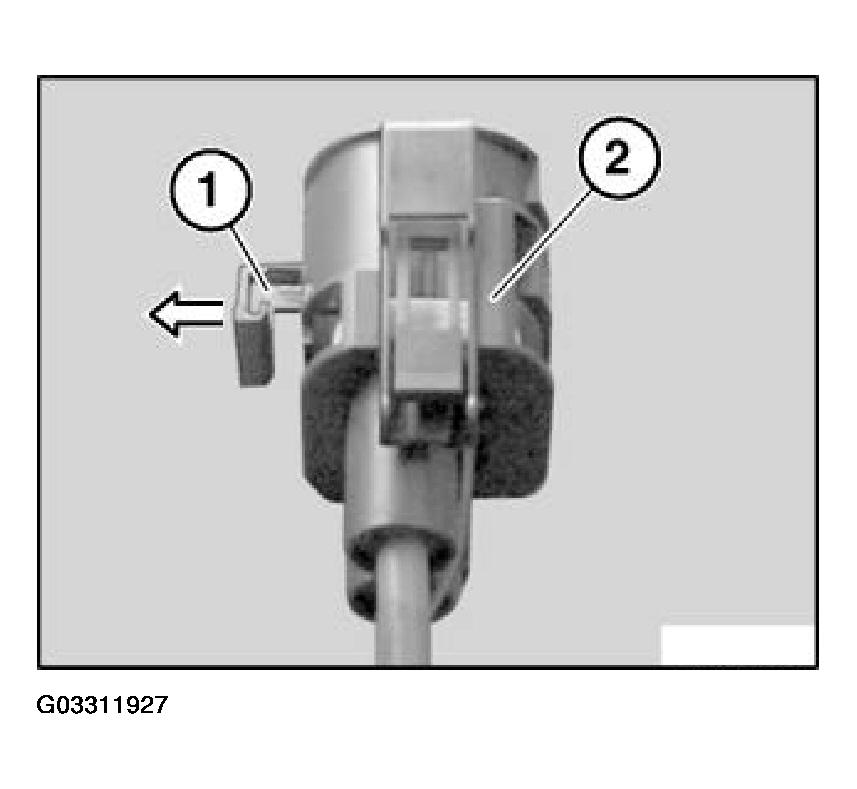

Pull lock (1) out of socket housing (2).

Fig 2: Pulling Lock Out Of Socket Housing

G03311927

Courtesy of BMW OF NORTH AMERICA, INC.

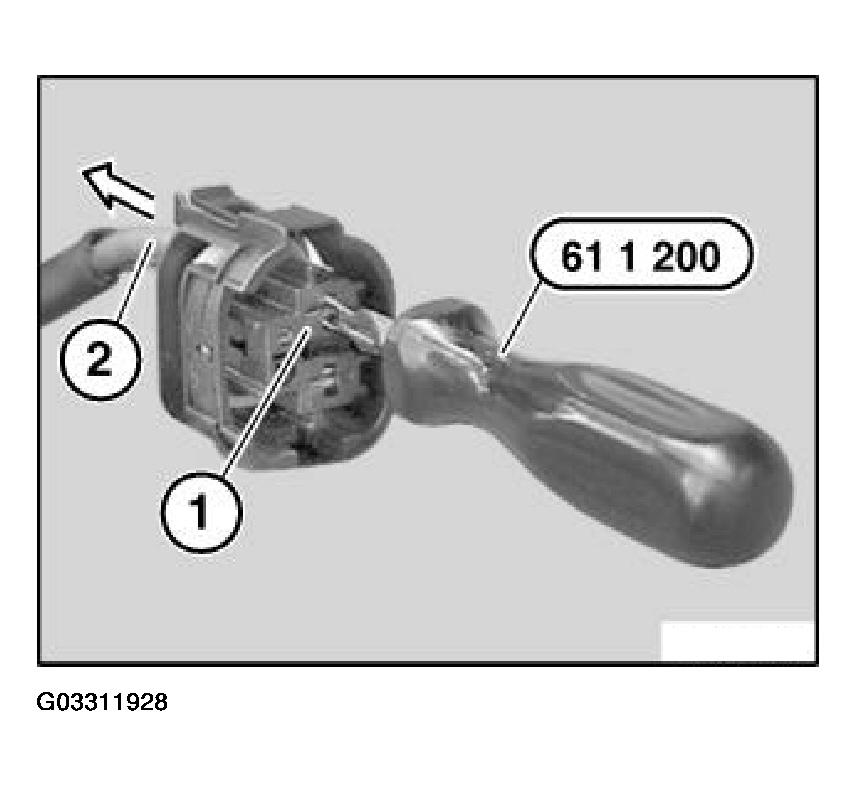

Insert special tool 61 1 200 into socket housing (1) and pull out lead with LCC contact (2) in direction of arrow.

Fig 3: Inserting Special Tool Into Socket Housing

G03311928

Courtesy of BMW OF NORTH AMERICA, INC.

Pin housing:

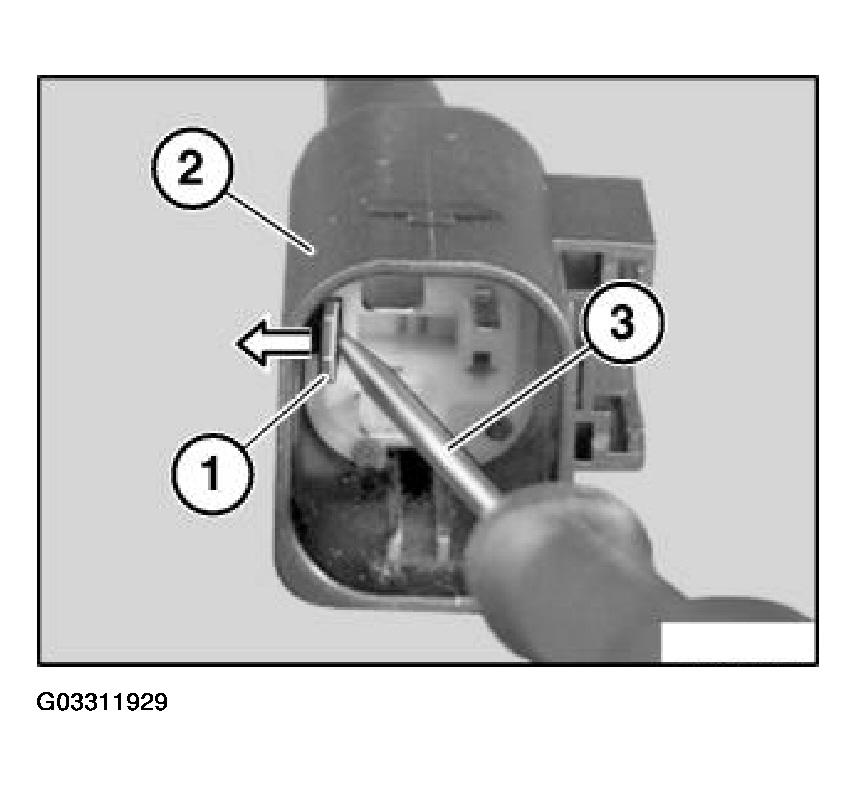

Unlock locking slide (1) of pin housing (2) with suitable tool (3) in direction of arrow.

Fig 4: Unlocking Locking Slide Of Pin Housing

G03311929

Courtesy of BMW OF NORTH AMERICA, INC.

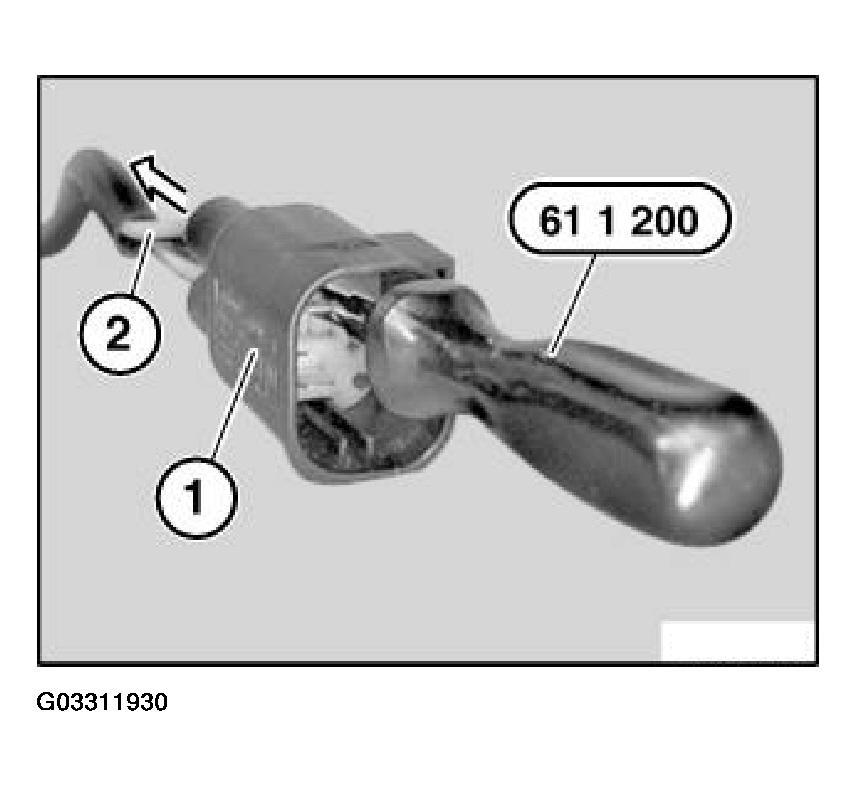

Insert special tool 61 1 200 into pin housing (1) and pull out lead with LCC contact (2) in direction of arrow.

Fig 5: Inserting Special Tool Into Pin Housing

G03311930

Courtesy of BMW OF NORTH AMERICA, INC.
