Removing MPQ Contacts From Contact Carrier:

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Remove contact carrier (1) with MQS contacts from radio plug.

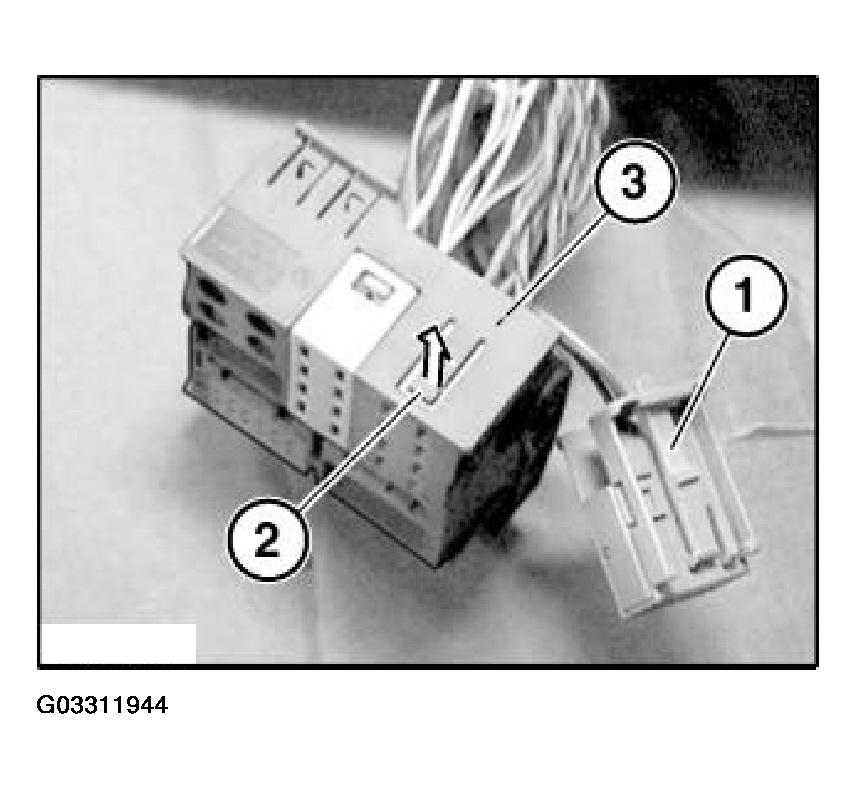

Fig 1: Removing Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Raise lock (2) on radio plug.

Pull contact carrier (3) out of radio plug.

Press lock (1) in direction of arrow.

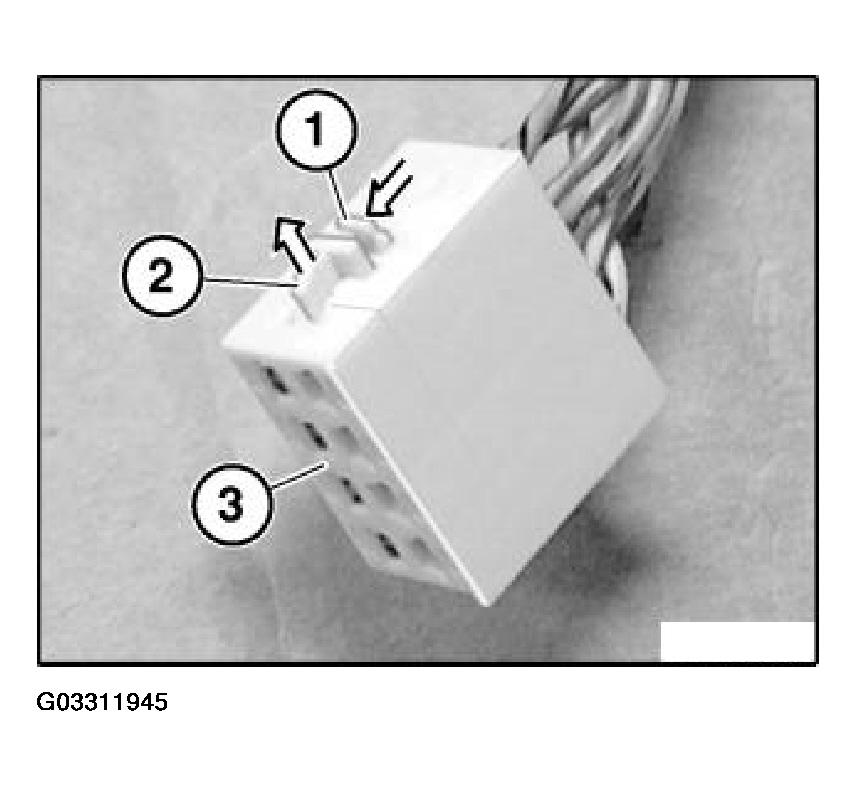

Fig 2: Pulling Secondary Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Pull secondary lock (2) in direction of arrow completely out of contact carrier (3).

Press special tool 61 1 135 on inside of contact into contact carrier (2).

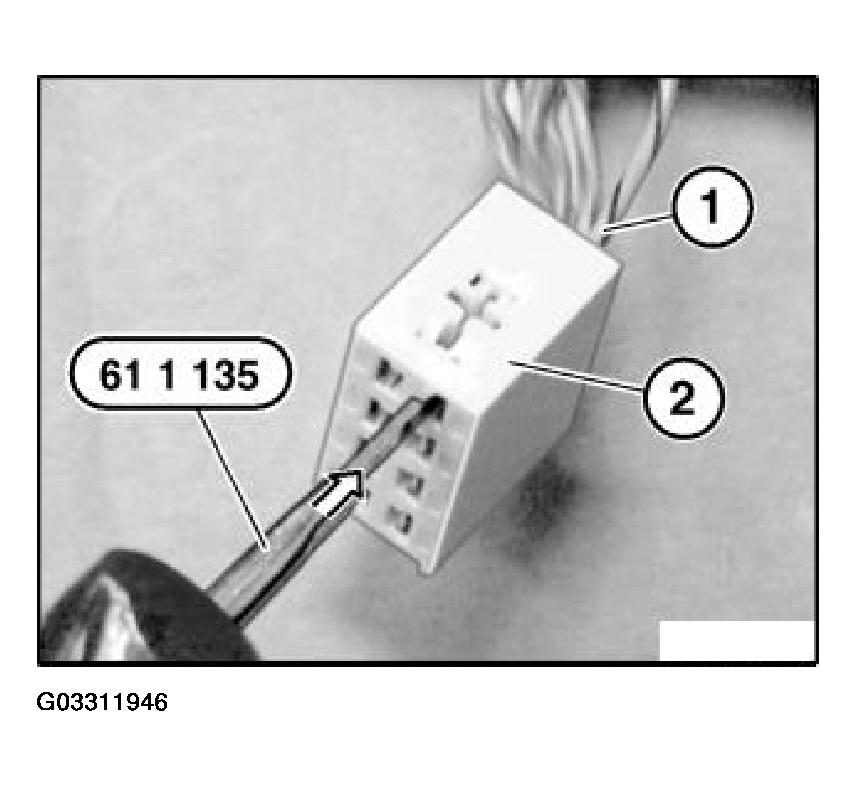

Fig 3: Pulling Wire With Socket Contact

Courtesy of BMW OF NORTH AMERICA, INC.

Pull wire with socket contact (1) out of contact carrier (2).
