Removing MQS Contacts From Contact Carrier:

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Press lock (1) in direction of arrow and pull housing (2) out of radio plug.

Fig 1: Pressing Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock (1) in direction of arrow. Pull contact carrier (2) out of housing (3).

NOTE: When the contact carrier is pulled out, the secondary locks of the socket contacts are raised.

Fig 2: Pulling Contact Carrier Out Of Housing

Courtesy of BMW OF NORTH AMERICA, INC.

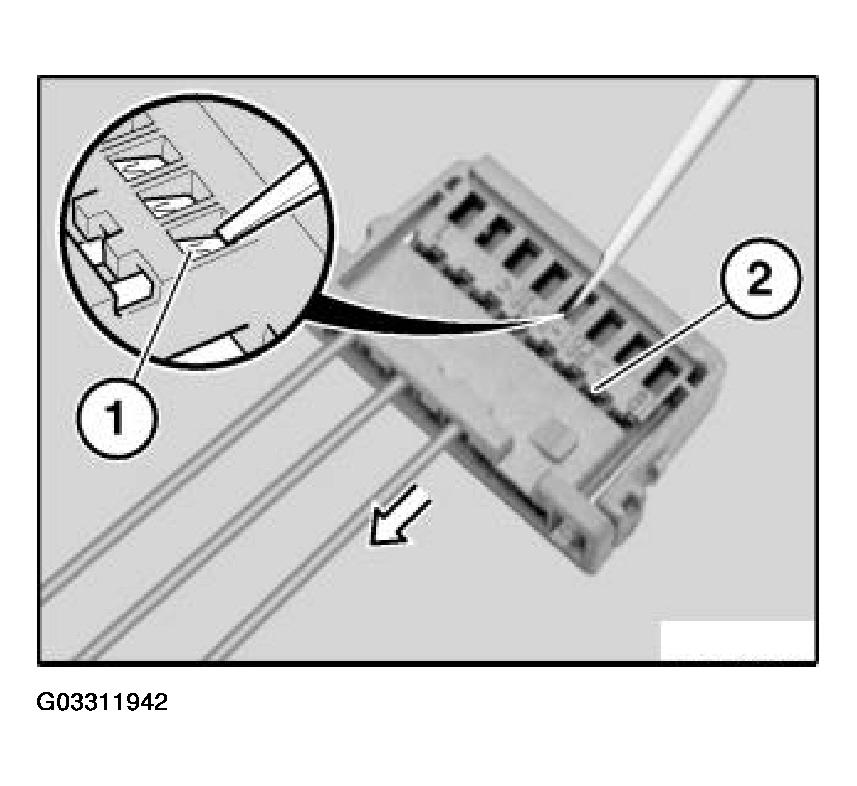

Hold down retaining hook (1) of socket contact in opening of contact carrier with a small screwdriver.

Fig 3: Holding Down Retaining Hook

Courtesy of BMW OF NORTH AMERICA, INC.

Pull wire with socket contact in direction of arrow as far as secondary lock (2).

NOTE: The illustration shows an 8 -pin socket housing where removal of the contacts is identical.

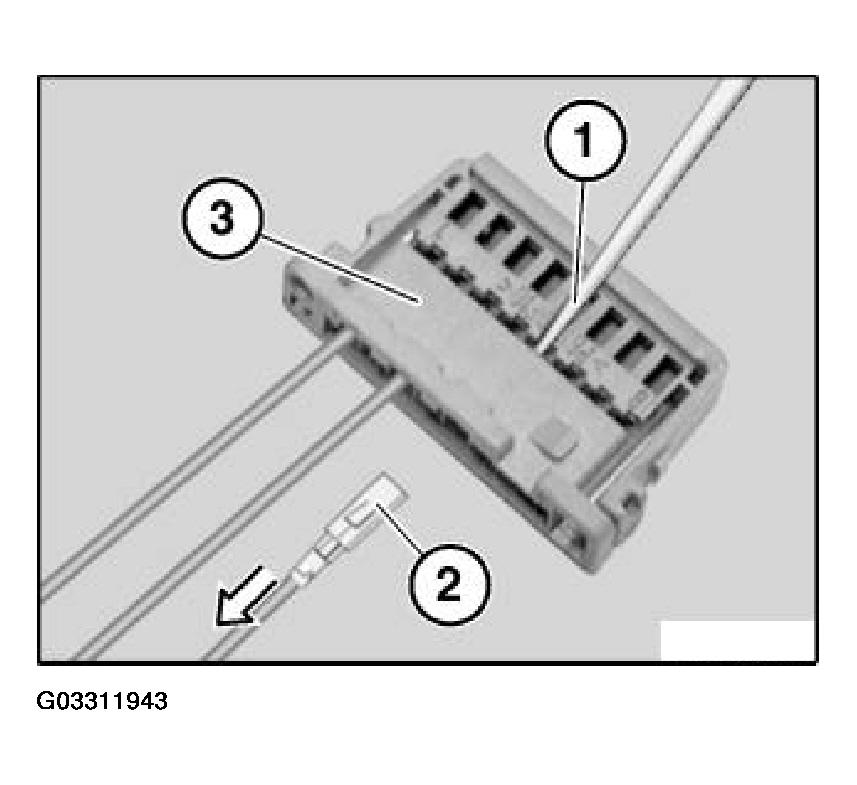

Hold down arrester hook in secondary lock (1) again. Pull wire with socket contact (2) out of contact carrier (3).

Fig 4: Holding Down Arrester Hook In Secondary Lock

Courtesy of BMW OF NORTH AMERICA, INC.
