61 31 115 Replacing Rocker Switch For Side Window Operation (Front)

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 341

Carefully lever out rocker switch for side window operation (1) with special tool 00 9 341 at specified points.

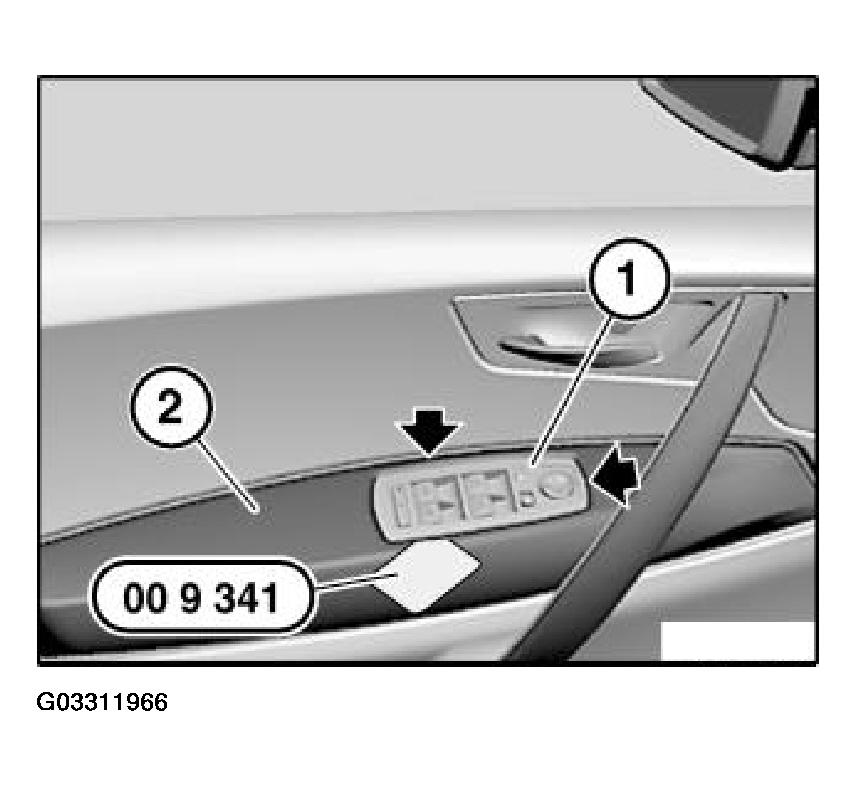

Fig 1: Removing Rocker Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Feed rocker switch for side window operation (1) out of front door trim panel (2).

Disconnect associated plug connection and remove rocker switch for side window operation (1).

Installation:

Retaining hooks (1) of rocker switch for side window operation (2) must not be damaged.

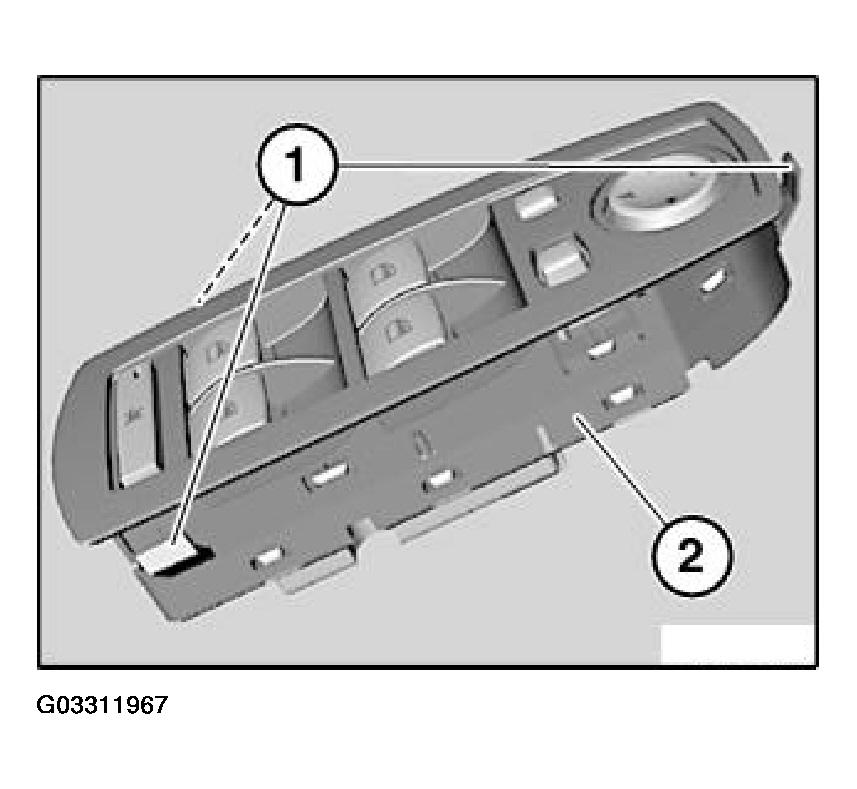

Fig 2: Locating Retaining Hooks

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure rocker switch for side window operation (2) is correctly seated.
