61 71 100 Removing And Installing/Replacing Windshield Washer Pump

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Drain washer fluid tank.

Unfasten plug connection (1) and disconnect.

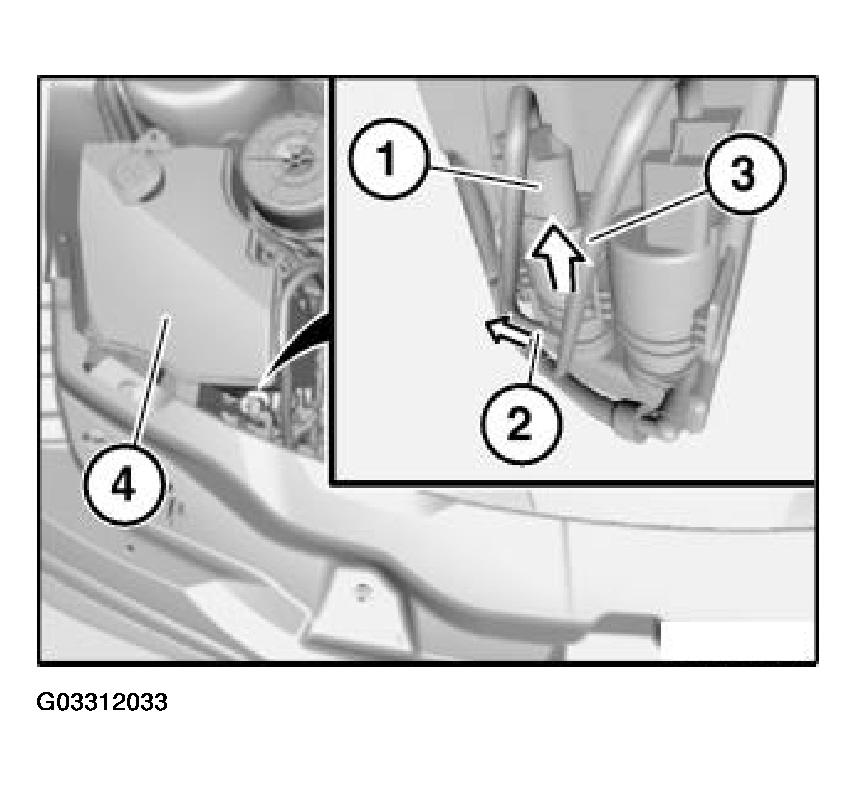

Fig 1: Removing Windshield Washer Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Detach hose (2) in direction of arrow from windshield washer pump (3).

If necessary, turn window washer pump (3) and pull in direction of arrow out of washer fluid reservoir (4).

Installation:

Replace sealing ring of windshield washer pump.

Coat sealing ring of windshield washer pump with antiseize agent.

Ensure hose is laid without kinks.

Fill washer fluid reservoir.
