13 62 560 Removing And Installing/Replacing Air-Mass Flow Sensor (S54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Turn off ignition.

Unlock plug (2) and detach from air-mass flow sensor (1).

Release screws (3).

Withdraw air-mass flow sensor (1) from intake pipe.

Installation:

Check O-ring for damage, replace if necessary.

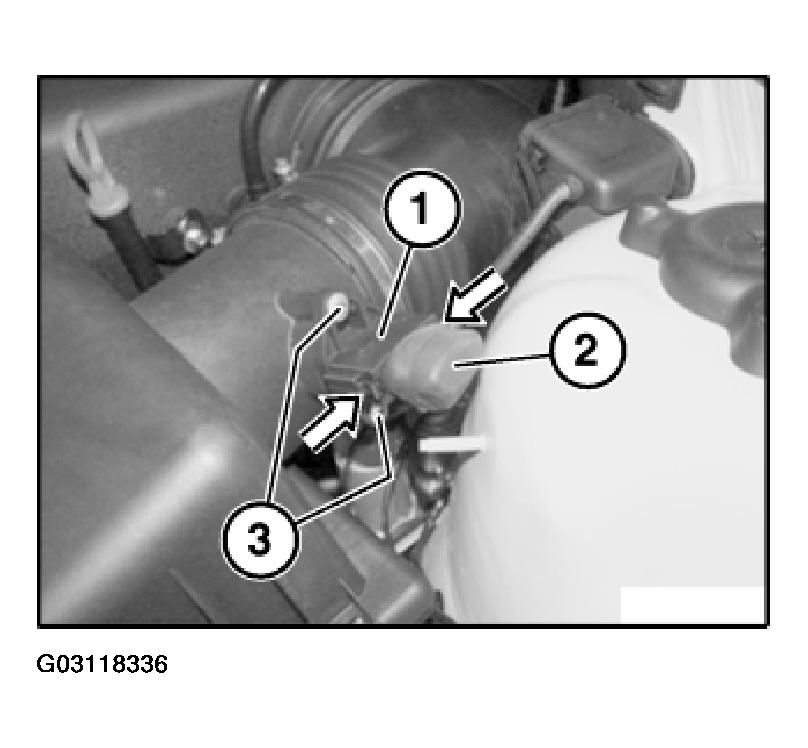

Fig 1: Locating Plug And Air-Mass Flow Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Interrogate fault memory of DME control unit. Check stored fault messages. Rectify faults. Then clear fault memory.
