61 31 057 Removing And Installing Switch Unit In Center Console

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Version with SMG transmission only:

Remove trim for storage tray. Refer to 61 31 055 REMOVING AND INSTALLING/REPLACING SWITCH FOR SMG TRANSMISSION (PROGRAM SELECTOR SWITCH) .

Version with automatic transmission only:

Remove finisher for preselector lever.

All:

Remove trim for center console. Refer to 51 16 211 REMOVING AND INSTALLING/REPLACING FOR STORAGE TRAY .

Remove insert in function carrier. Refer to 51 16 ... REMOVING AND INSTALLING/REPLACING CARRIER IN STORAGE TRAY .

In version with on-board monitor, remove heater controls. Refer to 64 11 748 REMOVING AND INSTALLING HEATER CONTROLS (A/C CONTROL) , 64 11 749 REMOVING AND INSTALLING HEATER CONTROLS (AUTOMATIC AIR CONDITIONING) or 64 11 750 REMOVING AND INSTALLING HEATING CONTROL (HEATER) .

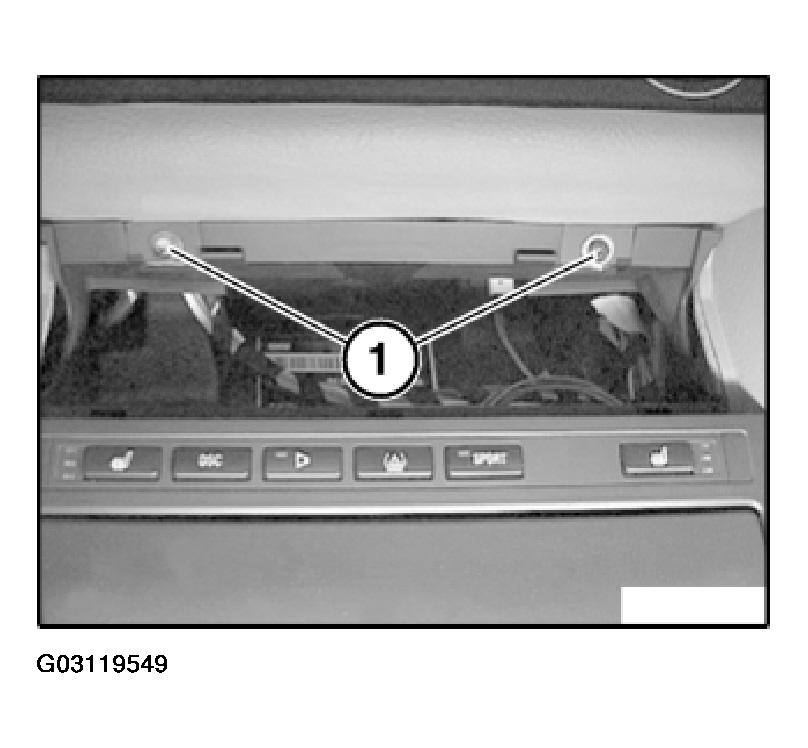

Loosen screws (1).

Fig 1: Loosening Screws
