61 35 175 Removing and installing/replacing rain sensor

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Version with rain/light sensor.

Expand two-part mirror base cover (1) by pressing from below and detach.

Feed out two-part mirror base cover (1) and remove.

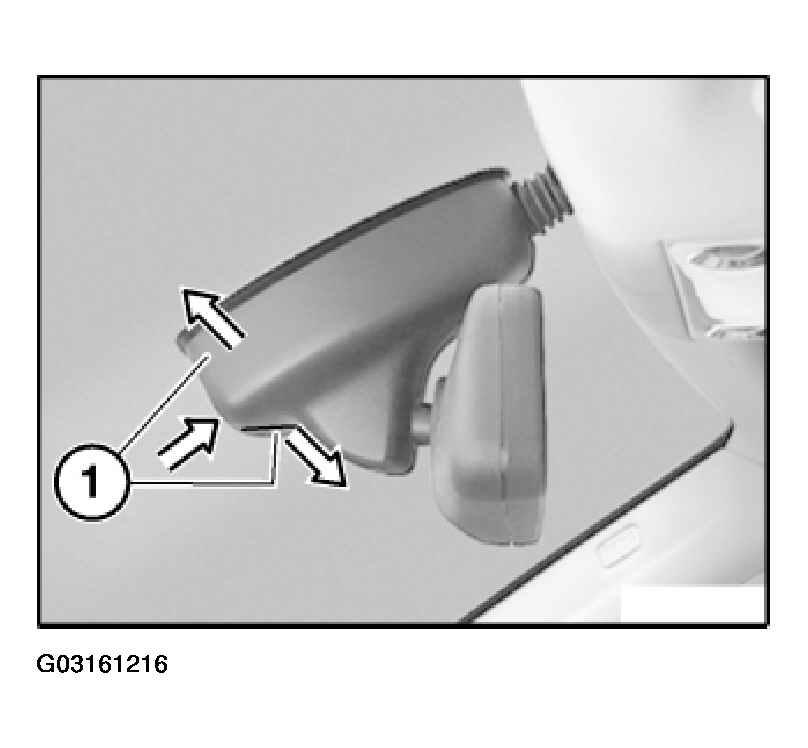

Fig 1: Open & Remove Mirror Base Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (3).

Press locks (1) in direction of arrow and remove rain/light sensor (2) towards bottom.

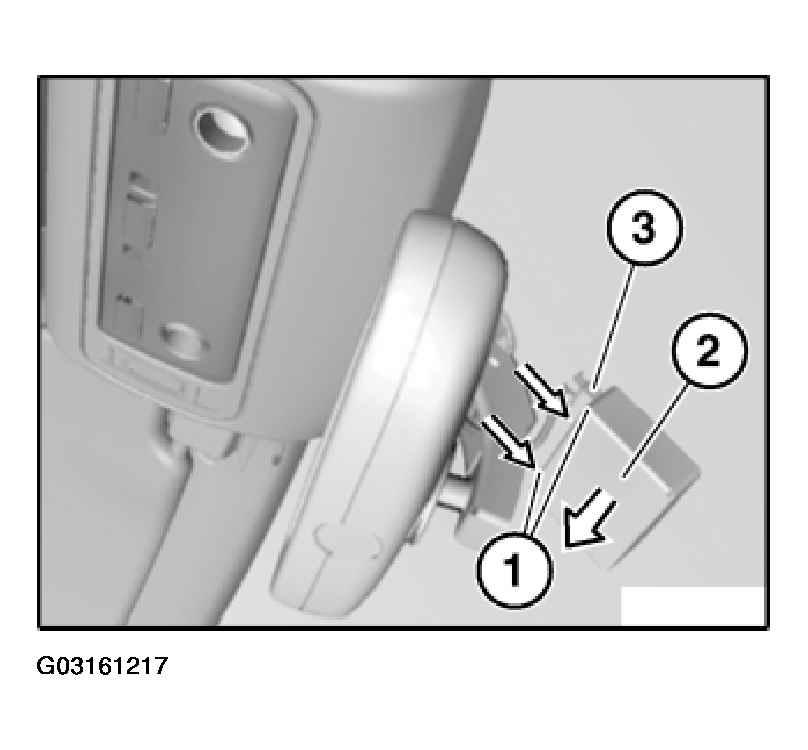

Fig 2: Removing Rain/Light Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Do not damage optical element below rain/light sensor (2).

If necessary, initialize rain/light sensor, refer to 61 35 680 INITIALIZING RAIN SENSOR .
