61 13... DME master relay connector

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

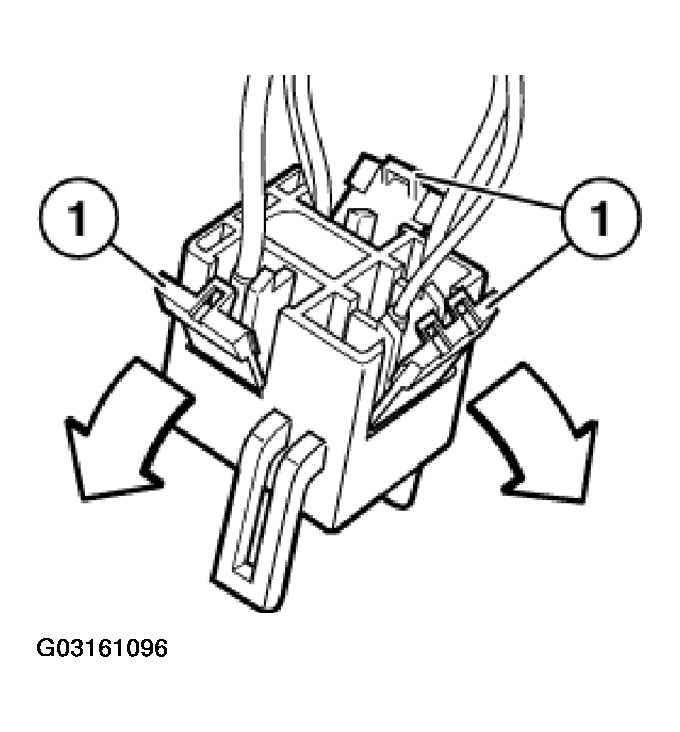

Unlock locking flap (1) of corresponding cable.

Fig 1: Unlocking Locking Flap Of Corresponding Cable

Courtesy of BMW OF NORTH AMERICA, INC.

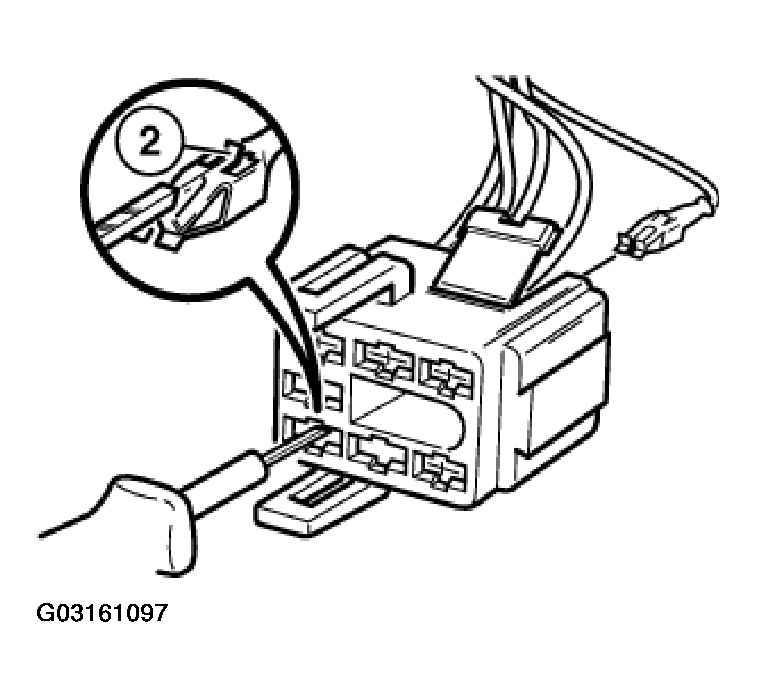

With special tool 61 1 136 or 61 1 137 (ejector), press back arrester hook (2) of appropriate contact and pull out cable.

Fig 2: Removing Appropriate Cable

Courtesy of BMW OF NORTH AMERICA, INC.
