Removing MPQ Contacts From Radio Plug:

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

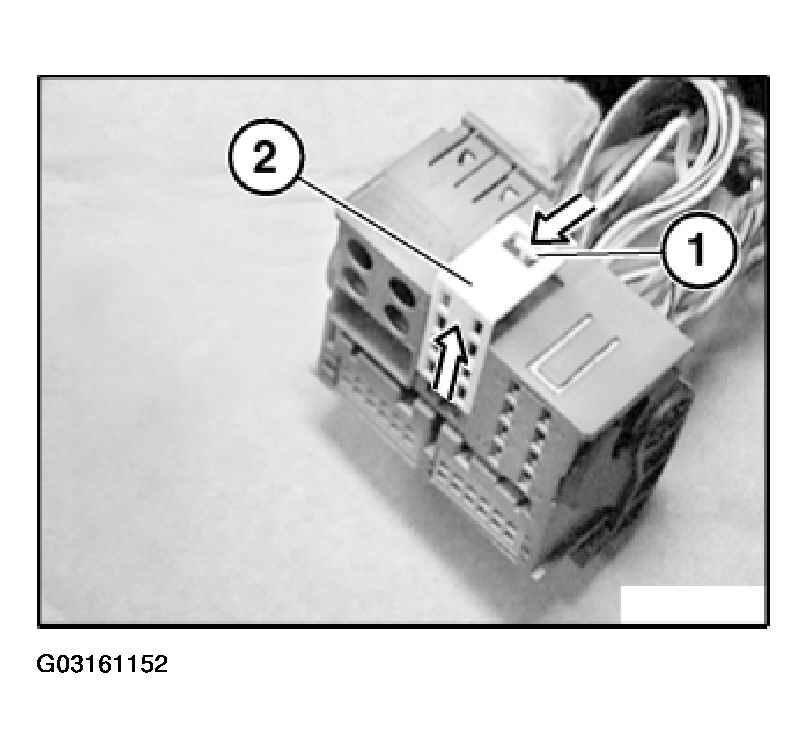

Press lock (1) in direction of arrow.

Detach secondary lock (2) from radio plug.

Fig 1: Detaching Secondary Lock From Radio Plug

Courtesy of BMW OF NORTH AMERICA, INC.

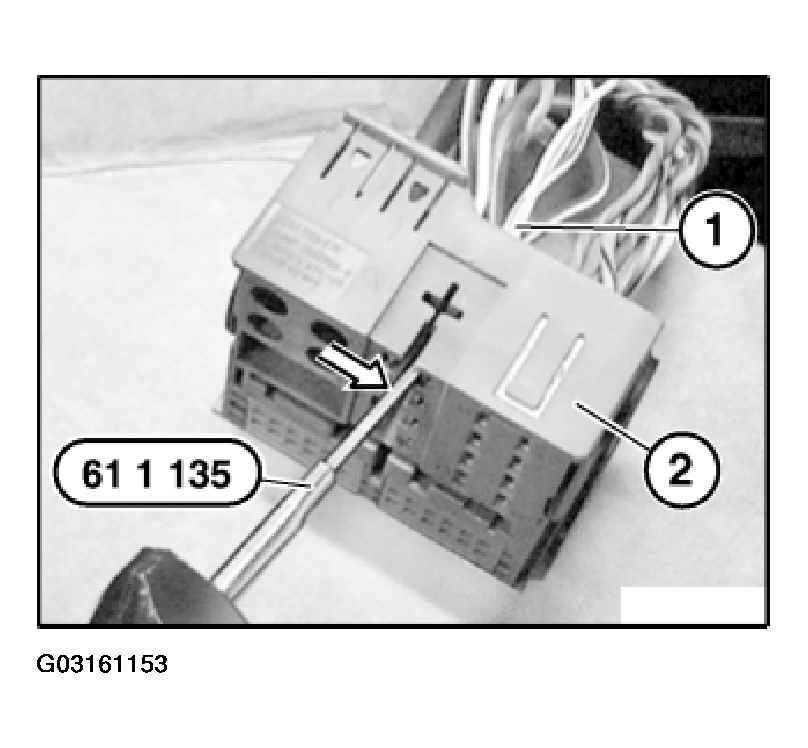

Feed special tool 61 1 135 past side of contact.

Press special tool 61 1 135 in direction of arrow.

Pull wire (1) with socket contact out of radio plug (2).

Fig 2: Removing Wire With Socket Contact Out Of Radio Plug

Courtesy of BMW OF NORTH AMERICA, INC.
