61 35 175 Removing and installing/replacing rain sensor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Up to 09/2001:

Version with rain sensor.

Necessary preliminary tasks:

Remove inside rearview mirror.

Press sides of cover down, slide upwards slightly and lift out.

Installation:

Align cover with black glass ceramics by pushing from side to side

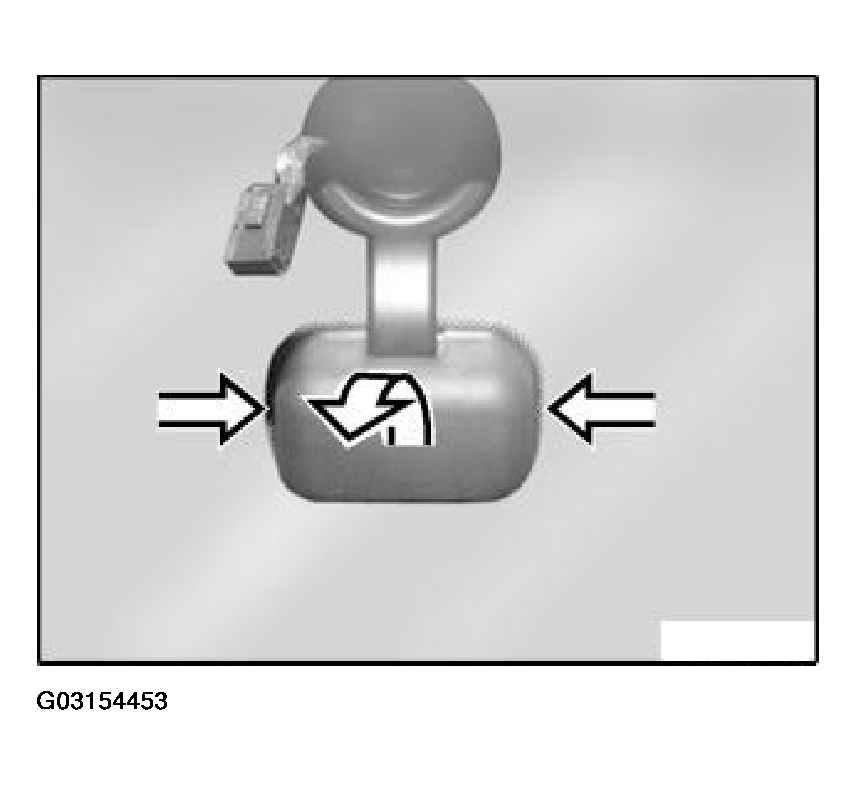

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cable finisher.

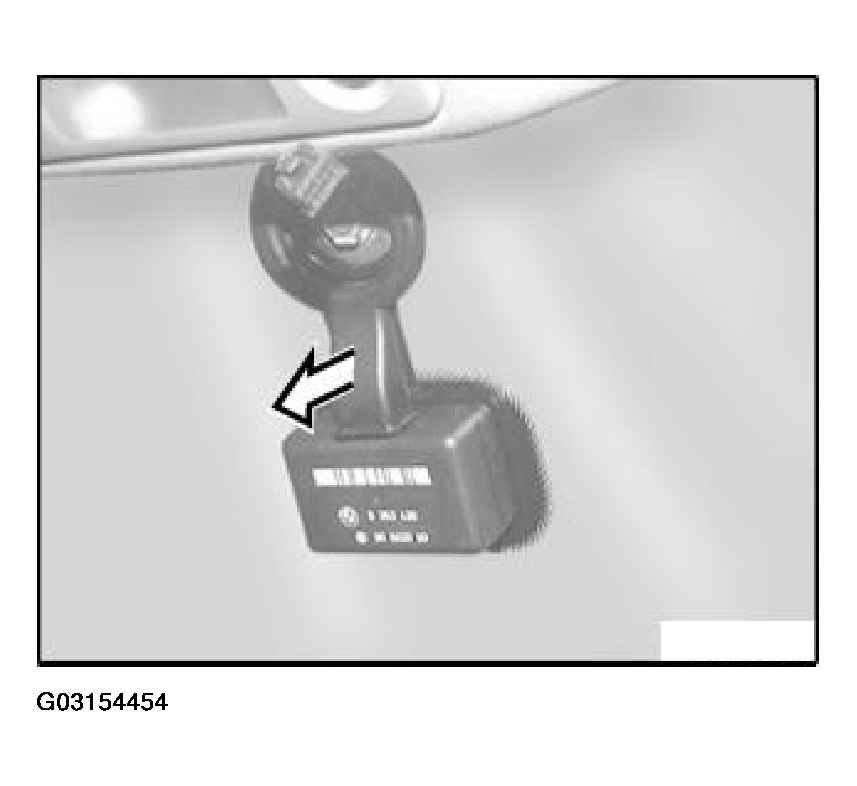

Fig 2: Unclipping Cable Finisher

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect connector.

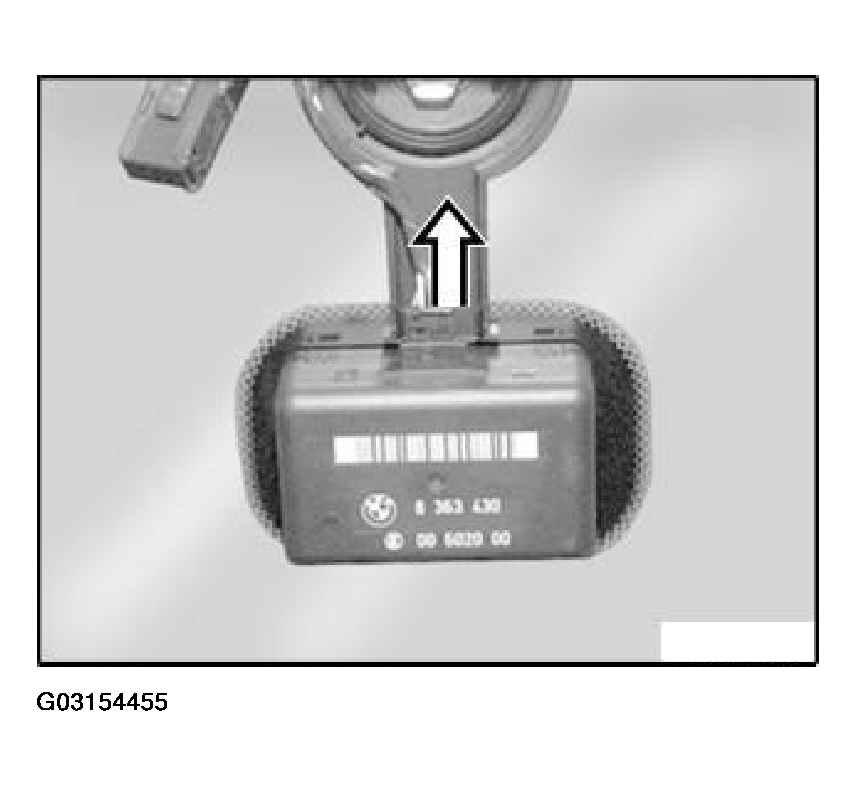

Fig 3: Disconnecting Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out retaining clips in each case in direction of arrow and remove.

Remove rain sensor.

Installation:

Do not damage optical element below rain sensor.

If necessary, initialize rain sensor with BMW scan tool.

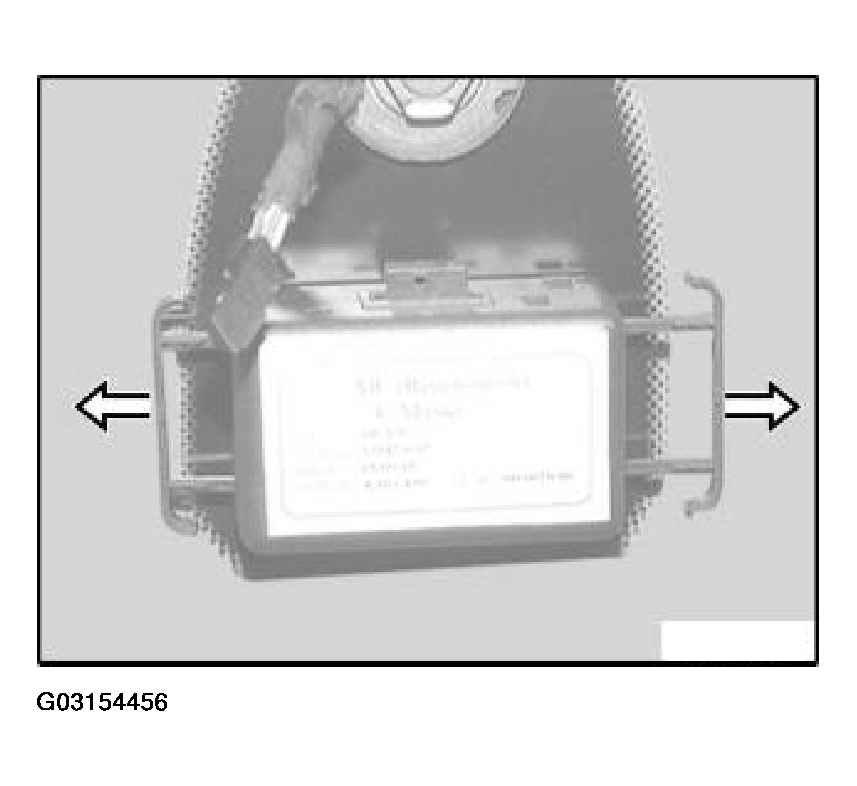

Fig 4: Removing Rain Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

From 09/2001:

Version with rain/light sensor.

Expand two-part mirror base cover (1) by pressing from below and detach.

Feed out two-part mirror base cover (1) and remove.

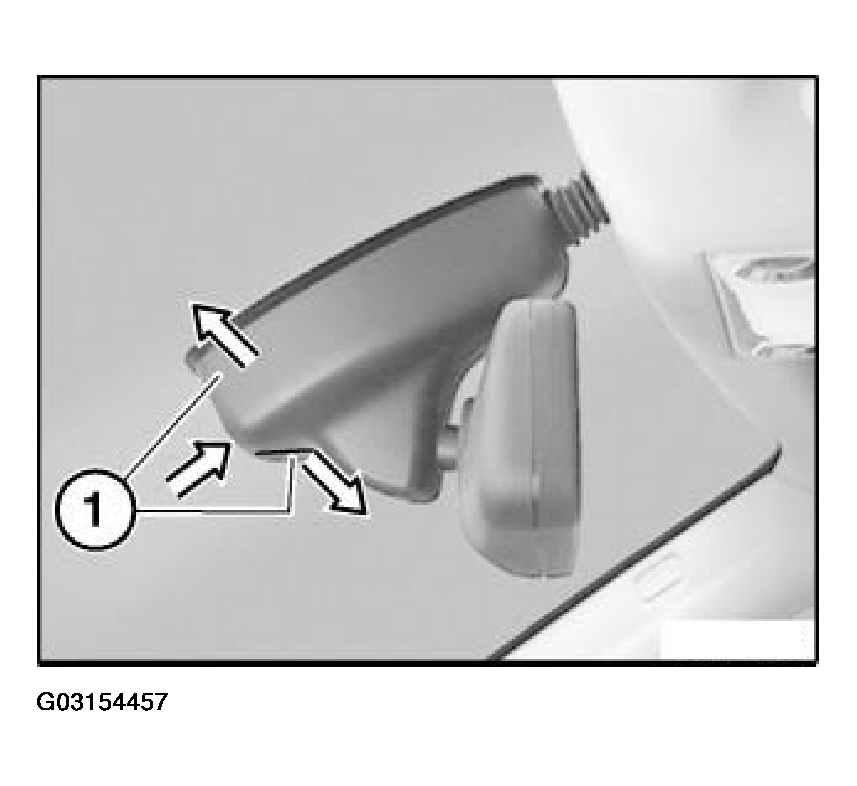

Fig 5: Removing Mirror Base Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (3).

Press locks (1) in direction of arrow and remove rain/light sensor (2) towards bottom.

Installation:

Do not damage optical element below rain/light sensor (2).

If necessary, initialize rain/light sensor.

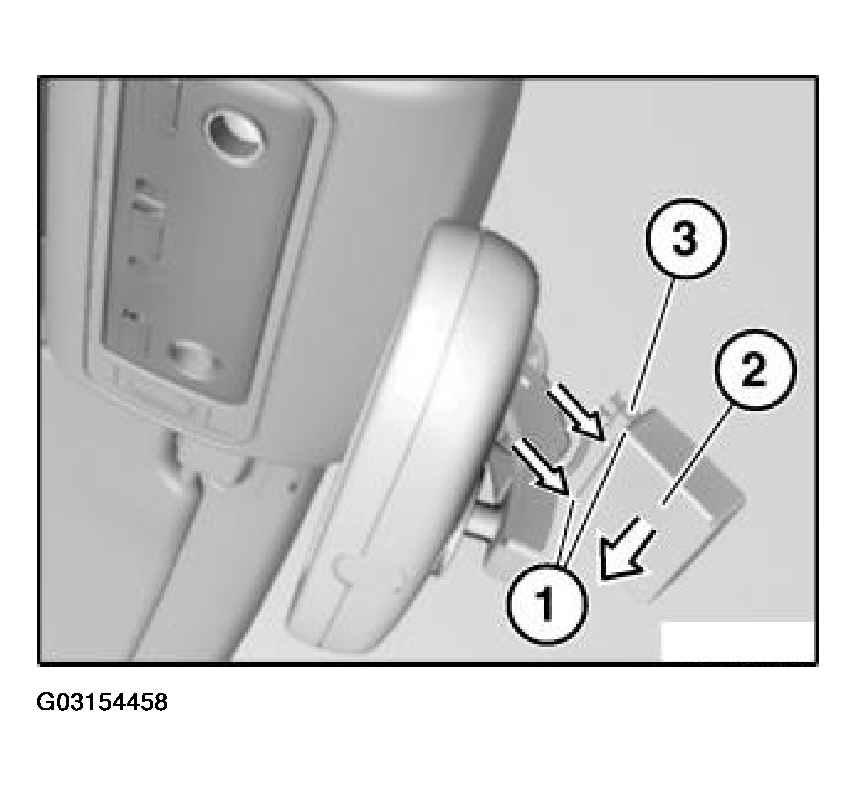

Fig 6: Removing Rain/Light Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
