52 17... Removing and installing/replacing left or right thigh support

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Loosen screws (1).

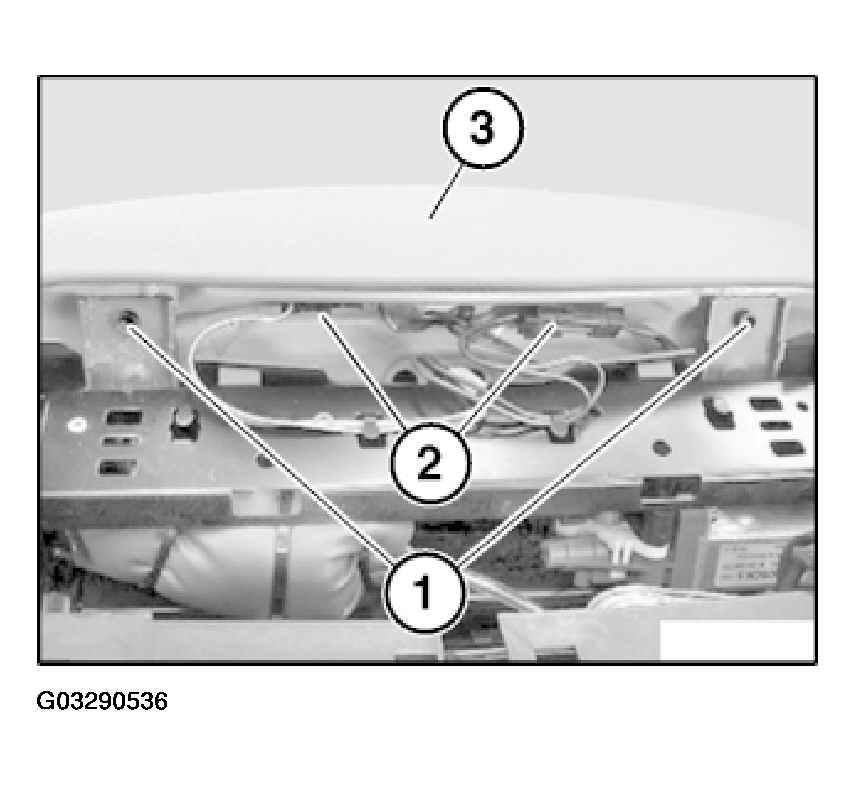

Fig 1: Removing Thigh Support

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (2).

Remove thigh support (3) towards top.

If necessary, unclip trim (1) towards top and remove.

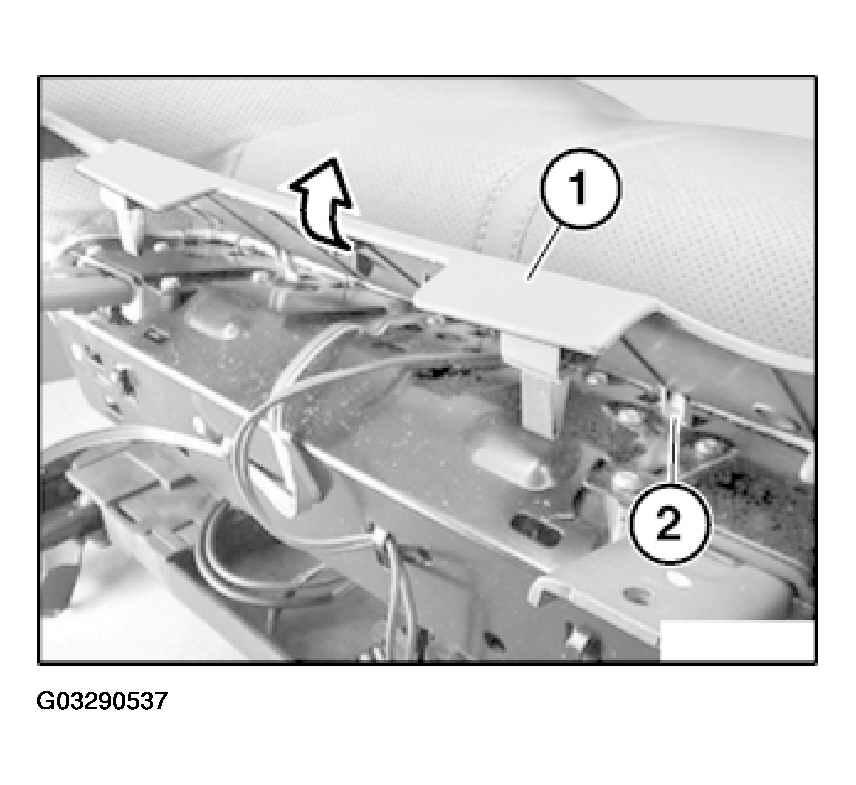

Fig 2: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Secure guide pins (2) in seat frame and clip trim (1) into place.
