52 17... Replacing padding for front seat thigh support

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

The work operations here are shown on the version with air conditioning and seat heating.

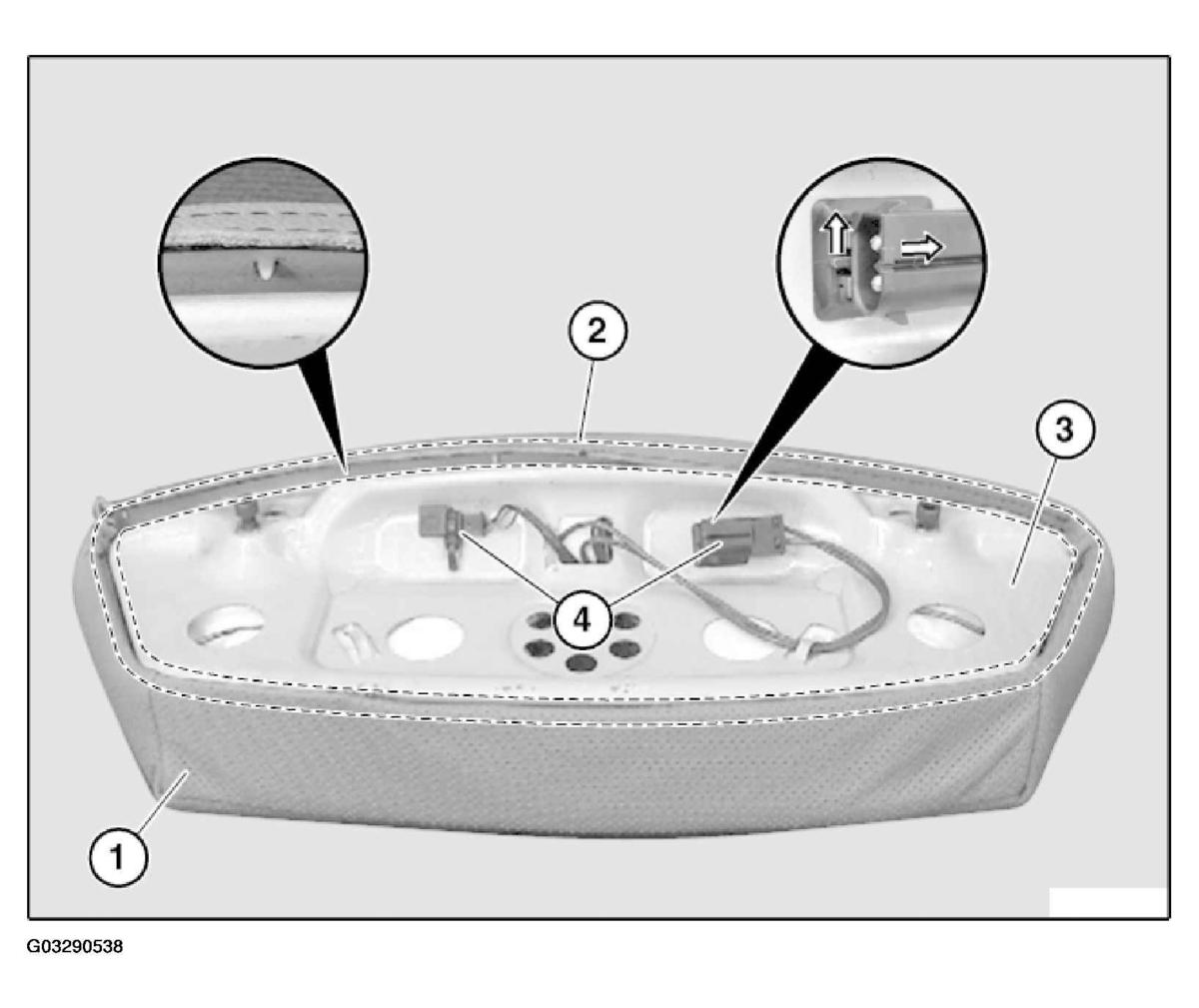

Feed out seat cover (1) in area (2).

Fig 1: Removing Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seat cover (1) is fastened by hooks in trim (3).

Remove plug connections (4) and feed out through trim (3).

Remove trim (3); if necessary, remove padding or cover.

Version with seat heating or air conditioning:

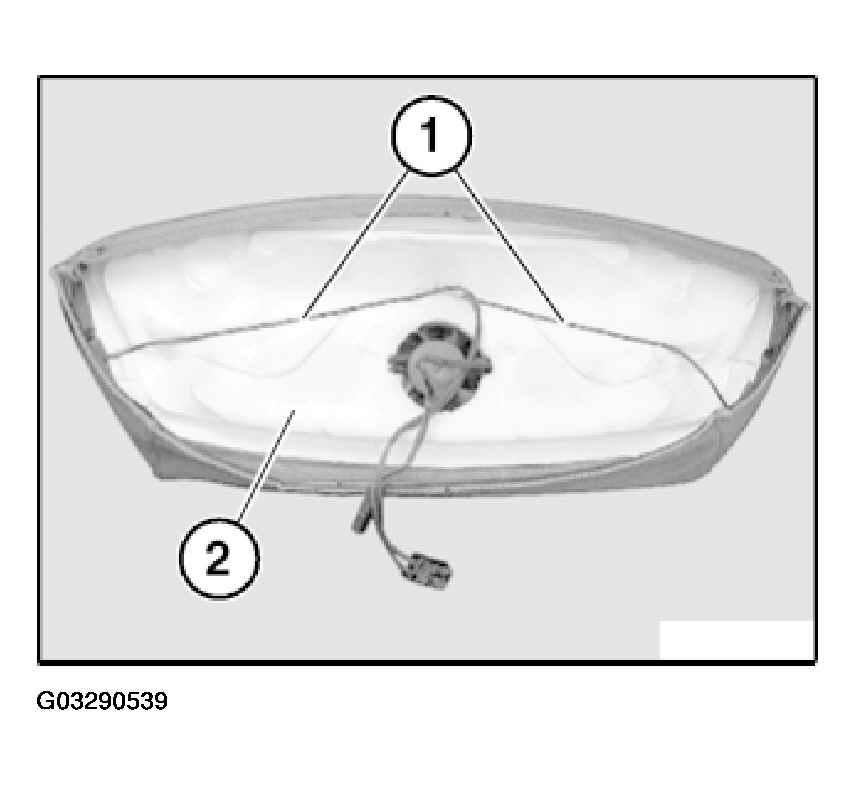

Feed out cable (1) and remove padding (2).

Fig 2: Removing Padding

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Ensure correct cable routing (1).

Version with air conditioning:

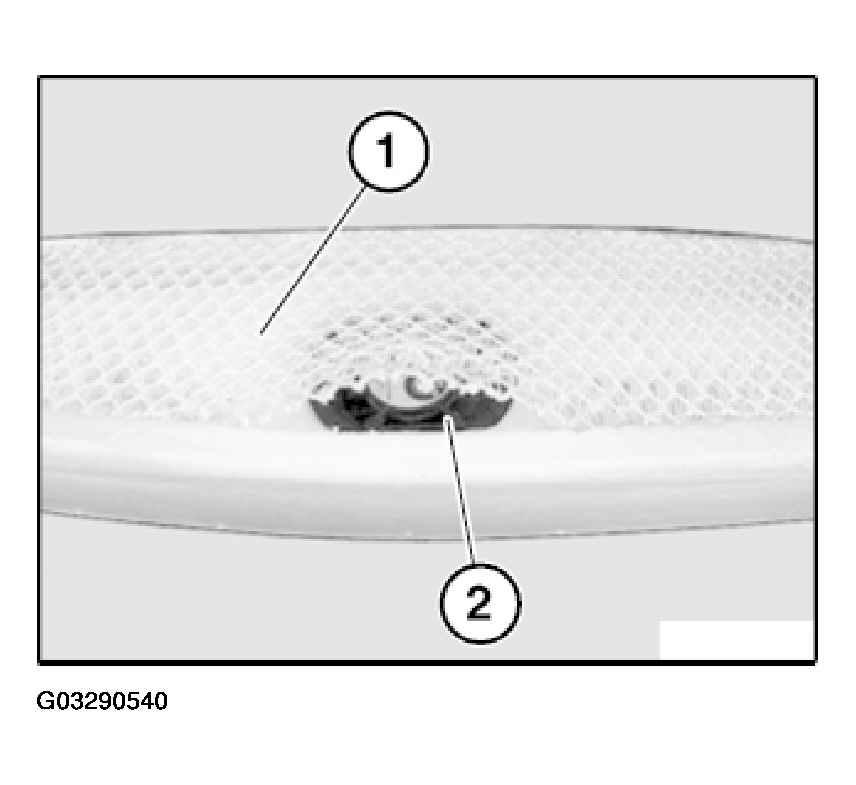

Remove separating net (1).
Lift out fan (2).

Fig 3: Removing Fan

Courtesy of BMW OF NORTH AMERICA, INC.
