61 35 177 Removing and installing (replacing) rain/light sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Expand two-part mirror base cover (1) by pressing from below and detach.

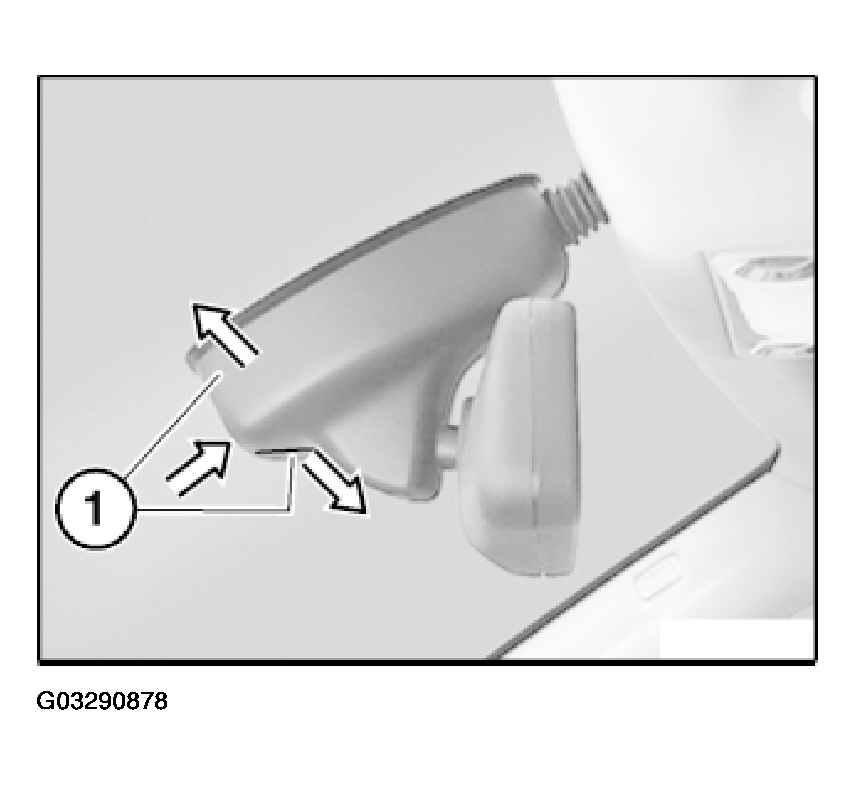

Fig 1: Removing Two-Part Mirror Base Cover

G03290878

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out two-part mirror base cover (1) and remove.

Disconnect plug connection (3).

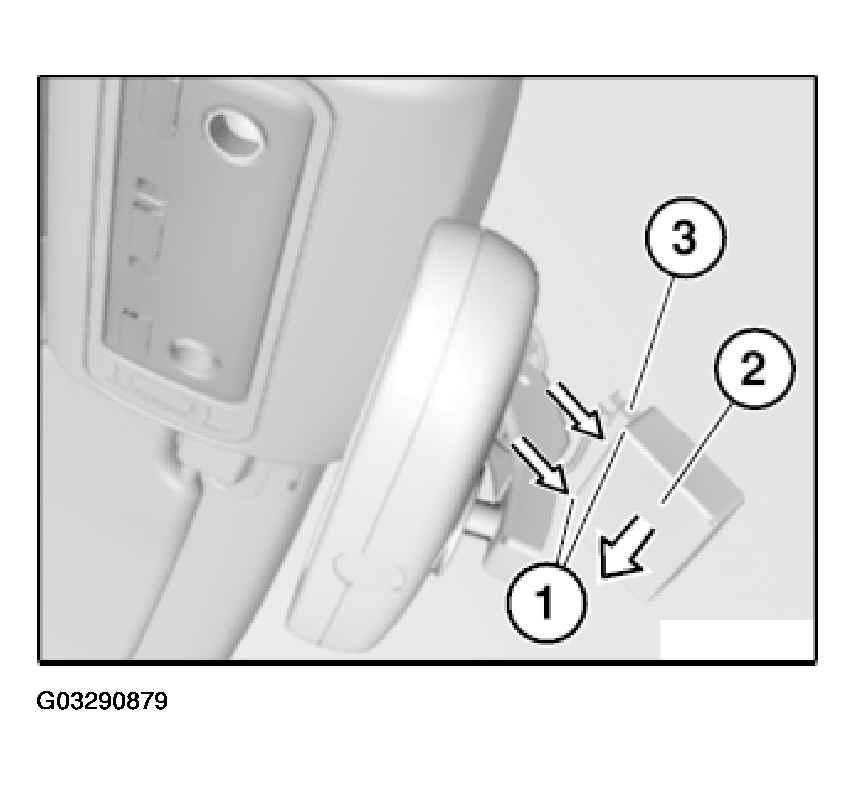

Fig 2: Disconnecting Plug Connection

G03290879

Courtesy of BMW OF NORTH AMERICA, INC.

Press locks (1) in direction of arrow and remove rain/light sensor (2) towards bottom.

Installation:

Do not damage optical element covered by rain/light sensor (2).

If necessary, initialize rain/light sensor. Refer to 61 35 679 Initializing rain/light sensor .

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

Programming
Coding
If necessary, car & key memory
CD "CIP"

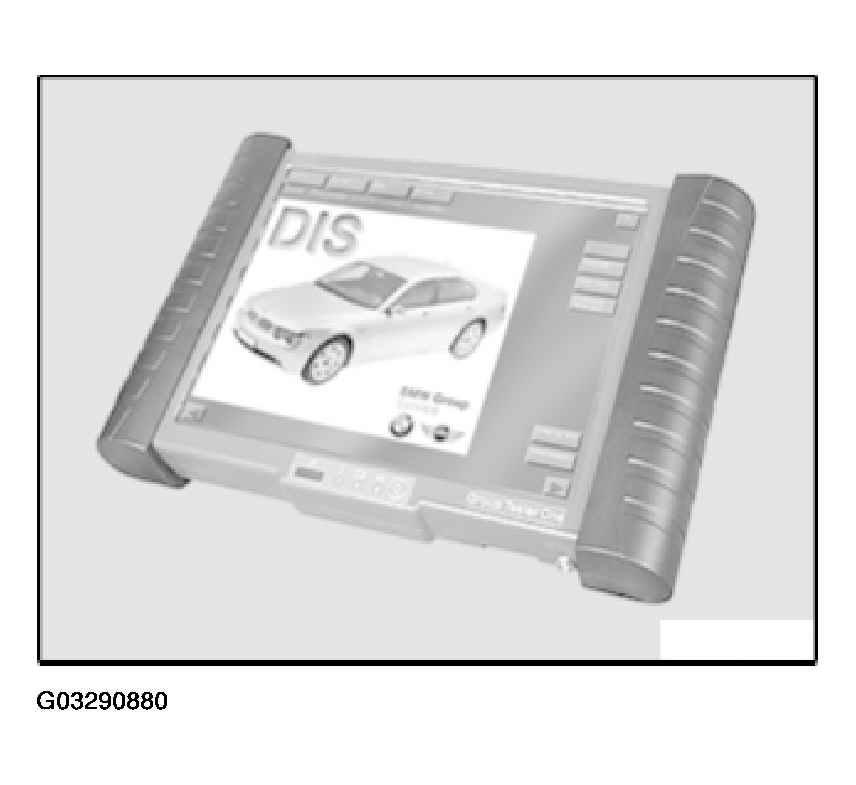

Fig 3: View Of Control Unit

G03290880

Courtesy of BMW OF NORTH AMERICA, INC.
