61 13... Cutting off, stripping insulation and cutting optical fibres to length: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 61 4 320

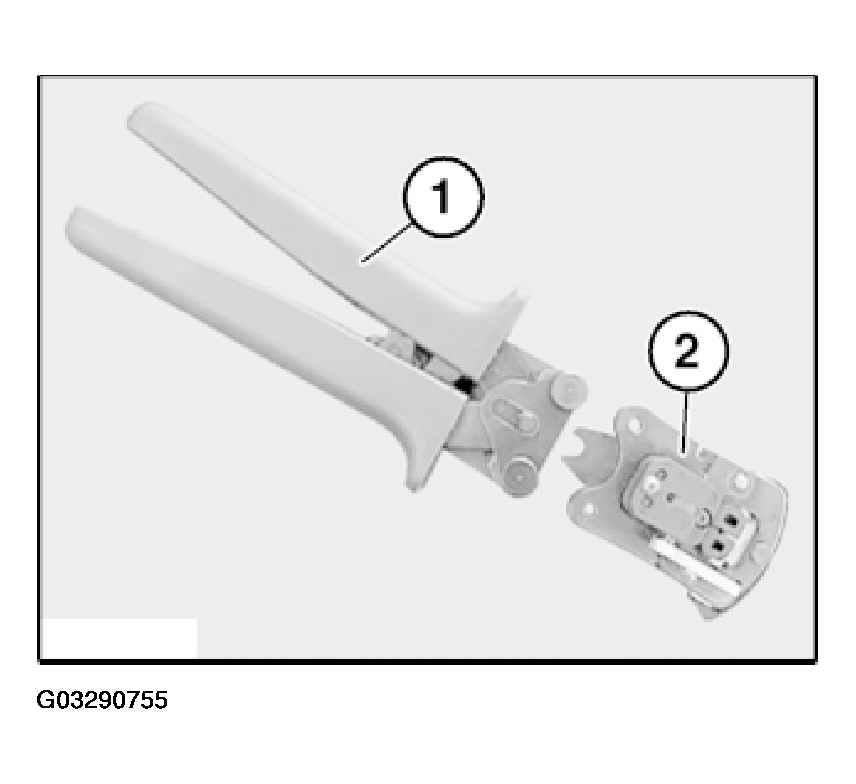

To cut off, strip insulation and cut optical fibres to length, use pliers 61 4 321 (1) in conjunction with crimping head 61 4 322 (2) from crimping set 61 4 320.
NOTE:
Pliers (1) open automatically as far as they will go when handles are pressed together.
