Removing MPQ contacts from contact carrier:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Remove contact carrier (1) with MQS contacts from radio plug.

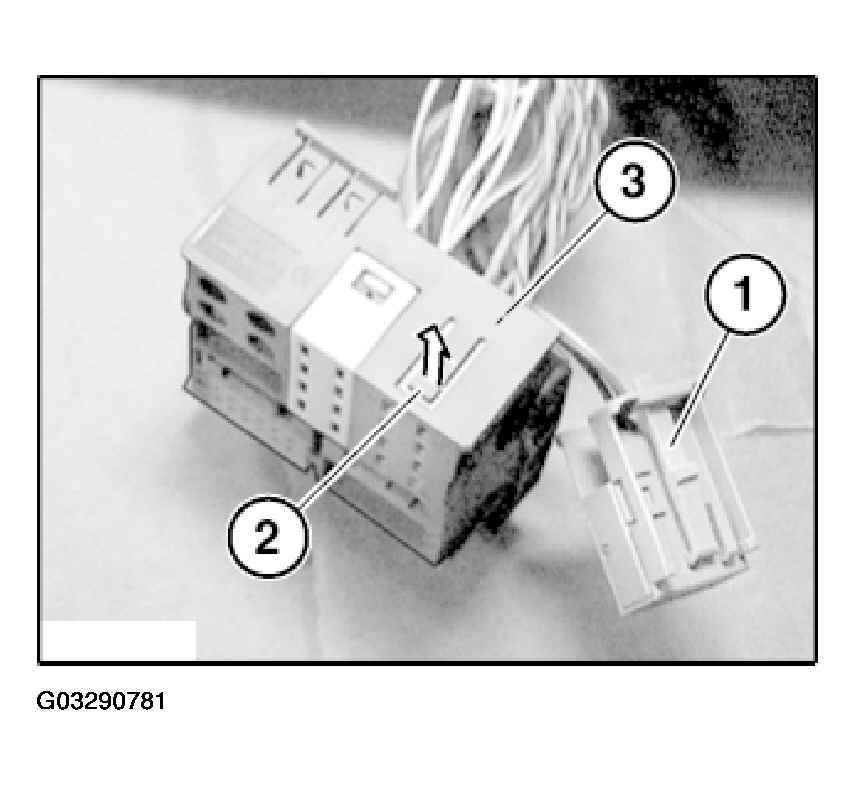

Fig 1: Pulling Contact Carrier Out Of Radio Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Raise lock (2) on radio plug.

Pull contact carrier (3) out of radio plug.

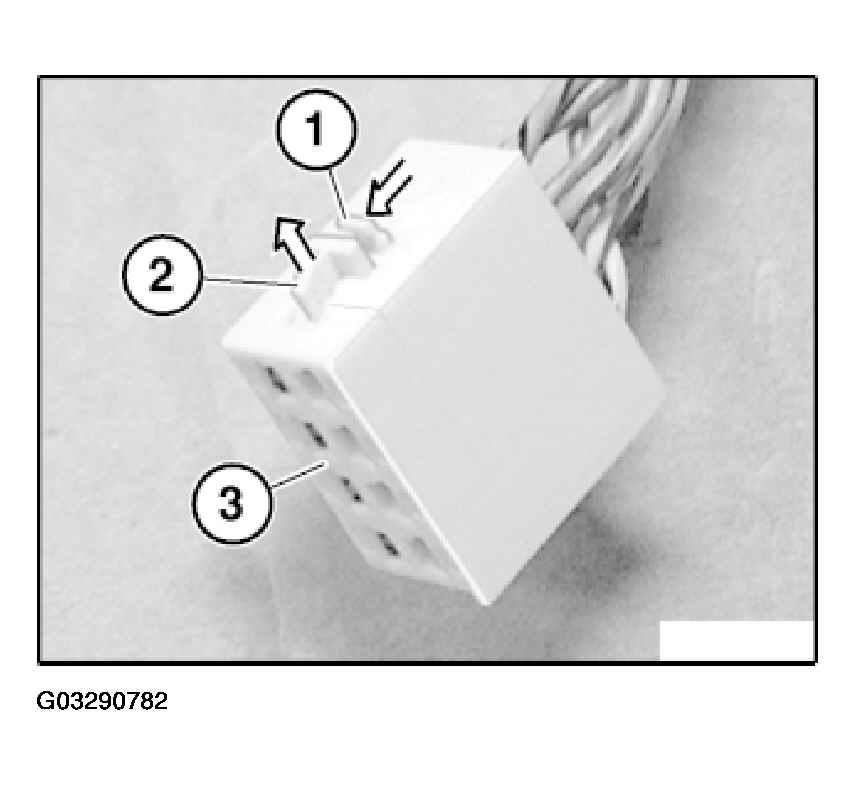

Press lock (1) in direction of arrow.

Fig 2: Pulling Secondary Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Pull secondary lock (2) in direction of arrow completely out of contact carrier (3).

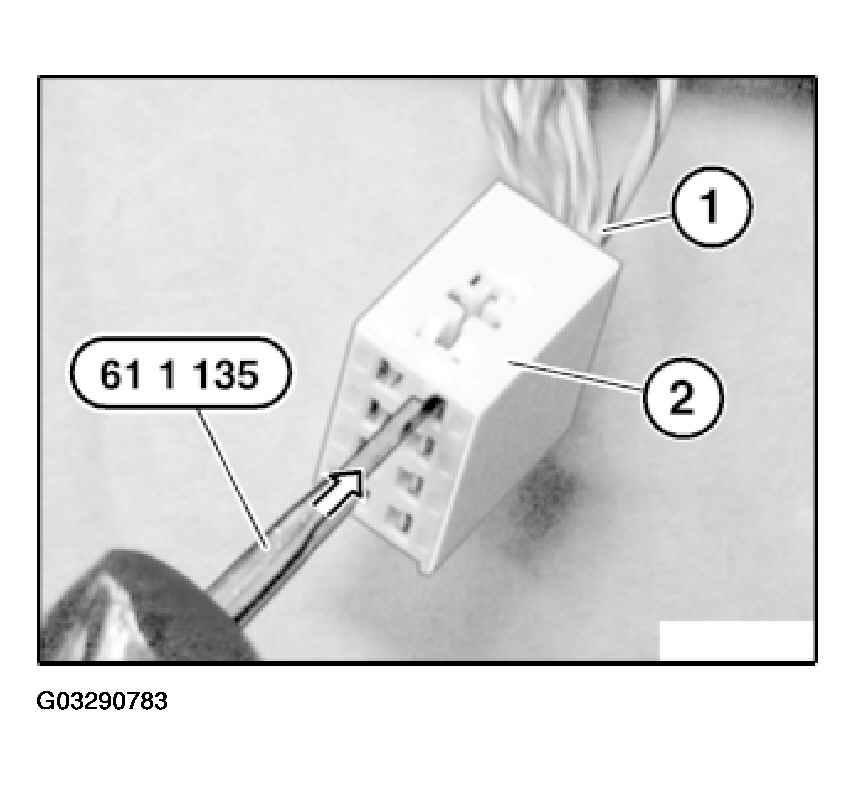

Press special tool 61 1 135 on inside of contact into contact carrier (2).

Fig 3: Pulling Wire With Socket Contact Out Of Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Pull wire with socket contact (1) out of contact carrier (2).
