Removing MQS contacts from contact carrier:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

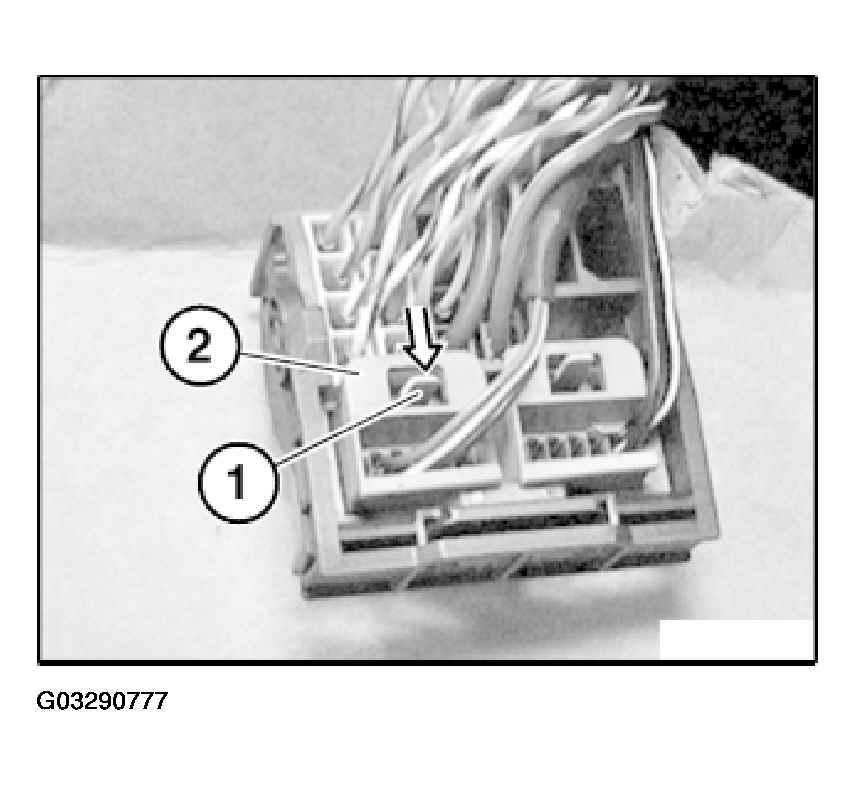

Press lock (1) in direction of arrow and pull housing (2) out of radio plug.

Fig 1: Pressing Lock

Courtesy of BMW OF NORTH AMERICA, INC.

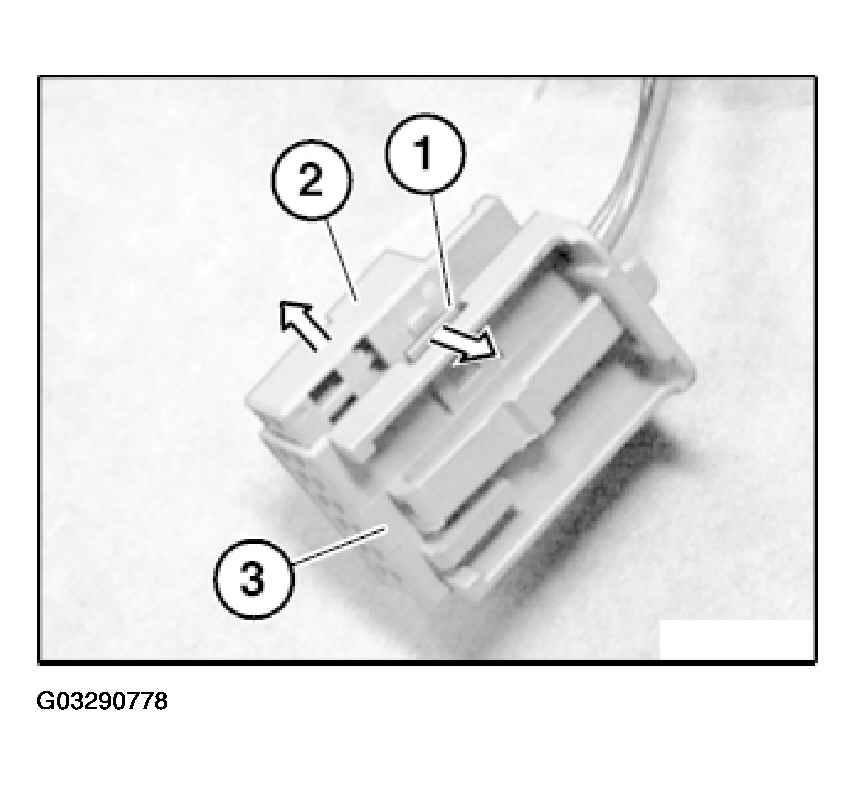

Press lock (1) in direction of arrow. Pull contact carrier (2) out of housing (3).

Fig 2: Pulling Contact Carrier Out Of Housing

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When the contact carrier is pulled out, the secondary locks of the socket contacts are raised.

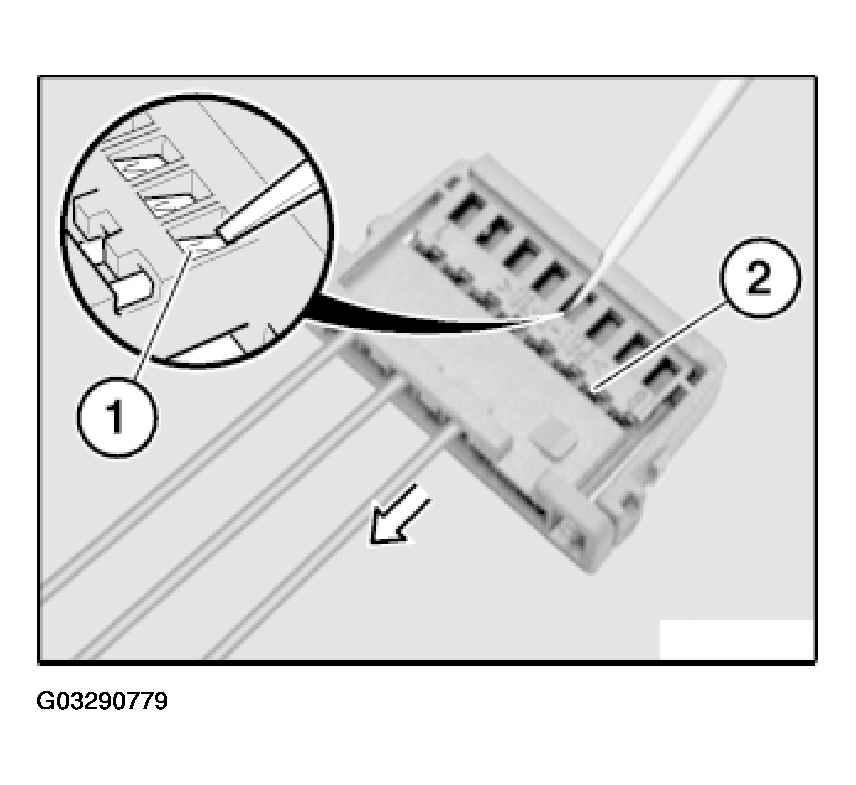

Hold down retaining hook (1) of socket contact in opening of contact carrier with a small screwdriver.

Fig 3: Pulling Wire With Socket Contact

Courtesy of BMW OF NORTH AMERICA, INC.

Pull wire with socket contact in direction of arrow as far as secondary lock (2).

NOTE: The illustration shows an 8-pin socket housing where removal of the contacts is identical.

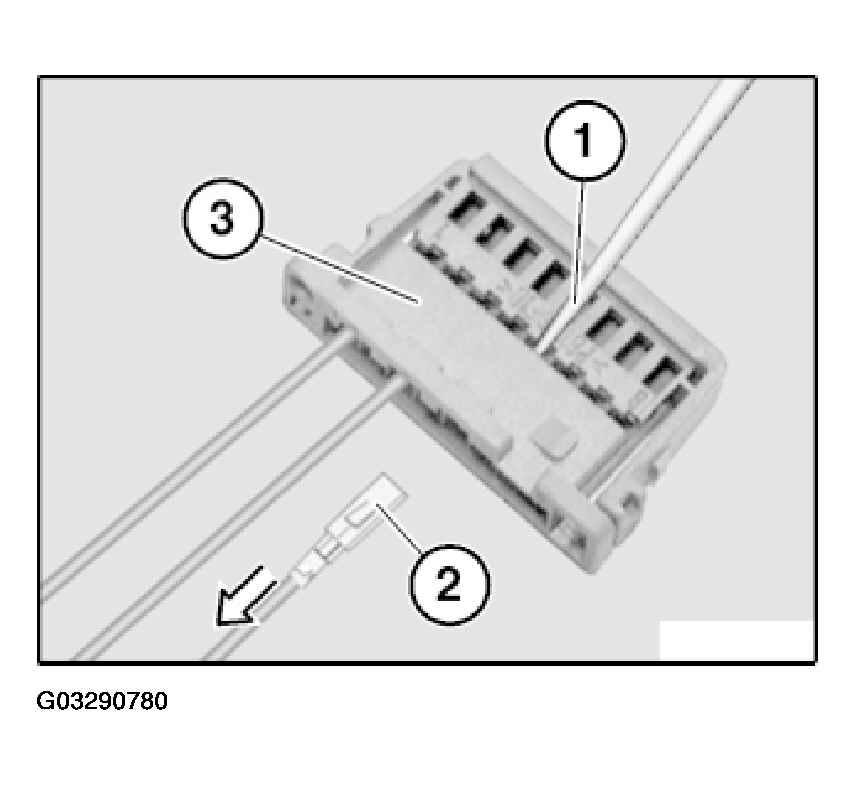

Hold down arrester hook in secondary lock (1) again. Pull wire with socket contact (2) out of contact carrier (3).

Fig 4: Pulling Wire With Socket Contact Out Of Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
