Step 3 (Bluetooth device search)

Press the < Search > button on the IMIB to start searching for the activated vehicle.

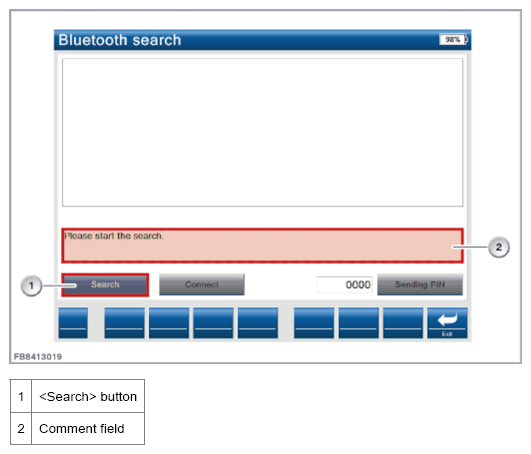

Fig 1: Display - Bluetooth Device Search Screen

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: First of all, the hardware addresses of the Bluetooth devices found are displayed. A built-in filter ensures that only vehicles are found. A connection to other devices is not possible.

The green information bar shows the progress of the search.

Device addresses can be present multiple times in this list.

After the search has been completed, the names of the vehicles with which the IMIB can be paired are displayed.

The complete search process can take up to 30 seconds.

If devices are found, these will be shown as described in point 4.

Fig 2: Display - Bluetooth Devices Found Screen

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Found vehicles respond to the IMIB with their name (brand) and number (the last 5 digits of the vehicle identification number).

Examples:

BMW 17881
MINI 36617
RR 32002

If no devices with a corresponding identification were found, this is shown on the IMIB display and the selection window remains empty.

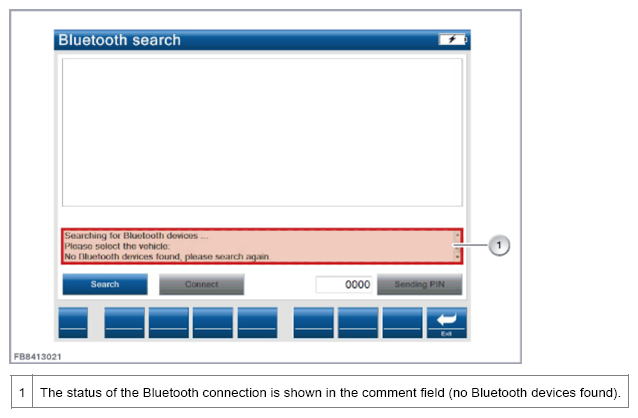

Fig 3: Display - Bluetooth Search Screen

Courtesy of BMW OF NORTH AMERICA, INC.

In this case, repeat the search for the Bluetooth device up to five times as described in step 3.
