Step 5 (For SSP only - Secure Simple Pairing)

Select the vehicle to be connected from the list. Then press < Connect >.

A Bluetooth passkey is shown on the IMIB display. The same Bluetooth passkey must be shown in the vehicle. If the two numbers match, press < OK > in the vehicle to confirm.

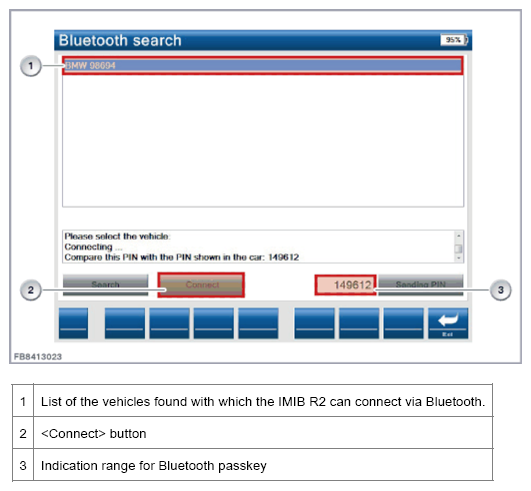

Fig 1: Display - Bluetooth Passkey Screen
G10004015Courtesy of BMW OF NORTH AMERICA, INC.
