66 31 006 Removing And Installing (Replacing) Acc Sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

After installation:

Replacement only:

Adjusting ACC sensor, refer to 66 31 001 ADJUSTING ACC SENSOR
Carry out programming/coding

Build date up to 03/2005:

NOTE: Engine hood is open.

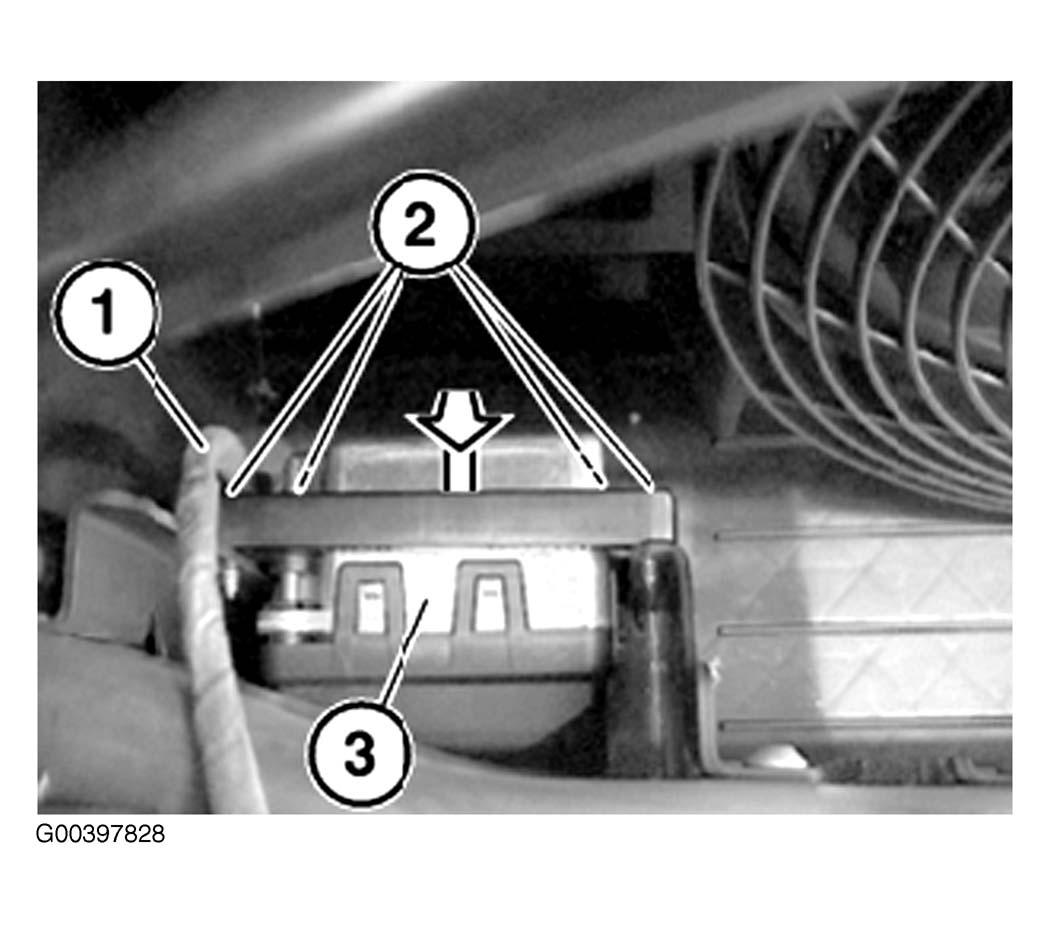

Unclip electric cable (1) from cable guides. Release screws (2). Lever out ACC sensor (3) in direction of arrow and disconnect plug connection underneath. Remove ACC sensor (3).

Fig 1: Removing ACC Sensor

G00397828

Courtesy of BMW OF NORTH AMERICA, INC.

Build date from 03/2005:

Remove trim grille for bumper trim sideways. See 51 11 180 REMOVING AND INSTALLING / REPLACING TRIM GRILLE IN BUMPER TRIM (UP TO 03/2005)

NOTE: Engine hood is open.

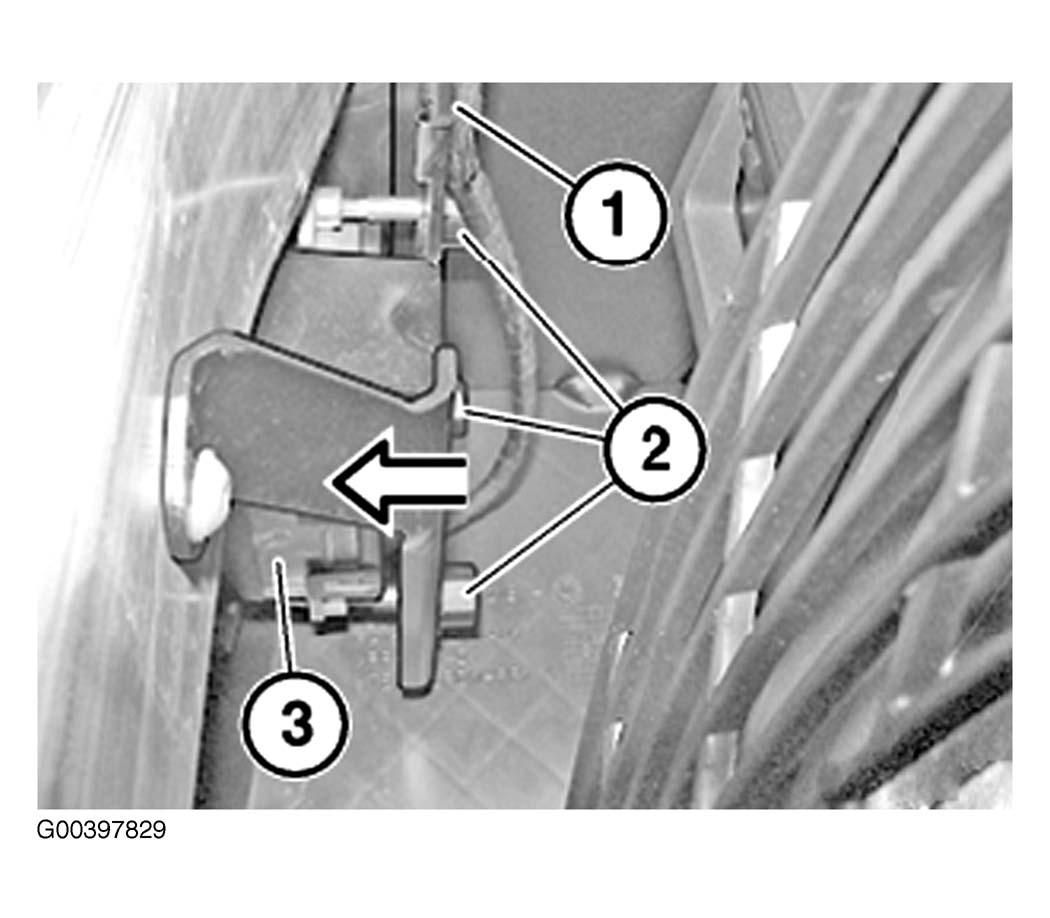

Unclip cable (1) from guide. Release rotary catches (2). Remove ACC sensor (3) in direction of arrow and disconnect plug connection underneath.

Fig 2: Removing ACC Sensor

G00397829

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

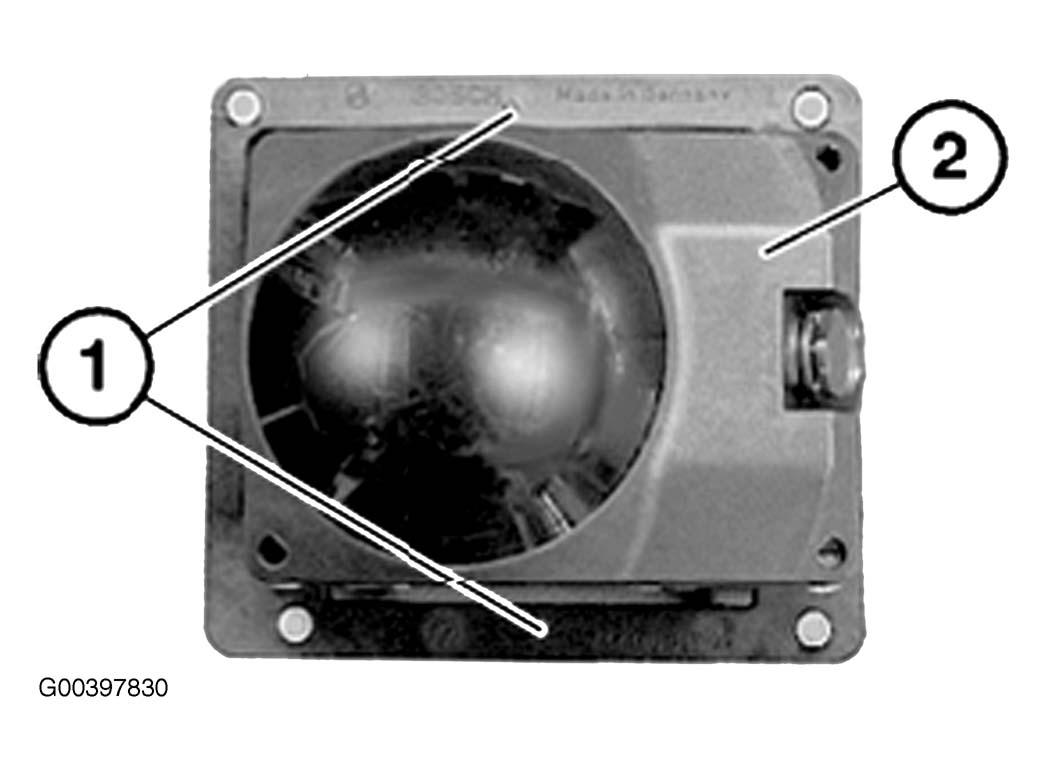

Make sure both guide pins (1) of ACC sensor (2) are correctly seated.

Fig 3: Installing ACC Sensor

G00397830

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

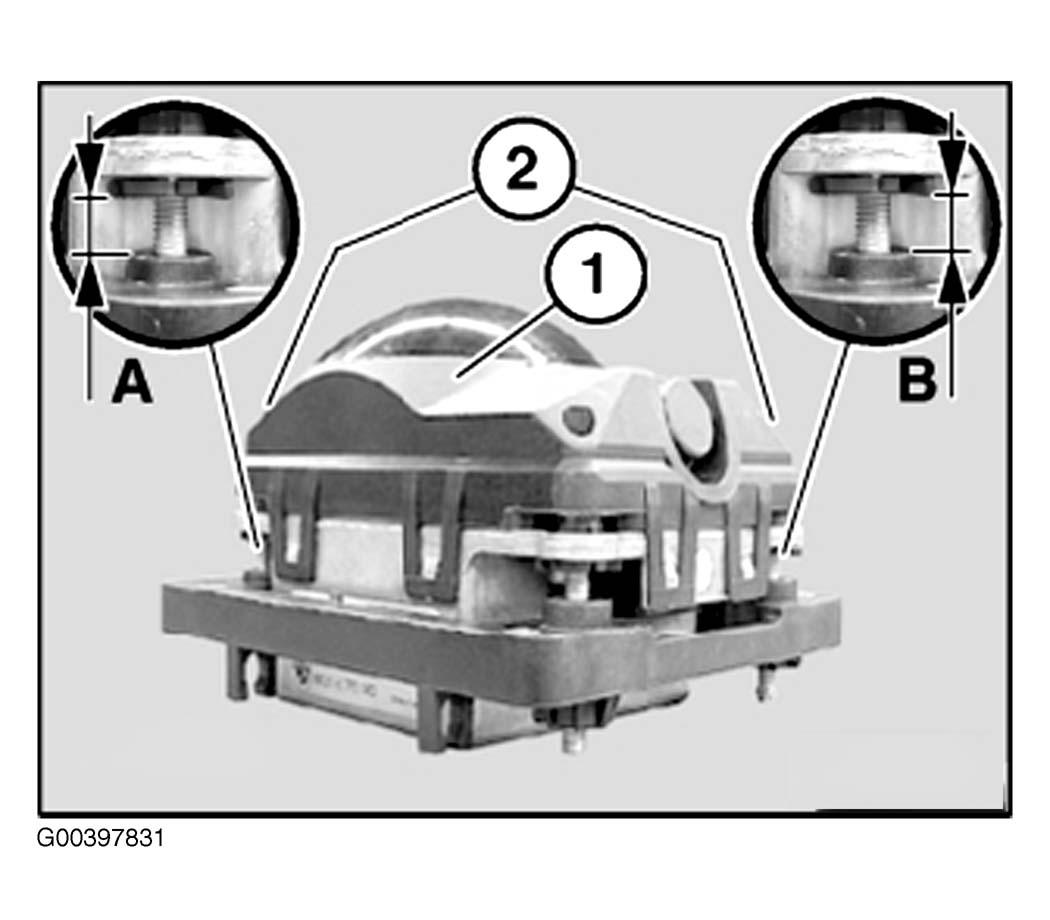

Carry out rough adjustment of ACC sensor (1) at adjusting screws (2).

Measurement A [mm]: 6.35 +/- 0.2
Measurement B [mm]: 4.85 +/- 0.2

Fig 4: Adjusting ACC Sensor

G00397831

Courtesy of BMW OF NORTH AMERICA, INC.
