52 13... Removing And Installing/Replacing Seat Pan And FLEXMAT (Normal/Manual), Left Or Right

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove seat cover with support, refer to 52 13 400 REPLACING SEAT COVER ON LEFT OR RIGHT FRONT SEAT (NORMAL/MANUAL) .

Release left screw (1) and slacken right screw only.

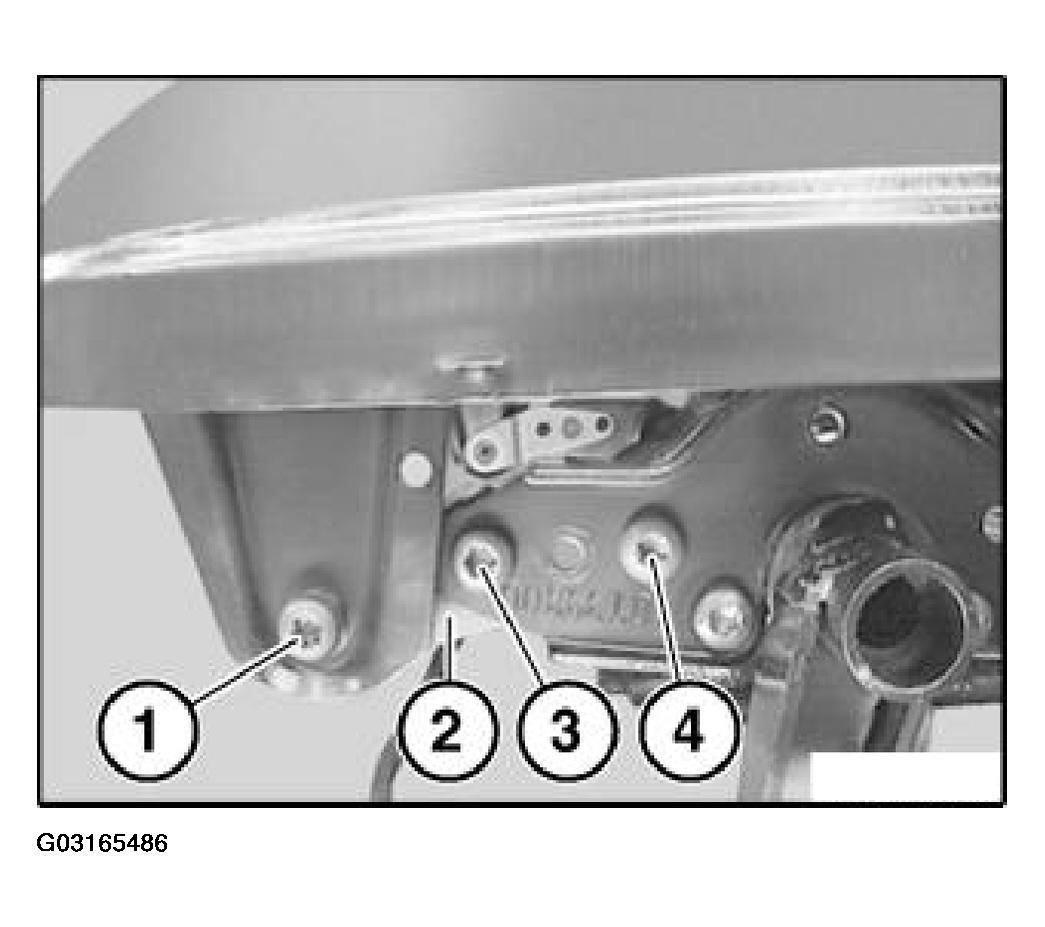

Fig 1: Removing Left Retaining Plate

G03165486

Courtesy of BMW OF NORTH AMERICA, INC.

Release left/right screws (3).

Slacken left/right screws (4) only.

Remove left retaining plate (2) downwards.

Installation:

Tightening torque, 10 +/- 2 Nm.

Press seat pan (1) upwards, thereby relieving tension on flexmat.

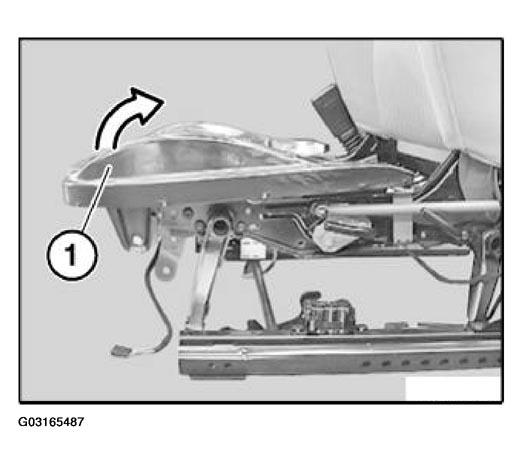

Fig 2: Pressing Seat Pan Upwards

G03165487

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove retaining plates (2).

Installation:

Tightening torque, 10 +/- 2 Nm.

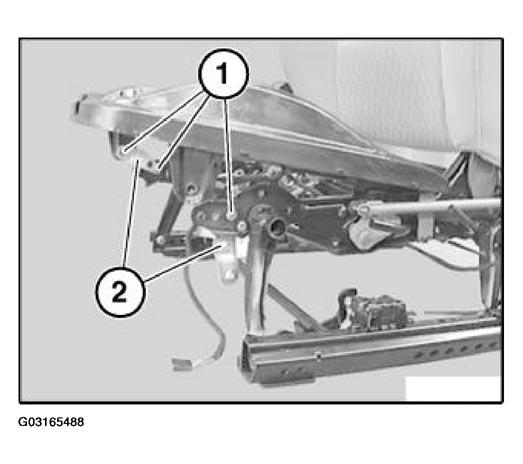

Fig 3: Removing Retaining Plates

G03165488

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook cable (1) from holder (2).

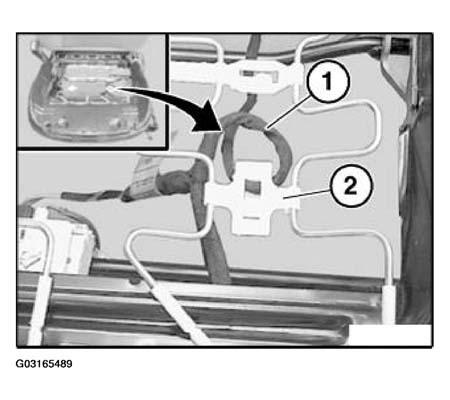

Fig 4: Unhooking Cable From Holder

G03165489

Courtesy of BMW OF NORTH AMERICA, INC.

Turn seat pan (1) upwards.

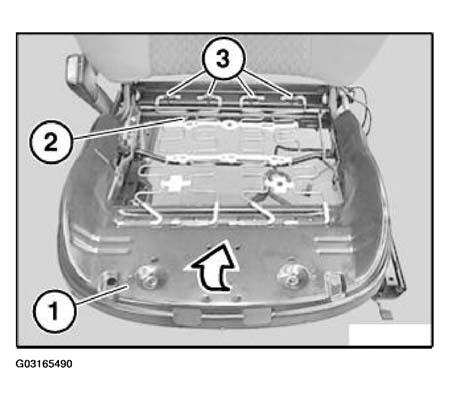

Fig 5: Turning Seat Pan Upwards

G03165490

Courtesy of BMW OF NORTH AMERICA, INC.

Detach flexmat (2) at rear from mounts (3).

Detach seat pan (1) on left/right backwards/top from mount (2) and remove.

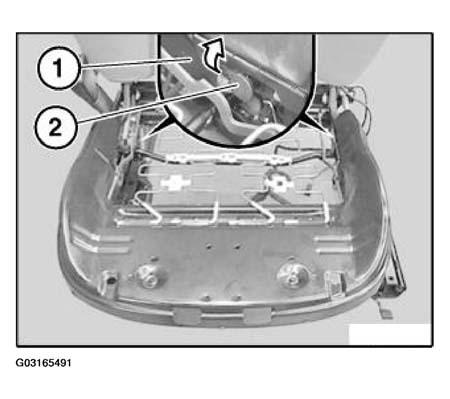

Fig 6: Removing Seat Pan

G03165491

Courtesy of BMW OF NORTH AMERICA, INC.

Detach flexmat (1) from mounts (2) on seat pan (3).

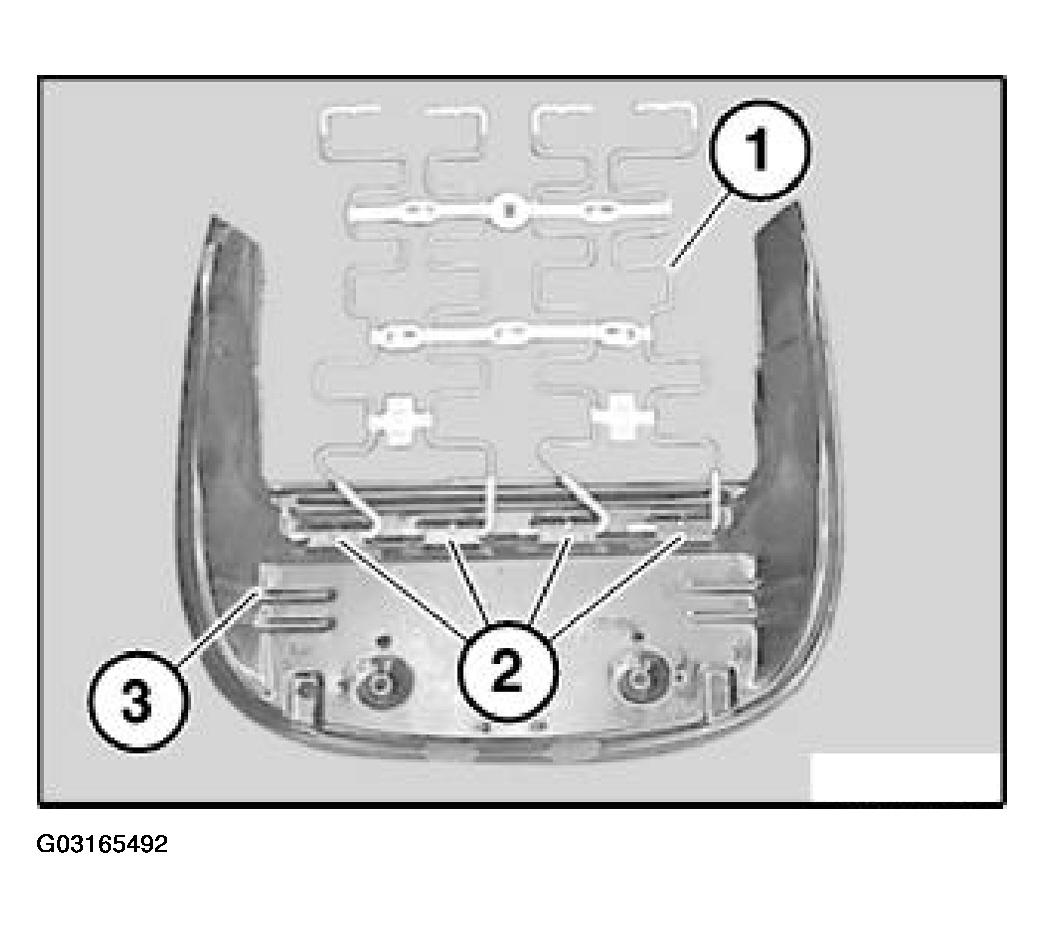

Fig 7: Detaching Flexmat From Mounts On Seat Pan

G03165492

Courtesy of BMW OF NORTH AMERICA, INC.
