33 10 ... Overview of rear differential/output shafts

WARNING: This page is about a different car, the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, and 2007 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

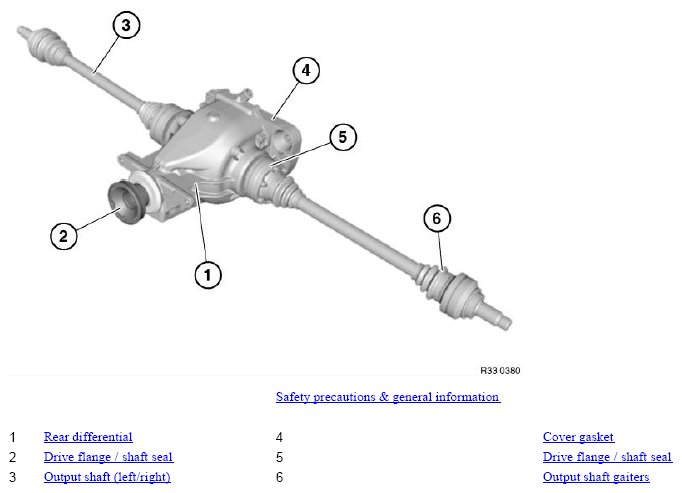

Fig 1: Rear Differential/Output Shafts Components
G04787812Courtesy of BMW OF NORTH AMERICA, INC.
