63 10... Test requirements for headlight vertical aim adjustment

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 BMW 535xi, 2010 BMW 535i, 2009 BMW 535xi, 2009 BMW 535i, and 2008 BMW 535xi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Do not perform headlight adjustment immediately after lowering the vehicle on the vehicle hoist. In this case, move the vehicle for approx. 15 m on its own wheels before adjustment.
IMPORTANT: Refer to the operating instructions for the headlight adjustment device!
Fig 1: Identifying Light Switch
G00526750Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Do not move the vehicle and steering wheel during the measuring and adjustment procedures!
IMPORTANT: A correct measurement/adjustment requires exact positioning of the headlight adjustment device (1)!
Headlight adjustment device (1) must stand vertically to the vehicle longitudinal axis!
This applies to all headlights!

Position headlight adjustment device (1) centrally in front of vehicle (2) at distance (A) = 10 cm  .

Align headlight adjustment device (1) by laser beam (3). Laser beam (3) must hit two suitable points, e.g. marked by arrows.

IMPORTANT: Points must be vehicle proof! Trim panels are not suitable!

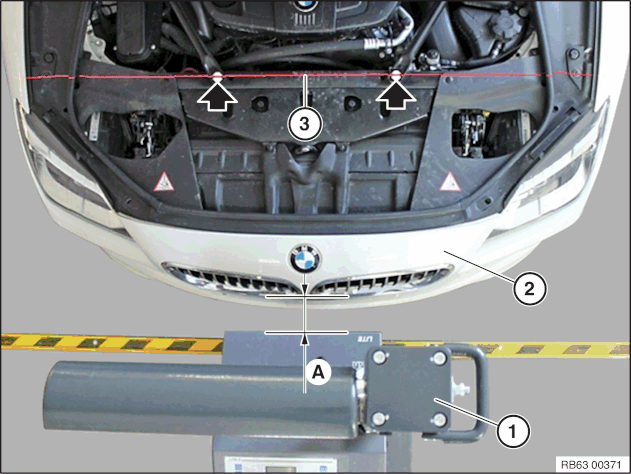

Fig 2: Positioning Headlight Adjustment Device
G00528176Courtesy of BMW OF NORTH AMERICA, INC.

If the headlight adjustment device (1) does not have a laser beam (1), complete the alignment analogous with the line in the mirror.

The center of the collecting lens (1) must match the center of headlight (2) horizontally.

Corrections are made by raising or lowering the headlight adjustment device.

Fig 3: Center Of Collecting Lens (1) Must Match Centre Of Headlight
G00526752Courtesy of BMW OF NORTH AMERICA, INC.

When positioned correctly, the light/dark boundary of the headlight (marked with arrow) must hit the collecting lens of the adjusting device in the center:

  1. The headlight adjusting device is too low.
  2. The headlight adjusting device is positioned correctly.
  3. The headlight adjusting device is too high.
Fig 4: Light/Dark Boundary Of Headlight (Marked With Arrow) Must Hit Collecting Lens
G00526753Courtesy of BMW OF NORTH AMERICA, INC.

The center of the collecting lens (1) must match the center of headlight (2) vertically. Corrections are made by sliding the side of the headlight adjusting device to the left or right.

Fig 5: Center Of Collecting Lens (1) Must Match Center Of Headlight Vertically
G00526754Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The figure shows an example for the transparent screen of halogen headlights.

See Transparent screens of different headlight types (halogen, xenon, LED) .

Set marker line {M} on aimer to {e}. Scale graduations on the headlight adjustment device are equal to a gradient in cm at a distance of 10 meters.

Light/dark boundary of headlights in the headlight adjustment device:

{e} Setting dimension, headlights:

Setting dimension, fog lights:

{H} Height of center of headlight above parking surface.

{h} {H} - {e} = height of marking line above parking surface

+ Central mark = center point of high-beam headlight.

{M} Marker line of the headlight adjustment device

{S} Standing surface of the vehicle and headlight adjustment device

NOTE: Adjustment dimension {e} is only valid for EUR. Observe differing national regulations.
Fig 6: Headlight Vertical Aiming Screen
G04727689Courtesy of BMW OF NORTH AMERICA, INC.
