61 35... Overview of control units, equipment mounting, luggage compartment

WARNING: This page is about a different car, the 2010 BMW 550i, 2009 BMW 550i, and 2008 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.

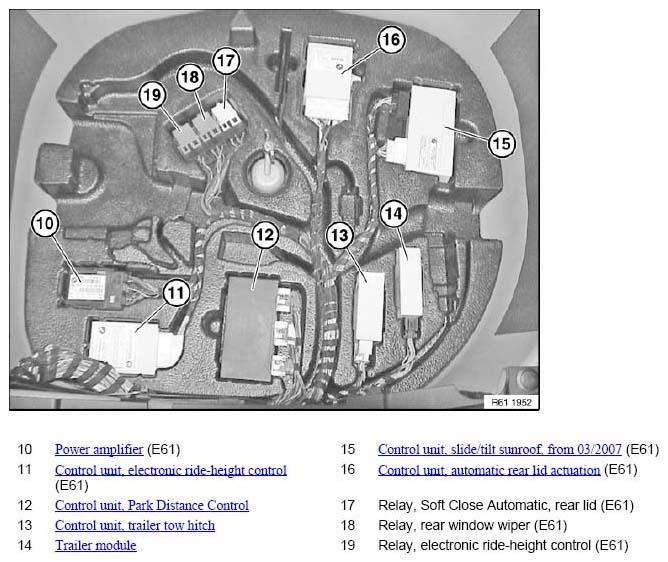

Fig 1: Overview Of Control Units, Luggage Compartment
G05513643Courtesy of BMW OF NORTH AMERICA, INC.
