31 35 005 Removing And Installing/Replacing Push Rod (Stabilizer Link) For Left/Right Stabilizer

WARNING: This page is about a different car, the 2010 BMW 135i, 2009 BMW 135i, and 2008 BMW 135i. However, it is still accessible from the selected car via links, so may be relevant.

Note (M3 only):

Make sure stabilizer link is installed in correct position.

Connection, stabilizer link to spring strut
Connection, stabilizer link to stabilizer

Fig 1: Identifying Stabilizer Link And Spring Strut Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) and remove bracket for brake hose.

Release nut (3) and remove stabilizer link (2).

Installation:

Replace self-locking nuts.

Tightening torque. Refer to 31 35 2AZ in 31 35 STABILIZER BAR .

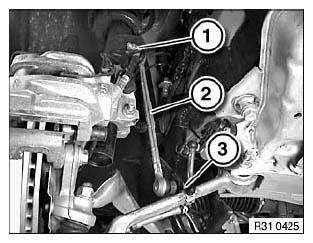

Fig 2: Identifying Stabilizer Link And Nut

Courtesy of BMW OF NORTH AMERICA, INC.
