61 31 118 Removing and installing/replacing power window switch (passenger side)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

NOTE:

See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

IMPORTANT: Carry out the following operation carefully so as to avoid damaging the door trim panel and switch.
If necessary, tape off working area.

Lever power window switch (1) with special tool 00 9 317 in direction of arrow out of armrest.

Disconnect associated plug connection and remove power window switch (1).

Fig 1: Removing Power Window Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining hooks (1) of power window switch (2) must not be damaged.

Make sure power window switch (2) is correctly seated in armrest.

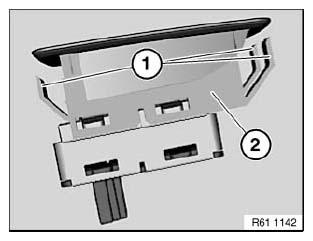

Fig 2: Identifying Power Window Switch And Retaining Hooks

Courtesy of BMW OF NORTH AMERICA, INC.
