84 11 510 Removing and installing/replacing eject box

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, remove telephone from eject box.

Lift out storage tray. Refer to 51 16 200 REMOVING AND INSTALLING CENTER CONSOLE .

Loosen screws.

Remove eject box.

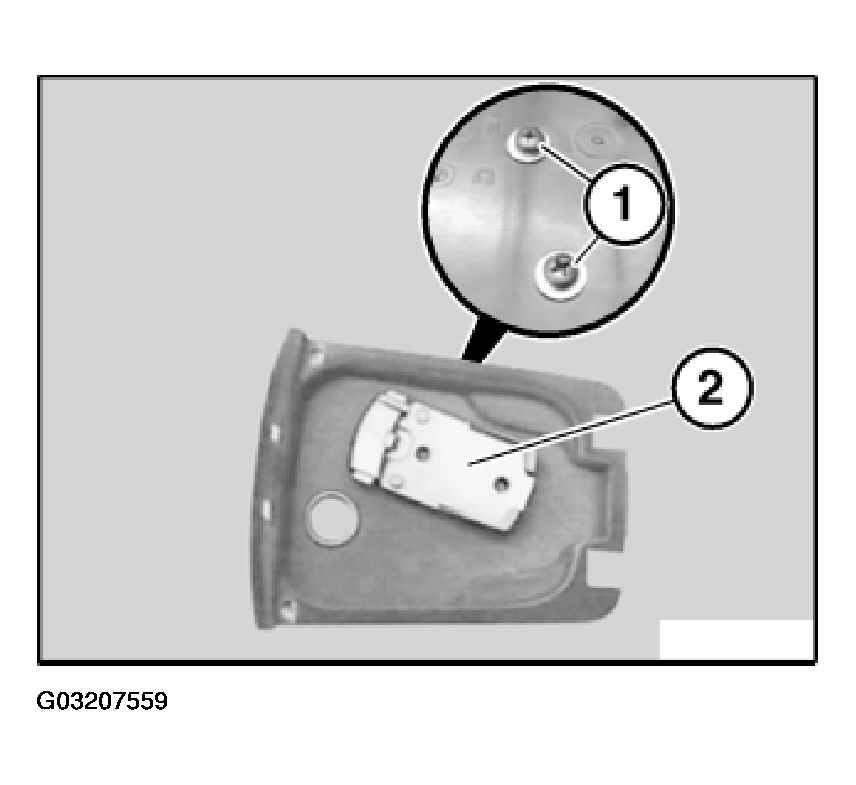

Fig 1: Removing Eject Box
G03207559Courtesy of BMW OF NORTH AMERICA, INC.
