84 21 520 Removing and installing/replacing line compensator (cellular phone)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove storage compartment at rear left. Refer to 51 16 240 REMOVING AND INSTALLING REAR STORAGE COMPARTMENT .

NOTE: For purposes of clarity, illustration does not show control unit for hands-free facility.

Disconnect plug connection (1).

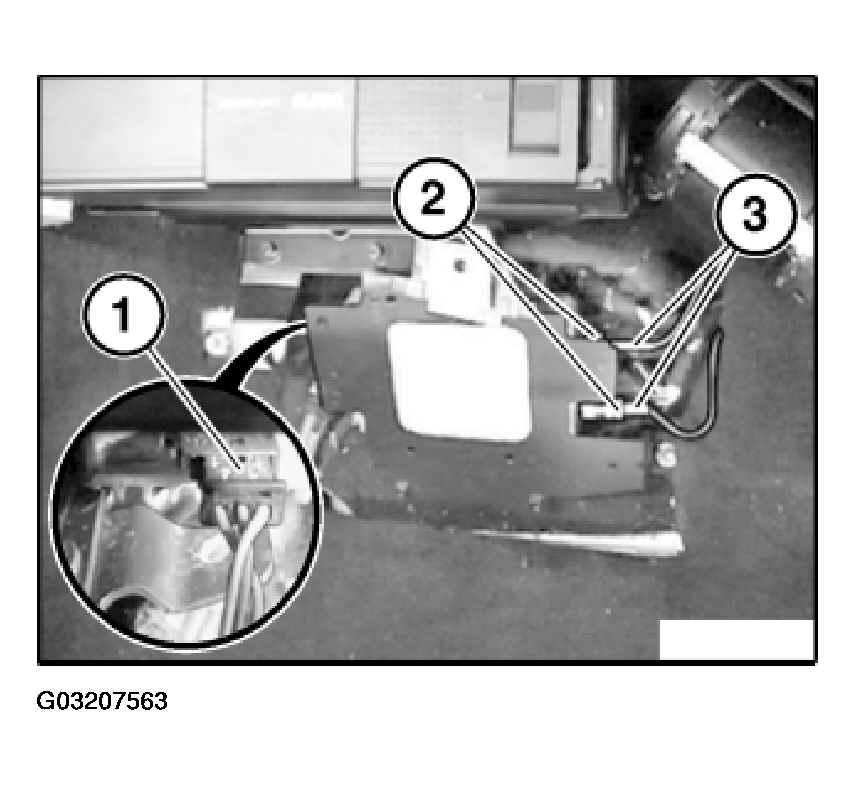

Fig 1: Disconnecting Antenna Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Release knurled nuts (2) and disconnect antenna plug (3).

NOTE: For purposes of clarity, illustration does not show control unit for hands-free facility.

Unscrew nuts (1).

Pull out line compensator (2) in direction of arrow.

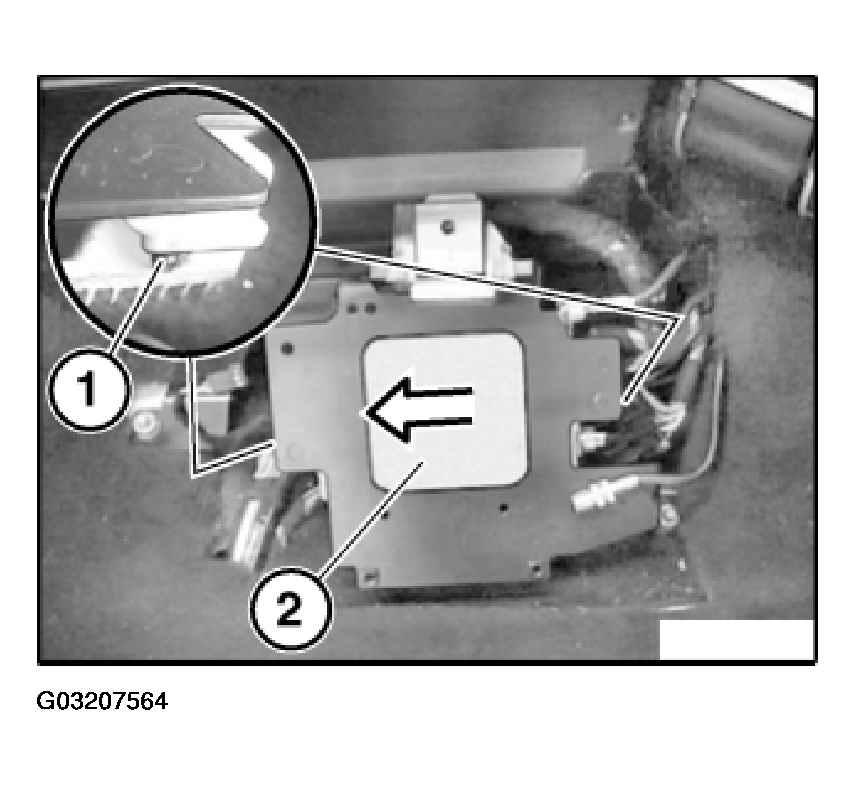

Fig 2: Pulling Out Line Compensator

Courtesy of BMW OF NORTH AMERICA, INC.
