52 17... Removing and installing/replacing support for outer cover on front seat

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2015 BMW Alpina B7L xDrive, 2015 BMW Alpina B7 xDrive, 2015 BMW 750i xDrive, 2015 BMW 750Li xDrive, and 2015 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This removing/installing/replacing procedure applies to "Comfort" seat version.

Necessary preliminary work:

Remove SWITCH COMBINATION FOR SEAT ADJUSTMENT .

Drill out blind rivets (1).

IMPORTANT:

Use drill of correct diameter.

Make sure that support (2) and seat mechanism are not damaged.

Remove remnants of rivets.

Remove support (2).

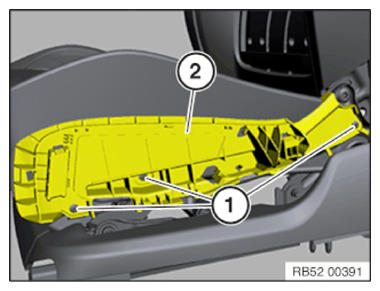

Fig 1: Identifying Seat Mechanism Support And Rivets

Courtesy of BMW OF NORTH AMERICA, INC.
