66 31 020 Removing and installing/replacing left or right short-range sensor (SRR sensor): Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: To ensure correct SRR operation, there must be no mechanical damage (e.g. dents) to the bumper in the sensor area, nor must filler work or multilayer paintwork (more than two paint coats) have been carried out.

Necessary preliminary tasks:

Remove front BUMPER TRIM

Unlock plug connection (1) on SRR (2) and disconnect.

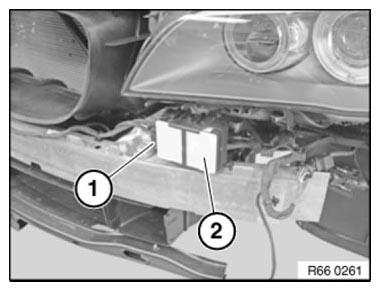

Fig 1: Identifying Plug Connection And SRR

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, component shown removed!

Lever SRR (1) with a suitable tool (3) from holder (4).

Retaining lug (2) on holder (4) must be exposed.

Slide SRR (1) in direction of arrow out of holder (4).

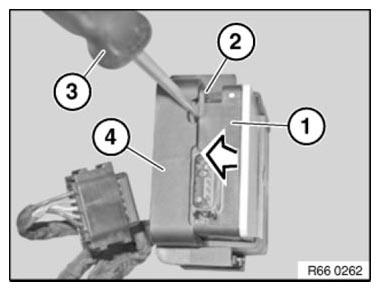

Fig 2: Sliding SRR From Holder Using Suitable Tool

Courtesy of BMW OF NORTH AMERICA, INC.
