51 11... Removing and installing/replacing holder for side view camera on left or right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove SIDE VIEW VIDEO CAMERA
Pull side view video camera holder off bumper with a suitable tool (holder is secured with double-sided adhesive tape).

Installation:

Holder (1) is encoded against incorrect installation.

Identification (2) indicates on which side of the vehicle holder (1) is stuck in.

For installation position observe shape of holder (1).

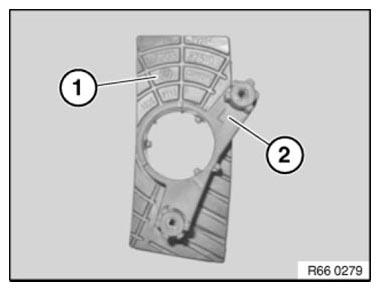

Fig 1: Identifying Holder And Identification Mark

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean bonding surface on bumper trim (4) and remove adhesive residues.

To position holder (1) optimally, pre-install camera (3) on holder (1) before sticking in the holder.

Outer edge (2) on holder (1) must be flush with outer bumper edge (4).

Fig 2: Identifying Holder, Bumper Trim, Outer Edge And Pre-Install Camera

Courtesy of BMW OF NORTH AMERICA, INC.
