Cylinder head
WARNING: This page does not describe the selected car, but rather 45 other vehicles, including the 2016 BMW M5, 2016 BMW 550i xDrive, 2016 BMW 550i, 2016 BMW 535i xDrive, and 2016 BMW 535i. However, it is still accessible from the selected car via links, so may be relevant.
The cylinder head of the motor S63 TOP is a new innovation with integrated air ducts for the crankcase ventilation. The oil circuit has also been revised and adjusted to the increased power. The third generation of the Valvetronic is used with the engine S63 TOP as with the engine N55.
A new three-layer spring steel seal is used as a cylinder head gasket. The contact surfaces to the cylinder head and engine block are equipped with an anti-stick coating.

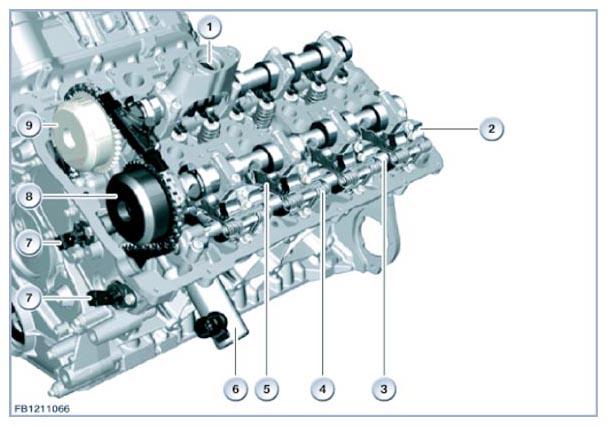

The graphic below shows components that are installed in the cylinder head.
| Index | Explanation |
|---|---|
| 1 | Flange for high pressure pump |
| 2 | Gate |
| 3 | Eccentric shaft |
| 4 | Spring |
| 5 | Intermediate lever |
| 6 | Valvetronic servomotor |
| 7 | VANOS solenoid valve for intake and exhaust |
| 8 | VANOS, intake side |
| 9 | VANOS, exhaust side |
