84 11 523 Removing and installing/replacing transceiver
WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Remove luggage compartment floor trim panel. Refer to 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL .
Remove flap in luggage compartment trim panel on left. Refer to 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .
If necessary, remove warning triangle.
Detach left cover. Refer to 51 46 050 REMOVING AND INSTALLING/REPLACING FINISHER FOR TOP OF REAR APRON .

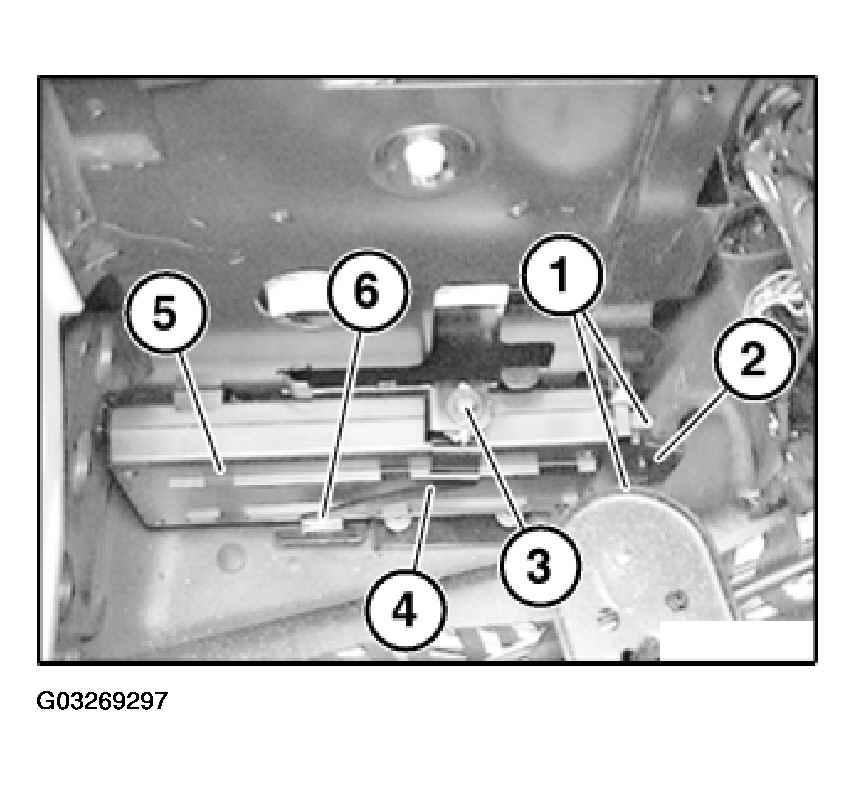

Release knurled screws (1) and disconnect plug connection (2).
Release screw (3) and remove mount (4) of transceiver.
Remove transceiver (5).
Installation:
Snap guide into mount (6).
