12 52 005 Removing And Installing/Replacing Integrated Supply Module (N73)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2006 BMW 760i, 2006 BMW 760Li, 2005 BMW 760i, 2005 BMW 760Li, and 2004 BMW 760i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Read fault memory.
- Switch off ignition.
- Follow instructions for disconnecting and connecting battery. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
Disconnect battery.
Remove right fresh air duct. Refer to 64 31 056 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT FRESH-AIR DUCT (AUTOMATIC A/C HIGH) .

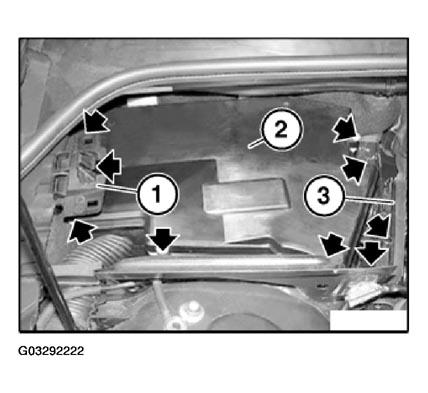

Release screw and remove holder (1).
Release screws and remove cover (2) from control unit box.
NOTE:
Release screws on seal (3) only when removing wiring harness.
Installation:

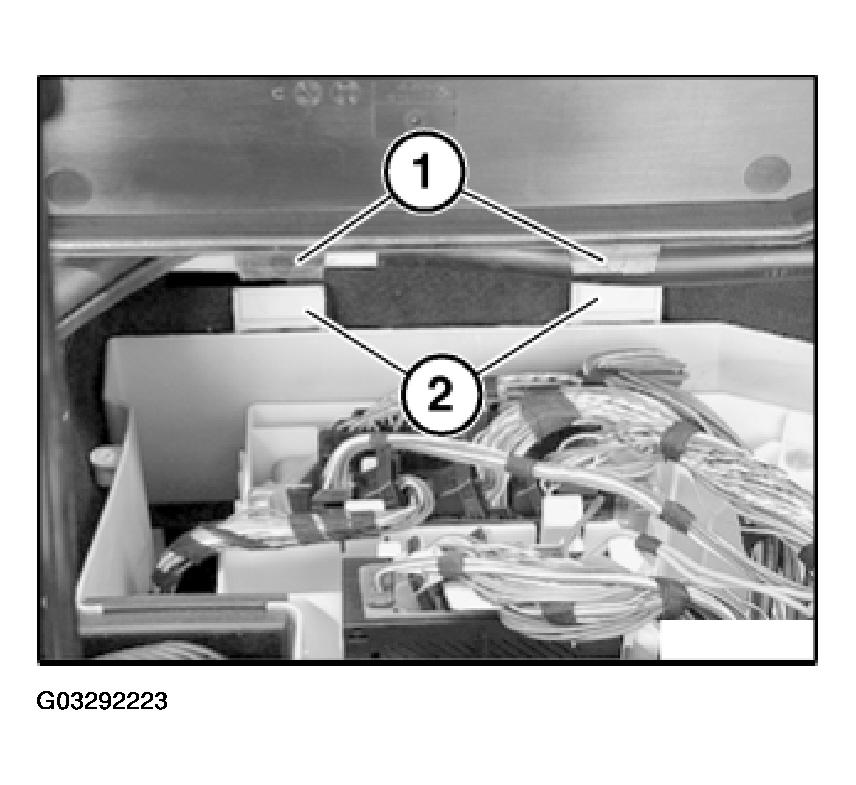

Insert tabs (1) in openings (2) and close cover.
Unlock plug connections on integrated supply module (1) and disconnect.
Remove integrated supply module (1).
Assemble vehicle.
Check function of DME.
