61 31 203 Replacing Switch Combination For Seat Adjustment

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

Special Tools Required:

00 9 341

Remove and install center armrest (front). Refer to 51 16 195 REMOVING AND INSTALLING CENTER ARMREST (FRONT) .

CAUTION: Set down center armrest on a suitable surface.

Release screws (1).

Lever out front center armrest trim (2) with special tool 00 9 341 and remove and direction of arrow.

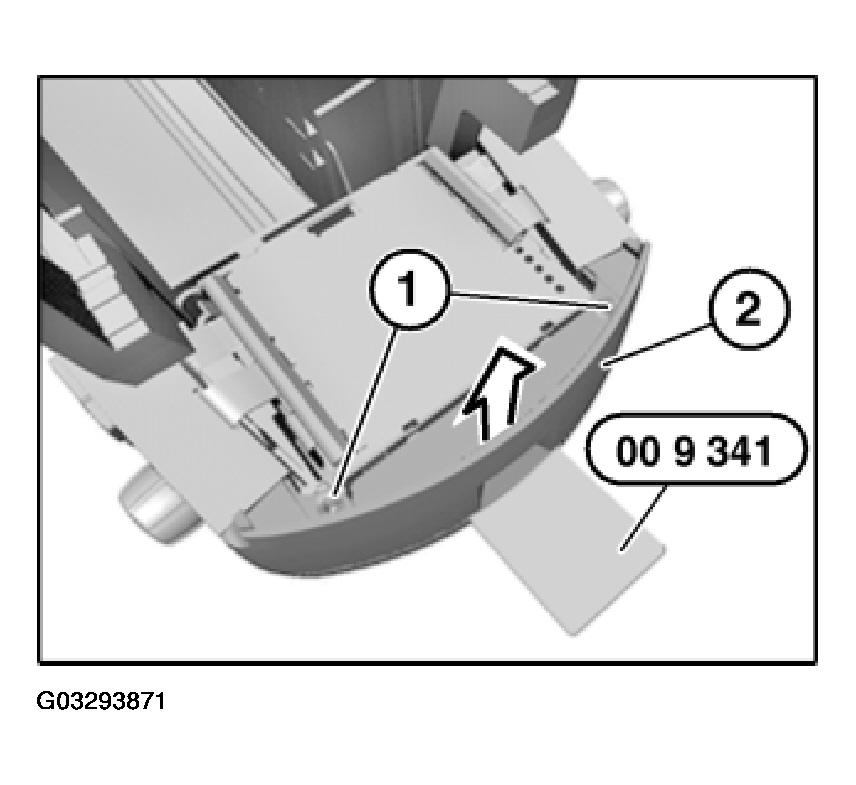

Fig 1: Screws, Center Armrest Trim, Special Tool (00 9 341) And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1).

Fig 2: Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Feed out switch combination for seat adjustment (2) in direction of arrow.

Fig 3: Seat Adjustment Switch Combination, Screws And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure guides (1) are correctly seated in mountings (2).

Fig 4: Guides And Mountings

Courtesy of BMW OF NORTH AMERICA, INC.
