84 11 610 Removing And Installing/Replacing Eject Box (Cordless Keypad Handset)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW 760i, 2005 BMW 760i, 2005 BMW 760Li, 2004 BMW 760i, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL .

Special Tools Required:

00 9 322
00 9 341

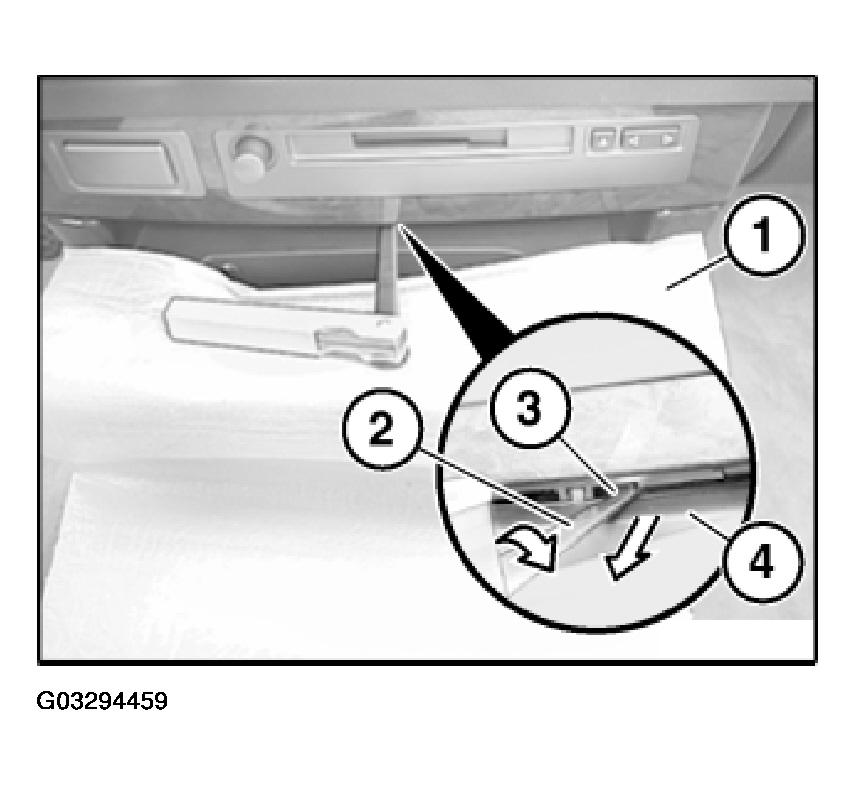

Unlock and open storage tray (drawer).

CAUTION: To avoid scratches, cover decorative trims with a protective cover (1).

Detach storage tray (4) as follows from function carrier:

Release lock (3) by turning with a 1 mm feeler gauge (2).
Pull storage tray (4) towards rear out of function carrier and set down on protective cover (1).

Fig 1: Detaching Storage Tray
Courtesy of BMW OF NORTH AMERICA, INC.

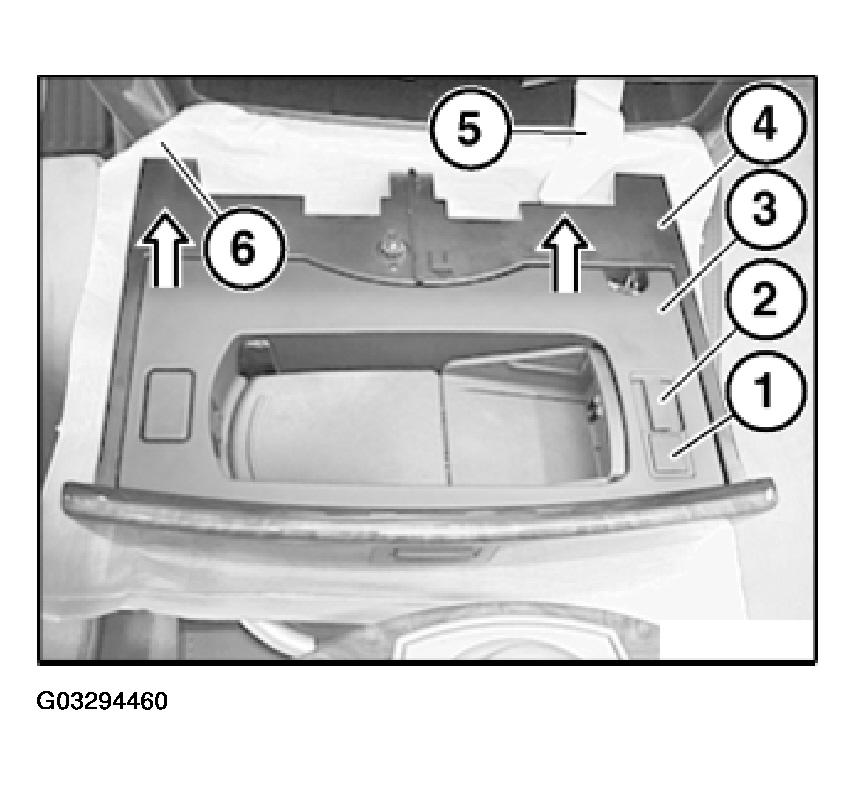

Press button (1) and remove SIM card holder (2).

NOTE: Follows next work step for removal (risk of damage).

Special tools 00 9 322 and 00 9 341 required.

Lever cover (3) in direction of arrow out of storage tray (4).

CAUTION: Do not damage ribbon cable (5).

NOTE: (6) = Protective cover.

Fig 2: Removing SIM Card Holder

G03294460

Courtesy of BMW OF NORTH AMERICA, INC.

Removing:

If fitted, release catches (4) with special tool 00 9 322.

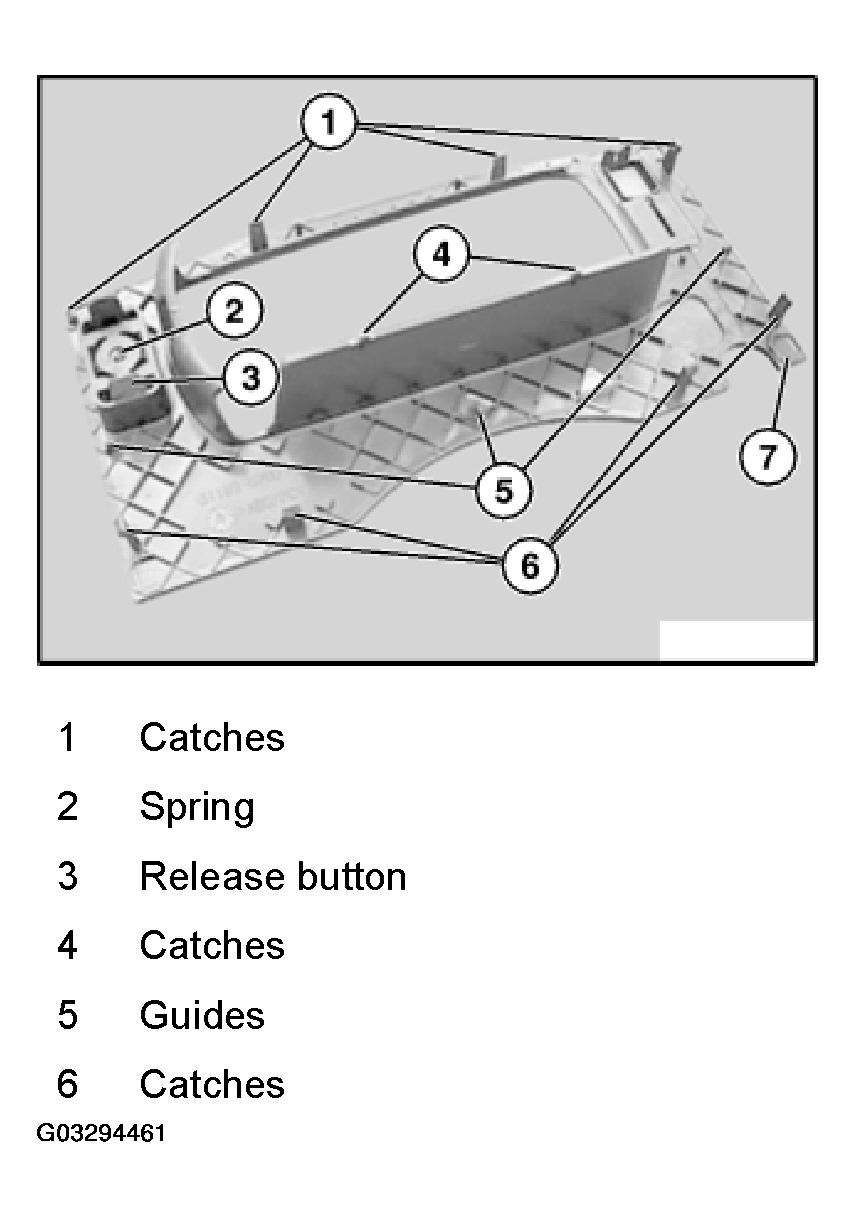

Installation:

Following parts of cover (7) must not be damaged or missing:

Fig 3: Identifying Catches On Cover

G03294461

Courtesy of BMW OF NORTH AMERICA, INC.

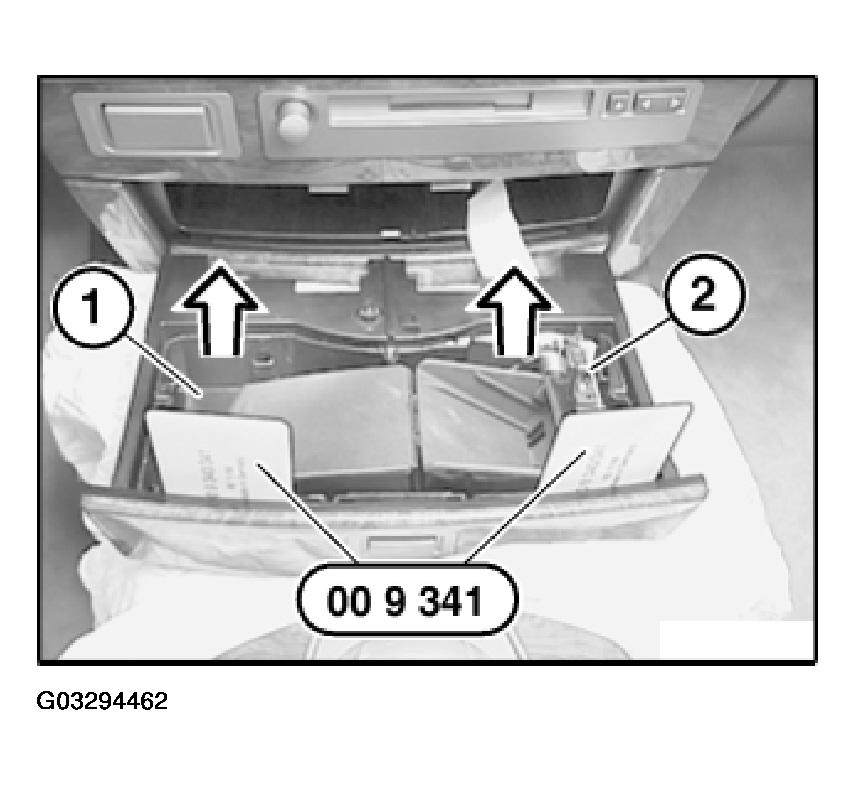

CAUTION: Do not under any circumstances touch circuit board (2) with hands (risk of damage).

Using special tool 00 9 341, unlock insert (1) and pull out slightly in direction of arrow.

Fig 4: Removing Insert With Special Tool

G03294462

Courtesy of BMW OF NORTH AMERICA, INC.

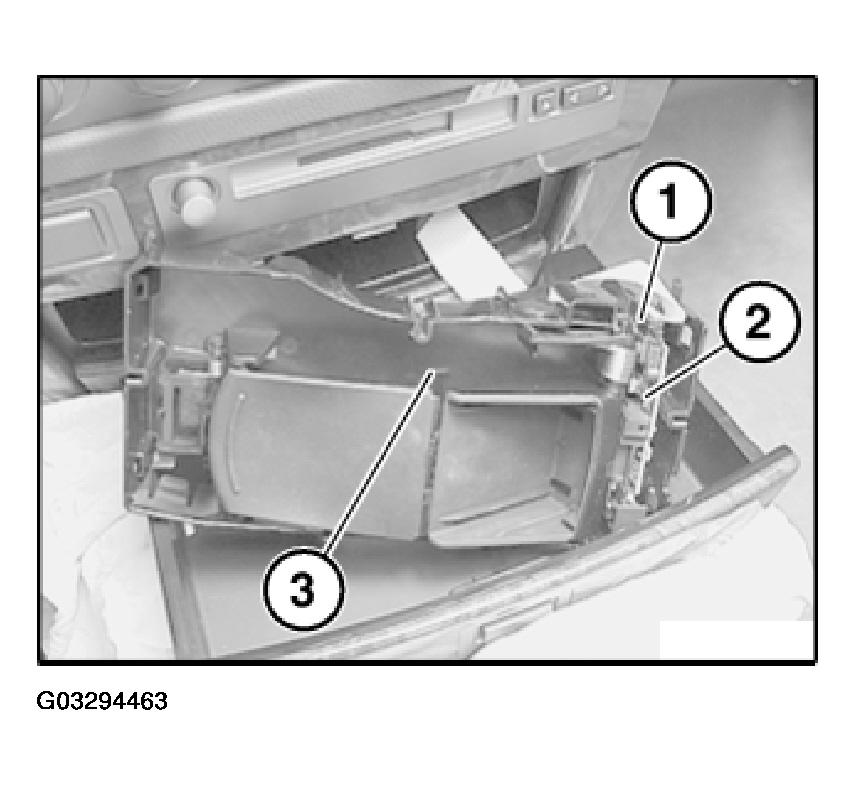

CAUTION: Do not under any circumstances touch circuit board (2) with hands (risk of damage).

Disconnect plug connection (1).

Remove insert (3).

Fig 5: Disconnecting Plug Connection And Removing Insert

G03294463

Courtesy of BMW OF NORTH AMERICA, INC.

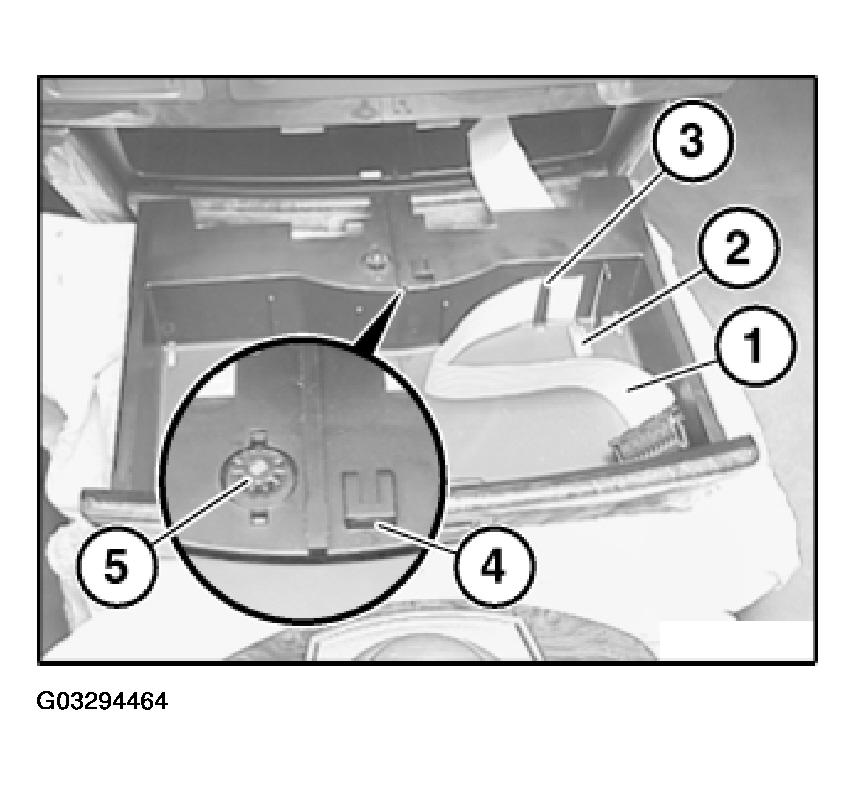

Installation:

Ribbon cable (1) must be laid in guide (3).

Stop (4) and damper (5) must not be damaged.

Fig 6: Locating Stop And Damper

G03294464

Courtesy of BMW OF NORTH AMERICA, INC.

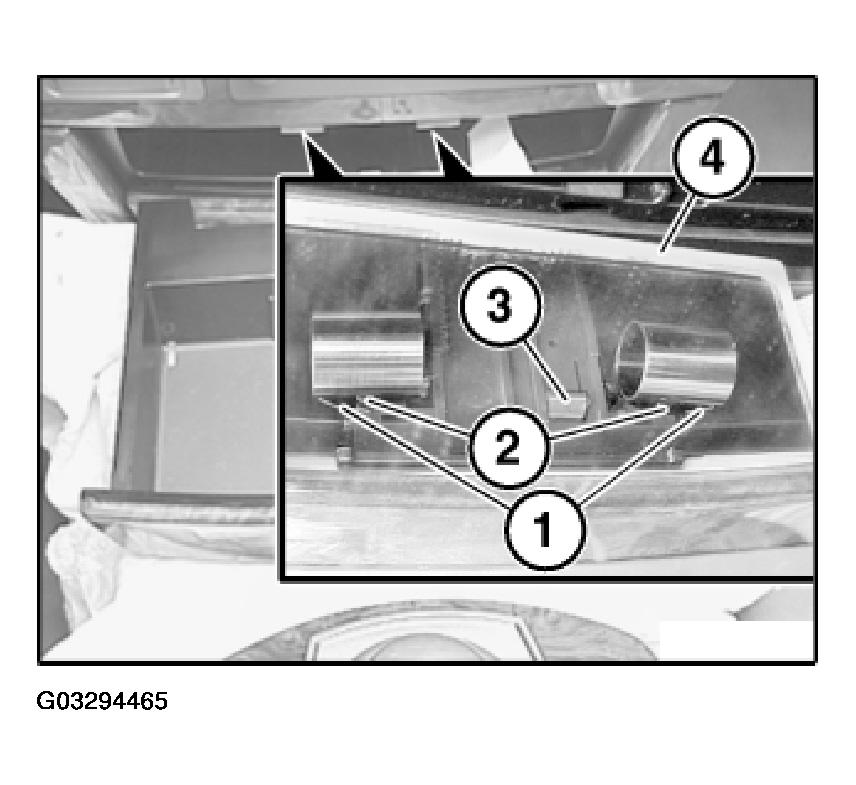

NOTE: A hand mirror (4) will be required for viewing.

Installation:

Springs (1) must be correctly connected in mountings (2).

Catch (3) must not be damaged.

Fig 7: View Of Springs In Mountings

G03294465

Courtesy of BMW OF NORTH AMERICA, INC.
