61 35 795 Removing and installing (replacing) control unit for adaptive headlight

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

Remove trim for instrument panel, bottom left

Unlock catch (1) in direction of arrow.

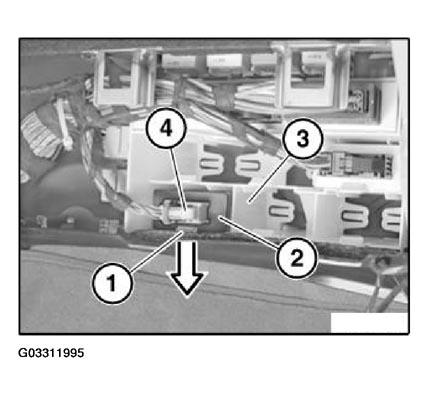

Fig 1: Removing Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Pull control unit for adaptive headlight (2) out of equipment carrier (3) slightly.

Unfasten plug connection (4) and disconnect.

Remove control unit for adaptive headlight (2).

Replacement:

Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .
