61 71 061 Replacing Fluid Reservoir For Windshield Washer System

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Drain fluid tank for windshield washer system.

Necessary preliminary tasks:

Pull out windshield washer pump (unlock and disconnect plug connection). Refer to 61 71 100 REMOVING AND INSTALLING/REPLACING WINDSHIELD WASHER PUMP .
Pull out window washer pump for rear window cleaning system (unlock and disconnect plug connection). Refer to 61 62 150 REMOVING AND INSTALLING/REPLACING WINDOW WASHER PUMP FOR REAR WINDOW WASHER SYSTEM .
If necessary, pull out washer pump of headlight cleaning system (unlock and disconnect plug connection). Refer to 61 67 010 REMOVING AND INSTALLING/REPLACING WASHER PUMP OF HEADLIGHT CLEANING SYSTEM .

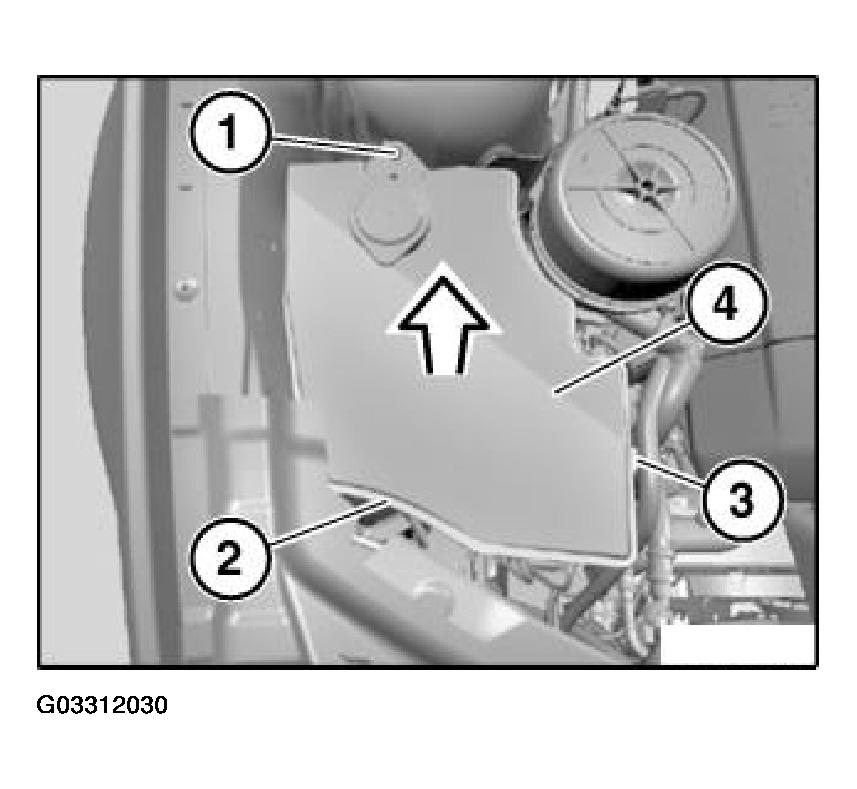

Unscrew bolt (1).

Fig 1: Removing Fluid Reservoir

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect level switch plug connection on windshield washer system (2).

If necessary, unclip hose (3).

Remove fluid reservoir for windshield washer system (4) in direction of arrow.

Installation:

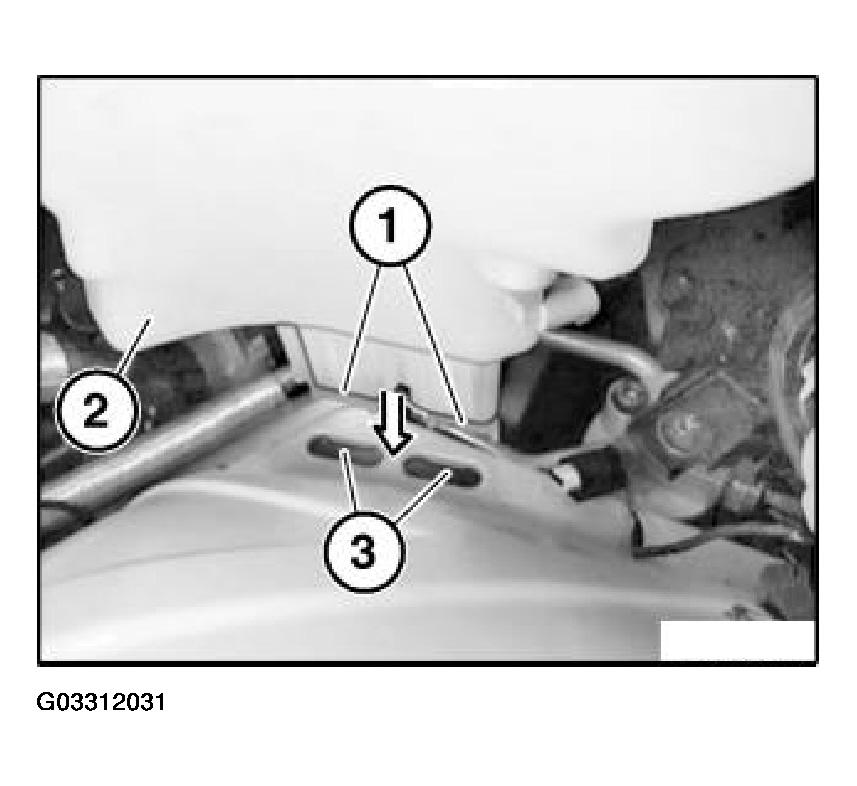

Feed guide (1) of fluid reservoir for windshield washer system (2) in direction of arrow into mountings (3).

Fig 2: Feeding Guide Of Fluid Reservoir

Courtesy of BMW OF NORTH AMERICA, INC.

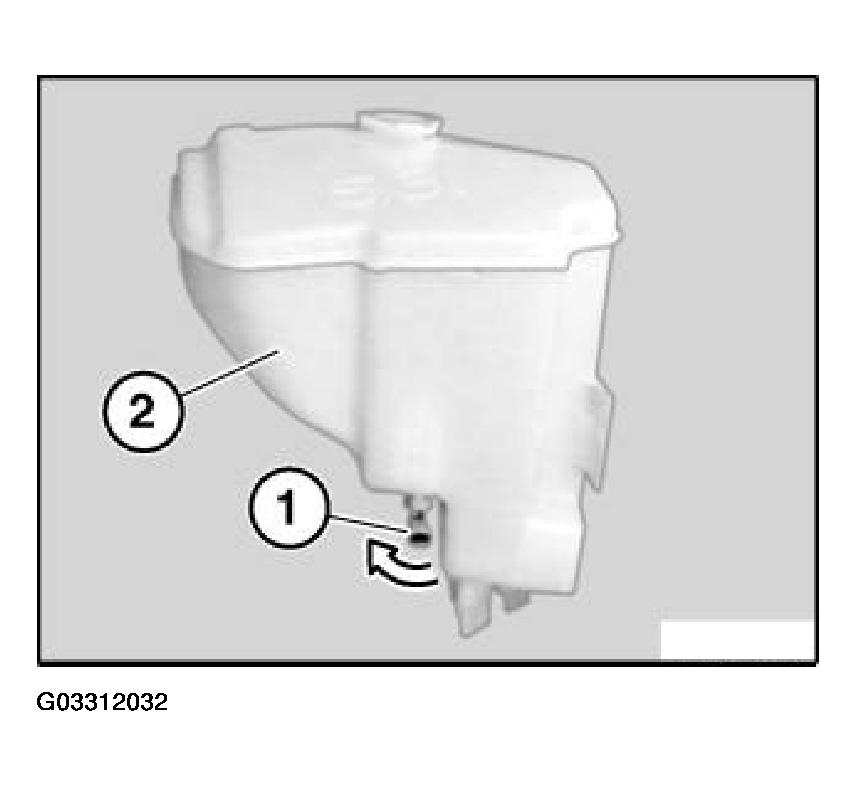

Turn level switch for windshield washer system (1) in direction of arrow, remove downwards from water reservoir for windshield washer system (2) and place to one side.

Fig 3: Removing Windshield Washer System Components

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover and strainer from water reservoir for windshield washer system.

Installation:

Replace sealing rings/strainers on washer pumps.

Coat sealing rings of washer pump with anti-friction agent.

Make sure hoses are laid without kinks.

Fill fluid tank for windshield washer system.
