Removal & Installation of Quick-Release Coupling with ID Marking
WARNING: This page does not describe the selected car, but rather 48 other vehicles, including the 2006 BMW M3, 2006 BMW 330xi, 2006 BMW 330Ci, 2006 BMW 325xi, and 2006 BMW 325Ci. However, it is still accessible from the selected car via links, so may be relevant.

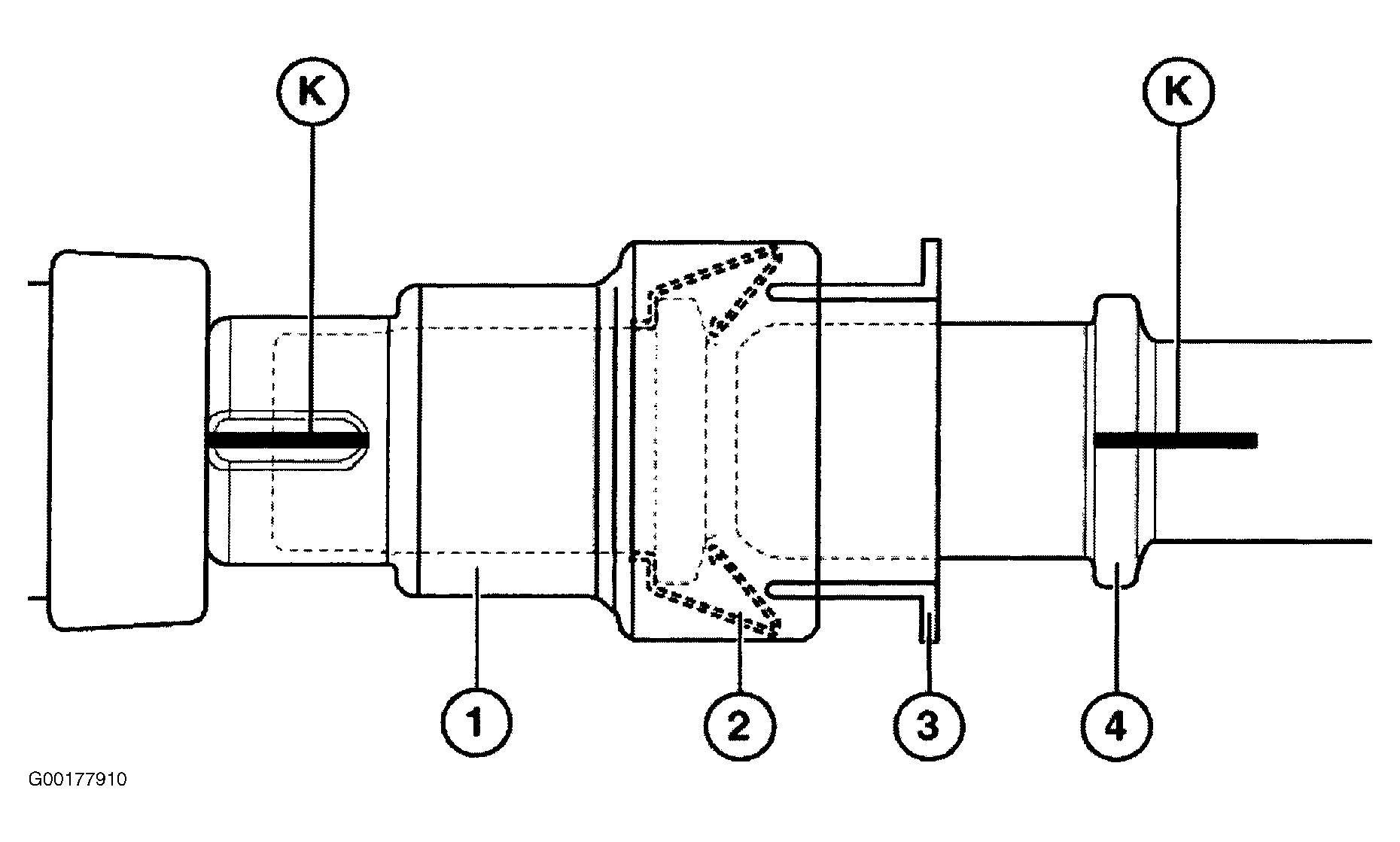

- Push quick-release coupling (1) against pipe (4) thereby relieving strain on spring (2). Press plastic ring (3) into quick-release coupling (1) and remove coupling (1). See Fig 1.
- To install, markings (K) on coupling and pipe (4) must be flush. Push quick-release coupling (1) onto pipe (4) until a "click" can be heard. To check that quick-release coupling has been installed correctly, pull it back forcefully.
